Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32926C3475K000CAP FILM 4.7UF 10% 630VDC RADIAL |
4,207 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
F17733102000CAP FILM 10000PF 20% 630VDC AXL |
1,285 |
|
Datasheet |
Axial | 10000 pF | ±20% | 253V | 630V | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.236" Dia x 0.748" L (6.00mm x 19.00mm) | - | PC Pins | - | EMI, RFI Suppression | X2 | - |
|
B32524Q1106K000CAP FILM 10UF 10% 100VDC RADIAL |
1,745 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32774D8505K000CAP FILM 5UF 10% 800VDC RADIAL |
2,159 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 15.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|

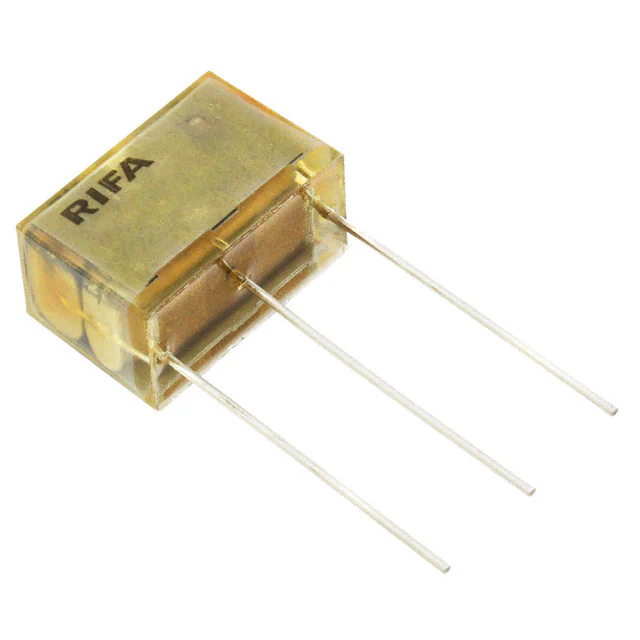

PZB300MC13R30CAP FILM 0.1UF 20% 275VAC RADIAL |
606 |
|
Datasheet |
Radial - 3 Leads | 0.1 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.492" W (24.00mm x 12.50mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | EMI, RFI Suppression | - | - |
|
R46KR447050M2KCAP FILM 4.7UF 10% 560VDC RADIAL |
3,018 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

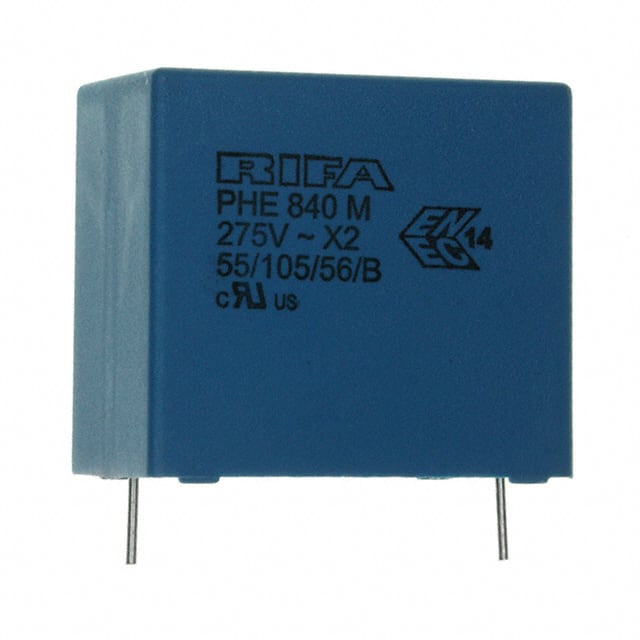

PHE840MZ7220MF14R06L2CAP FILM 2.2UF 20% 760VDC RADIAL |
1,126 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32776Z8156K000FILM CAP MKP DC FILTERING - 800V |
1,334 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
106MMR250KCAP FILM 10UF 10% 250VDC RADIAL |
1,562 |
|
Datasheet |
Radial | 10 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.650" W (31.00mm x 16.50mm) | 1.043" (26.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
F17724472000CAP FILM SUPPRESSION |
160 |
|
Datasheet |
Radial | 470000 pF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
225P22491XD3CAP FILM 0.22UF 10% 100VDC RAD |
503 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.461" W (20.30mm x 11.70mm) | 0.701" (17.80mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
PMR209ME6220M470R30CAP FILM 0.22UF 20% 630VDC RAD |
136 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 250V | 630V | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
C4AQLBU5100A1XKCAP FILM 10UF 10% 500VDC RADIAL |
438 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE450MD6330JR06L2CAP FILM 0.33UF 5% 630VDC RADIAL |
506 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
MKS2B051001N00JO00CAP FILM 10UF 5% 50VDC RADIAL |
511 |
|
Datasheet |
Radial | 10 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.433" W (7.20mm x 11.00mm) | 0.630" (16.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

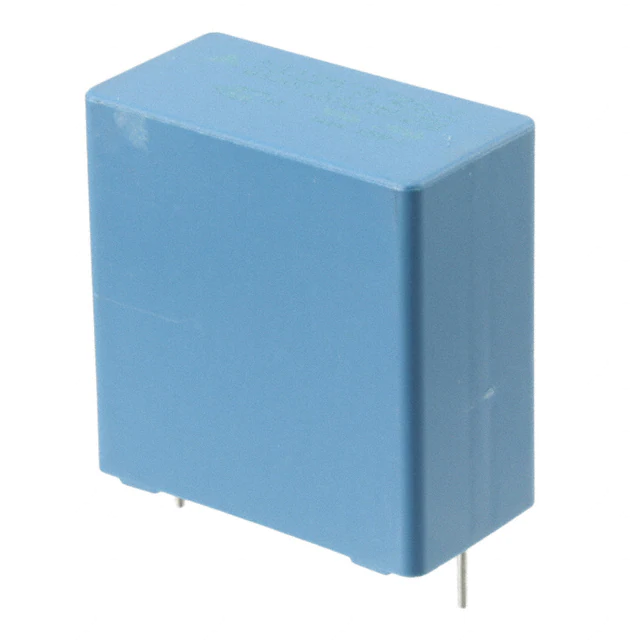

B32024C3474M000CAP FILM 0.47UF 20% 1.5KVDC RAD |
1,038 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
SMC7.3224J50K37TR12CAP FILM 0.22UF 5% 50VDC 2824 |
513 |
|
Datasheet |
2824 (7260 Metric) | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.177" (4.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
225P10494XD3CAP FILM 0.1UF 10% 400VDC RADIAL |
736 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.520" W (20.30mm x 13.20mm) | 0.839" (21.30mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
715P10452LD3CAP FILM 0.1UF 5% 200VDC RADIAL |
94 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382" Dia x 1.252" L (9.70mm x 31.80mm) | 0.693" (17.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
R474R415050A1KV057CAP FILM 1.5UF 10% 1KVDC RADIAL |
835 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
