Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32524Q3106KCAP FILM 10UF 10% 250VDC RADIAL |
292 |
|
Datasheet |
Radial | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
105PHC600KCAP FILM 1UF 10% 600VDC AXIAL |
1,014 |
|
Datasheet |
Axial | 1 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 6.1 mOhms | -40°C ~ 85°C | Through Hole | 0.689" Dia x 1.339" L (17.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
106MWR100KCAP FILM 10UF 10% 100VDC AXIAL |
340 |
|
Datasheet |
Axial | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | 177 mOhms | -40°C ~ 105°C | Through Hole | 0.709" Dia x 1.339" L (18.00mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
PHE450RF6150JR06L2CAP FILM 0.15UF 5% 1.6KVDC RAD |
488 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
R413W41004000MCAP FILM 1UF 20% 1KVDC RADIAL |
157 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
940C20S22K-FCAP FILM 0.022UF 10% 2KVDC AXIAL |
797 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 35 mOhms | -55°C ~ 105°C | Through Hole | 0.453" Dia x 1.339" L (11.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
25283CAP FILM 4700PF 20% 250VAC SMD |
377 |
|
Datasheet |
Nonstandard SMD | 4700 pF | ±20% | 250V | - | - | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | General Purpose | - | - |
_06x00KSSD.jpg)
|
MKP1J041006G00KSSDCAP FILM 1UF 10% 630VDC RAD |
339 |
|
Datasheet |
Radial | 1 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
LDEEF4220KA0N00CAP FILM 2.2UF 10% 100VDC 4030 |
491 |
|
Datasheet |
4030 (10276 Metric) | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.220" (5.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE844RF6470MR06L2CAP FILM 0.47UF 20% 1KVDC RADIAL |
124 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC241673304CAP FILM 0.33UF 2% 63VDC RADIAL |
4,246 |
|
Datasheet |
Radial | 0.33 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
MKP1839510161CAP FILM 1UF 1% 160VDC AXIAL |
776 |
|
Datasheet |
Axial | 1 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.413" Dia x 1.043" L (10.50mm x 26.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839510634HQCAP FILM 1UF 5% 630VDC AXIAL |
2,678 |
|
Datasheet |
Axial | 1 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.630" Dia x 1.240" L (16.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1839210631CAP FILM 1000PF 1% 630VDC AXIAL |
1,733 |
|
Datasheet |
Axial | 1000 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
MKP1U032207E00JSSDCAP FILM 0.22UF 5% 2KVDC RAD |
122 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
715P47352KD3CAP FILM 0.047UF 5% 200VDC RAD |
5,972 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339" Dia x 0.902" L (8.60mm x 22.90mm) | 0.654" (16.60mm) | PC Pins | 0.374" (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P10456LD3CAP FILM 0.1UF 5% 600VDC RADIAL |
5,841 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.709" Dia x 1.252" L (18.00mm x 31.80mm) | 1.008" (25.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4AQQBU4800A12JCAP FILM 8UF 5% 1.1KVDC RADIAL |
1,776 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

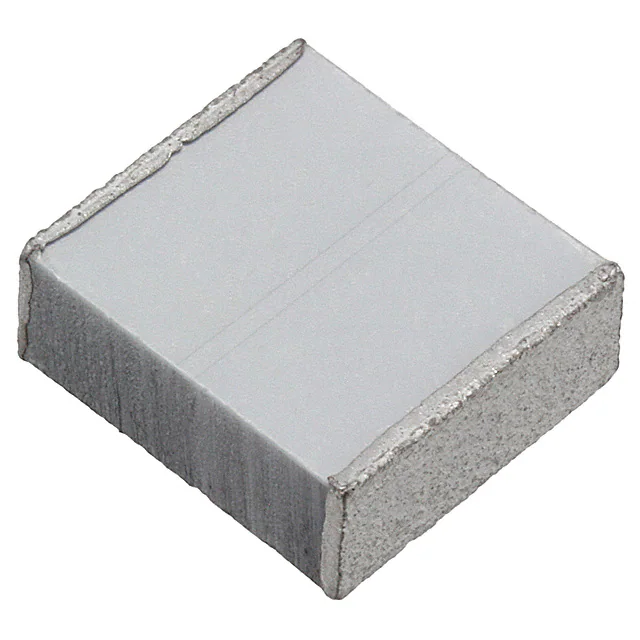

CB182G0105JBCCAP FILM 1UF 5% 250VDC 6054 |
698 |
|
Datasheet |
6054 (153137 Metric) | 1 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.236" (6.00mm) | Solder Pads | - | General Purpose | - | - |
|

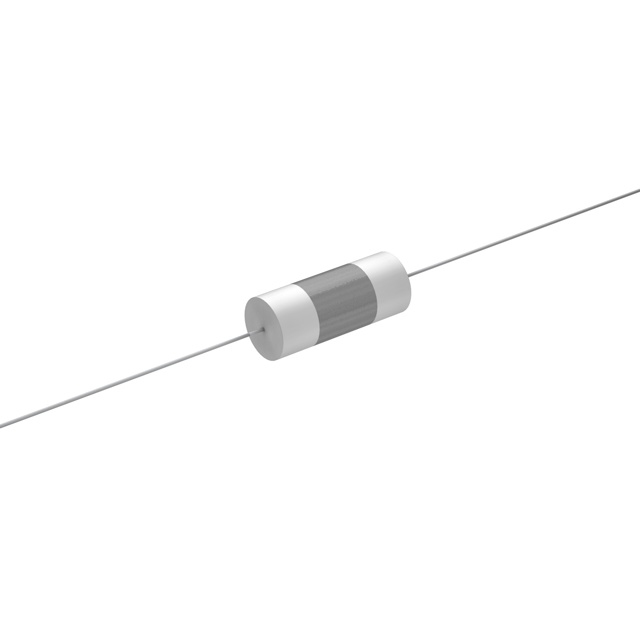

150225K100LECAP FILM 2.2UF 10% 100VDC AXIAL |
7,238 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.453" Dia x 1.102" L (11.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
