Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP4J041506F00JSSDCAP FILM 1.5UF 5% 630VDC RAD |
347 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 280V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
ECW-U2474KCVCAP FILM 0.47UF 10% 250VDC 3931 |
1,523 |
|
Datasheet |
3931 (9880 Metric) | 0.47 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.315" W (9.80mm x 8.00mm) | 0.217" (5.50mm) | Solder Pads | - | General Purpose | - | - |
|
MKP1839422084HQCAP FILM 0.22UF 5% 850VDC AXIAL |
710 |
|
Datasheet |
Axial | 0.22 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.453" Dia x 1.240" L (11.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
ECQ-E1106JFCAP FILM 10UF 5% 100VDC RADIAL |
438 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
16MU155MA23216CAP FILM 1.5UF 20% 16VDC 1206 |
7,474 |
|
Datasheet |
1206 (3216 Metric) | 1.5 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
16MU105MA23216CAP FILM 1UF 20% 16VDC 1206 |
1,344 |
|
Datasheet |
1206 (3216 Metric) | 1 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
R46KR447040P1MCAP FILM 4.7UF 20% 560VDC RAD |
871 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

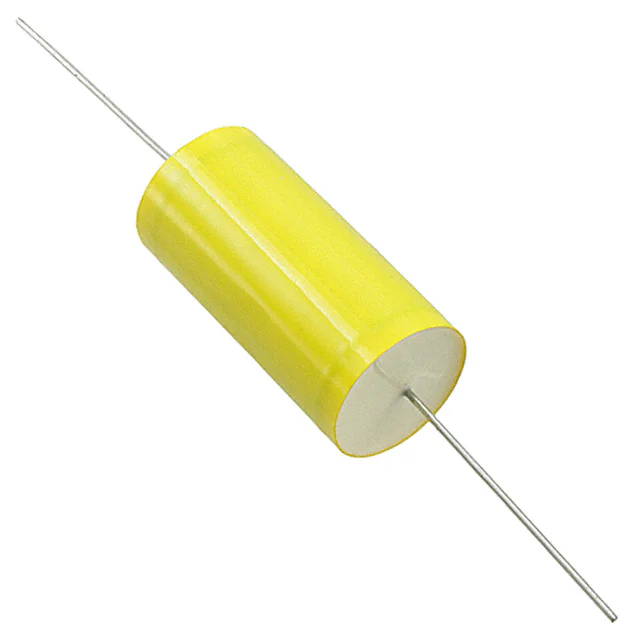

C4GAFUB4100AA0JCAP FILM 1UF 5% 400VDC AXIAL |
404 |
|
Datasheet |
Axial | 1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 8.3 mOhms | -40°C ~ 85°C | Through Hole | 0.472" Dia x 1.299" L (12.00mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
R46KR447050P1MCAP FILM 4.7UF 20% 560VDC RAD |
277 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKS4B046803G00JSSDCAP FILM 6.8UF 5% 50VDC RADIAL |
3,227 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

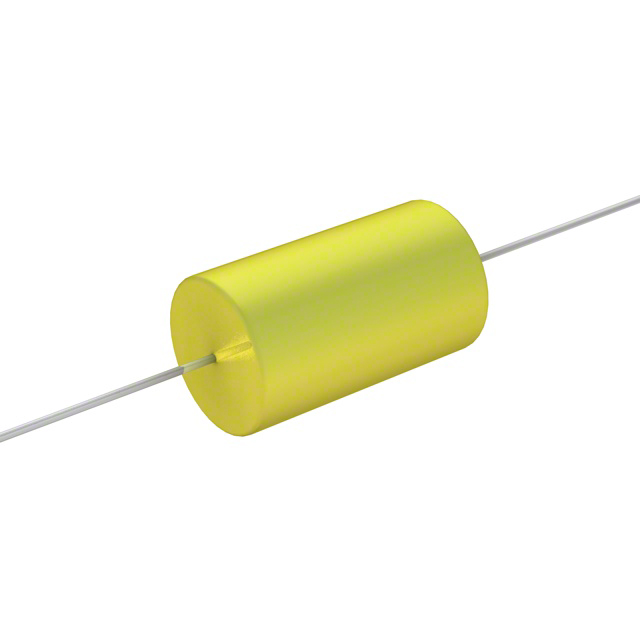

WMC08P22K-FCAP FILM 0.22UF 10% 80VDC AXIAL |
1,646 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.382" Dia x 0.657" L (9.70mm x 16.70mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|

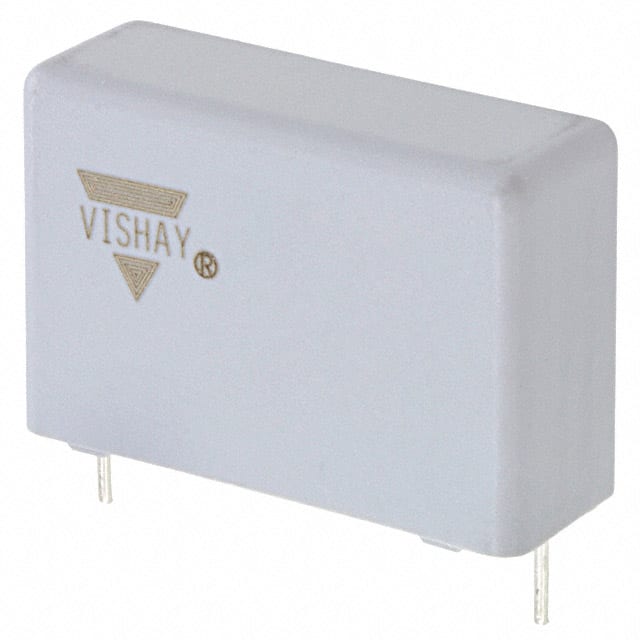

MKP1847510354K2CAP FILM 1UF 5% 700VDC RADIAL |
1,629 |
|
Datasheet |
Radial | 1 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
PHC1254400KJCAP FILM 4UF 10% 250VDC AXIAL |
378 |
|
Datasheet |
Axial | 4 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.591" Dia x 1.260" L (15.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|

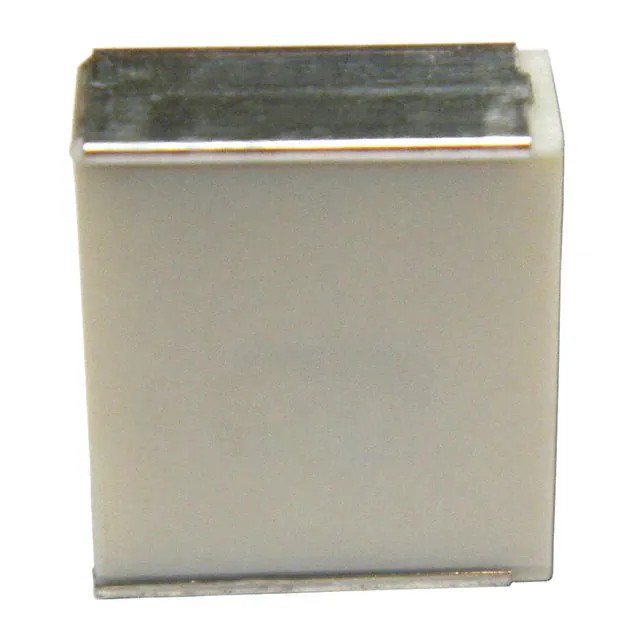

F161YR334K250VCAP FILM 0.33UF 10% 250VDC SMD |
1,535 |
|
Datasheet |
Nonstandard | 0.33 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
FKP1J032207D00KSSDCAP FILM 0.22UF 10% 630VDC RAD |
847 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

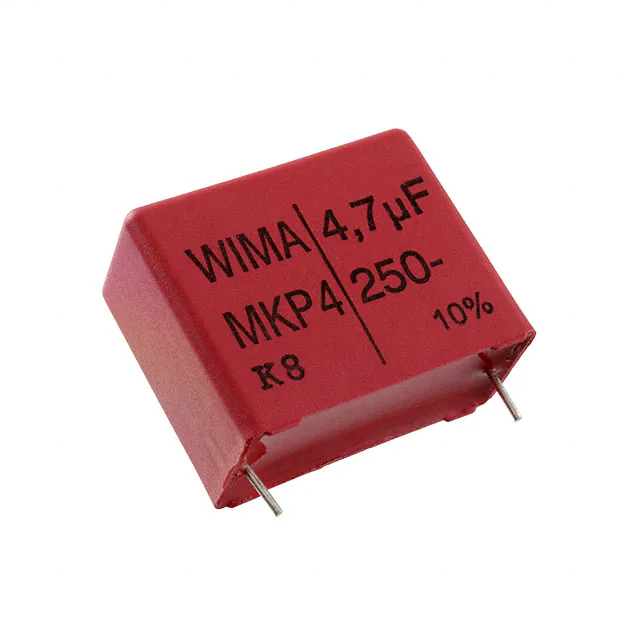

MKP4F044706F00KSSDCAP FILM 4.7UF 10% 250VDC RAD |
485 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
225P47391WD3CAP FILM 0.047UF 10% 100VDC RAD |
319 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.299" W (17.80mm x 7.60mm) | 0.421" (10.70mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
PHC1404300KJCAP FILM 3UF 10% 400VDC AXIAL |
141 |
|
Datasheet |
Axial | 3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.748" Dia x 1.260" L (19.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
PHE426KF7220JR06L2CAP FILM 2.2UF 5% 400VDC RADIAL |
153 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1839468084HQCAP FILM 0.68UF 5% 850VDC AXIAL |
1,081 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.650" Dia x 1.240" L (16.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
