Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKT1813522255GCAP FILM 2.2UF 10% 250VDC AXIAL |
1,288 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.512" Dia x 1.240" L (13.00mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
R60DN51004030KCAP FILM 10UF 10% 63VDC RADIAL |
854 |
|
Datasheet |
Radial | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|

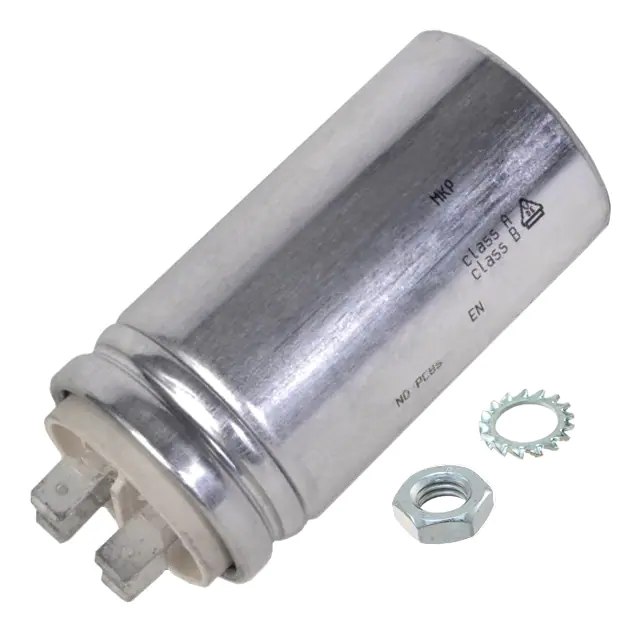

C878AF24250AA1JCAP FILM 2.5UF 5% 470VAC RADIAL |
158 |
|
Datasheet |
Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
BFC247076474CAP FILM 0.47UF 5% 63VDC RADIAL |
1,339 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.358" (9.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
225P10291WD3CAP FILM 1000PF 10% 100VDC RAD |
8,239 |
|
Datasheet |
Radial | 1000 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
ECQ-E2106KFCAP FILM 10UF 10% 250VDC RADIAL |
1,366 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 1.055" (26.80mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PHE450TD5470JD19R06L2CAP FILM 0.047UF 5% 2.5KVDC RAD |
476 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
225P47491XD3CAP FILM 0.47UF 10% 100VDC RAD |
374 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.598" W (20.30mm x 15.20mm) | 0.709" (18.00mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
MKP1839415084HQCAP FILM 0.15UF 5% 850VDC AXIAL |
2,762 |
|
Datasheet |
Axial | 0.15 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" Dia x 1.240" L (10.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1839147631CAP FILM 470PF 1% 630VDC AXIAL |
1,282 |
|
Datasheet |
Axial | 470 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
105PHC400KCAP FILM 1UF 10% 400VDC AXIAL |
219 |
|
Datasheet |
Axial | 1 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Through Hole | 0.512" Dia x 1.339" L (13.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
LDECD4100JA0N00CAP FILM 1UF 5% 50VDC 2220 |
6,681 |
|
Datasheet |
2220 (5750 Metric) | 1 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
R60DN51005030JCAP FILM 10UF 5% 63VDC RADIAL |
550 |
|
Datasheet |
Radial | 10 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
B32926C3685M000CAP FILM 6.8UF 20% 630VDC RADIAL |
4,265 |
|
Datasheet |
Radial | 6.8 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE840MZ7100MF11R06L2CAP FILM 1UF 20% 760VDC RADIAL |
7,935 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C4CAPUB3100AA0JCAP FILM 0.1UF 5% 1.2KVDC AXIAL |
3,142 |
|
Datasheet |
Axial | 0.1 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 13.4 mOhms | -40°C ~ 85°C | Through Hole | 0.551" Dia x 1.299" L (14.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C276CC24250AA0JCAP FILM 2.5UF 5% 470VAC RADIAL |
407 |
|
Datasheet |
Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
R49AR422000B1MCAP FILM 2.2UF 20% 800VDC RADIAL |
380 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC241942003CAP FILM 0.02UF 2% 400VDC RADIAL |
1,002 |
|
Datasheet |
Radial | 0.02 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
B32674D6335K000CAP FILM 3.3UF 10% 630VDC RADIAL |
5,463 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
