Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS4B051004J00MSSDCAP FILM 10UF 20% 50VDC RADIAL |
1,420 |
|
Datasheet |
Radial | 10 µF | ±20% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1T034707F00KSSDCAP FILM 0.47UF 10% 1.6KVDC RAD |
361 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
F339X146848MKP2T0CAP FILM 0.68UF 20% 1KVDC RADIAL |
1,480 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
.JPG)
|
334PPB630KCAP FILM 0.33UF 10% 630VDC RAD |
1,877 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
MKP1W032207F00KSSDCAP FILM 0.22UF 10% 3KVDC RADIAL |
596 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 700V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
C274AC24600AA0JCAP FILM 6UF 5% 470VAC RADIAL |
160 |
|
Datasheet |
Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
B32754C8355K000CAP FILM 3.5UF 10% 600VDC RADIAL |
556 |
|
Datasheet |
Radial | 3.5 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
MKY22W41006J00KSSDCAP FILM 1UF 10% 300VAC RADIAL |
672 |
|
Datasheet |
Radial | 1 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.787" W (31.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
942C16S47K-FCAP FILM 0.047UF 1.6KVDC AXIAL |
158 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 0.650" Dia x 1.339" L (16.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
BFC233810105CAP FILM 1UF 20% 1KVDC RADIAL |
144 |
|
Datasheet |
Radial | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

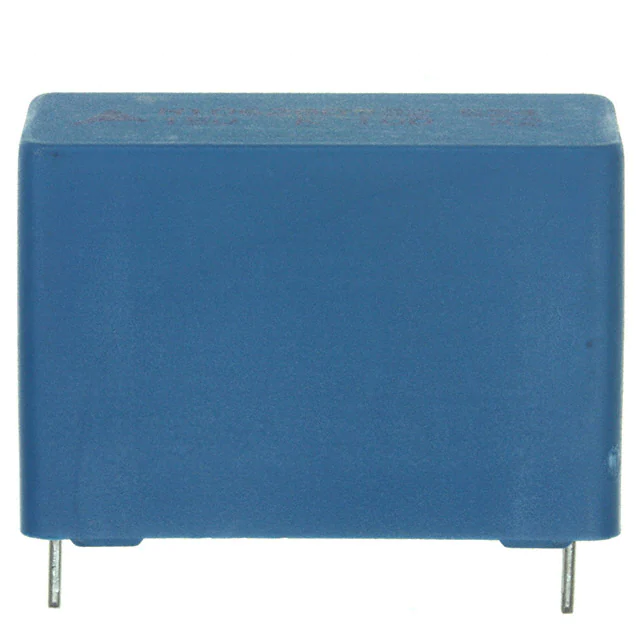

B32524Q1156K000CAP FILM 15UF 10% 100VDC RADIAL |
1,358 |
|
Datasheet |
Radial | 15 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
305PHC400KCAP FILM 3UF 10% 400VDC AXIAL |
8,720 |
|
Datasheet |
Axial | 3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.827" Dia x 1.339" L (21.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
475PHC400KCAP FILM 4.7UF 10% 400VDC AXIAL |
1,738 |
|
Datasheet |
Axial | 4.7 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 85°C | Through Hole | 0.866" Dia x 1.811" L (22.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
C4AQNLW5100M36JCAP FILM 10UF 5% 1KVDC RADIAL |
246 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 7.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 0.953" (24.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
942C16P1K-FCAP FILM 0.1UF 10% 1.6KVDC AXIAL |
2,508 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 0.886" Dia x 1.339" L (22.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
R76UR3100SE30KCAP FILM 0.1UF 10% 2KVDC RADIAL |
5,445 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R463W510050M1KCAP FILM 10UF 10% 630VDC RADIAL |
599 |
|
Datasheet |
Radial | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
715P22356KD3CAP FILM 0.022UF 5% 600VDC RAD |
2,668 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.480" Dia x 0.902" L (12.20mm x 22.90mm) | 0.772" (19.60mm) | PC Pins | 0.374" (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C276CCF4200LG0JCAP FILM 2UF 5% 470VAC RADIAL |
140 |
|
Datasheet |
Radial, Can | 2 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.382" (60.50mm) | Wire Leads | - | Motor Run | - | - |
|
LDEDF4330KA0N00CAP FILM 3.3UF 10% 63VDC 4030 |
2,837 |
|
Datasheet |
4030 (10276 Metric) | 3.3 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.185" (4.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
