Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4205HLCAP FILM 2UF 3% 400VDC RADIAL |
617 |
|
Datasheet |
Radial | 2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.630" W (28.00mm x 16.00mm) | 0.969" (24.60mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
MKP1F042206F00KSSDCAP FILM 2.2UF 10% 250VDC RAD |
1,707 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC233820105CAP FILM 1UF 20% 630VDC RADIAL |
960 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

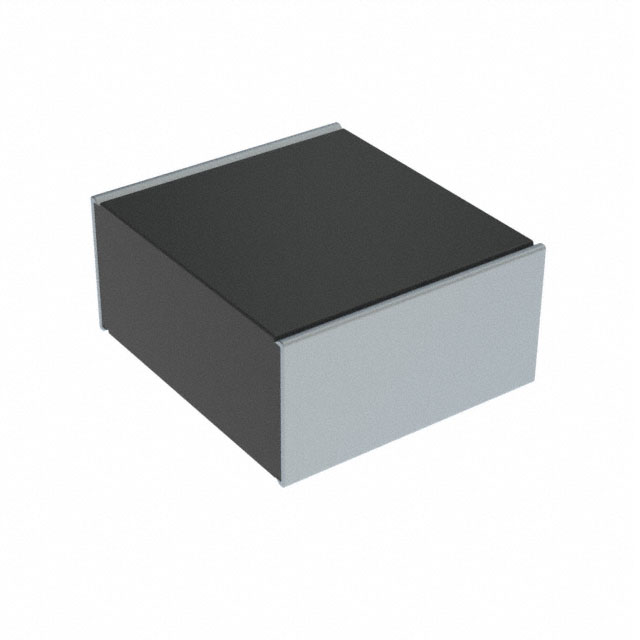

SMDTF04100YA00JT00CAP FILM 1UF 5% 160VAC 6054 |
811 |
|
Datasheet |
6054 (153137 Metric) | 1 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.287" (7.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
KP1830110631CAP FILM 100PF 1% 630VDC RADIAL |
1,512 |
|
Datasheet |
Radial | 100 pF | ±1% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

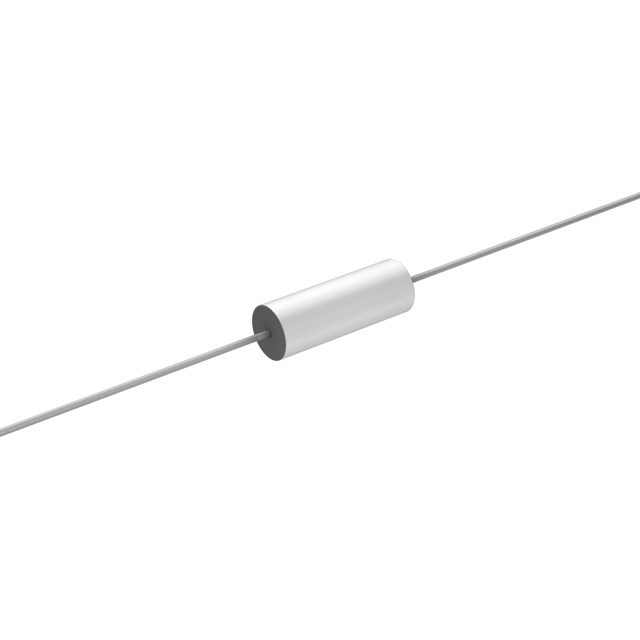

WMF1D47K-FCAP FILM 4700PF 10% 100VDC AXIAL |
488 |
|
Datasheet |
Axial | 4700 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.197" Dia x 0.563" L (5.00mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKT1813547065CAP FILM 4.7UF 10% 63VDC AXIAL |
330 |
|
Datasheet |
Axial | 4.7 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.453" Dia x 1.043" L (11.50mm x 26.50mm) | - | PC Pins | - | General Purpose | - | - |
|

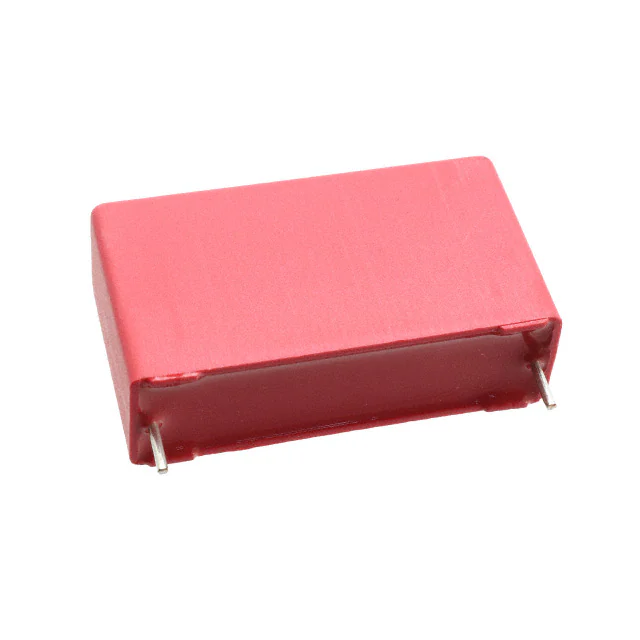

MKP1W031007C00KSSDCAP FILM 0.1UF 10% 3KVDC RADIAL |
171 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 700V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
BFC237520104CAP FILM 0.1UF 5% 1KVDC RADIAL |
1,459 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.413" W (30.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
715P47396LA3CAP FILM 0.047UF 10% 600VDC RAD |
997 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 1.031" (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
MKP1839510164CAP FILM 1UF 5% 160VDC AXIAL |
2,147 |
|
Datasheet |
Axial | 1 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.413" Dia x 1.043" L (10.50mm x 26.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
R76IR415050H3JCAP FILM 1.5UF 5% 250VDC RAD |
495 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
KP1830310061CAP FILM 10000PF 1% 63VDC RADIAL |
879 |
|
Datasheet |
Radial | 10000 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
890334027030CSCAP FILM 4.7UF 10% 310VAC RADIAL |
350 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
715P47356LD3CAP FILM 0.047UF 5% 600VDC RAD |
344 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P68256JD3CAP FILM 6800PF 5% 600VDC RADIAL |
248 |
|
Datasheet |
Radial | 6800 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382" Dia x 0.701" L (9.70mm x 17.80mm) | 0.673" (17.10mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
SMDIC04100TB00KQ00CAP FILM 1UF 10% 63VDC 2824 |
2,708 |
|
Datasheet |
2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
942C20S1K-FCAP FILM 10000PF 10% 2KVDC AXIAL |
2,044 |
|
Datasheet |
Axial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 50 mOhms | -55°C ~ 105°C | Through Hole | 0.472" Dia x 1.339" L (12.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
225P10391WD3CAP FILM 10000PF 10% 100VDC RAD |
290 |
|
Datasheet |
Radial | 10000 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.252" W (17.80mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
F863FU335K310ZCAP FILM 3.3UF 10% 630VDC RADIAL |
385 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
