Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32924C3565K000CAP FILM 5.6UF 10% 630VDC RADIAL |
528 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R60EN51004030KCAP FILM 10UF 10% 100VDC RADIAL |
311 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|

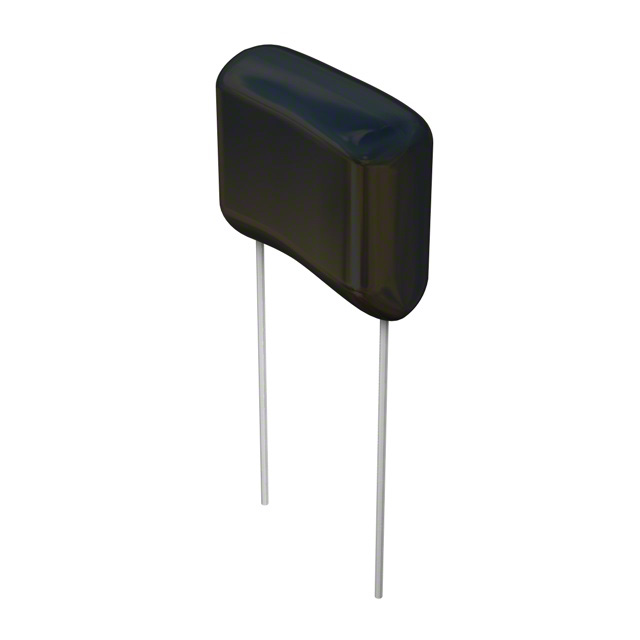

DME1W2P2K-FCAP FILM 2.2UF 10% 100VDC RADIAL |
122 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECH-U1224GCVCAP FILM 0.22UF 2% 100VDC 2825 |
2,824 |
|
Datasheet |
2825 (7163 Metric) | 0.22 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
225P68391WD3CAP FILM 0.068UF 10% 100VDC RAD |
761 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.339" W (17.80mm x 8.60mm) | 0.488" (12.40mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
MKS2B051001N00MSSDCAP FILM 10UF 20% 50VDC RADIAL |
1,297 |
|
Datasheet |
Radial | 10 µF | ±20% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.433" W (7.20mm x 11.00mm) | 0.630" (16.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
4PSP10CAP FILM 0.1UF 10% 400VDC RADIAL |
700 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.520" Dia x 1.201" L (13.20mm x 30.50mm) | 0.756" (19.20mm) | PC Pins | 0.969" (24.60mm) | Audio | - | - |
|
B32774X4106K000FILM CAP MKP DC FILTERING - 500V |
270 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 10.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32714H5106K000MKP DC FILTERING - 500VDC, 10UF |
1,606 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 6.1 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | Long Life |
|
B32914A3105M189CAP FILM 1UF 20% 760VDC RADIAL |
4,245 |
|
Datasheet |
Radial | 1 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
B32774D4505K000CAP FILM 5UF 10% 450VDC RADIAL |
12,246 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 21.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
225P10492XD3CAP FILM 0.1UF 10% 200VDC RADIAL |
1,407 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.370" W (20.30mm x 9.40mm) | 0.709" (18.00mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
35MU474KA13216CAP FILM 0.47UF 10% 35VDC 1206 |
12,643 |
|
Datasheet |
1206 (3216 Metric) | 0.47 µF | ±10% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
50MU104MA13216CAP FILM 0.1UF 20% 50VDC 1206 |
3,327 |
|
Datasheet |
1206 (3216 Metric) | 0.1 µF | ±20% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
63MU104MA13216CAP FILM 0.1UF 20% 63VDC 1206 |
2,587 |
|
Datasheet |
1206 (3216 Metric) | 0.1 µF | ±20% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
50MU334KA23216CAP FILM 0.33UF 10% 50VDC 1206 |
523 |
|
Datasheet |
1206 (3216 Metric) | 0.33 µF | ±10% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
940C6P1K-FCAP FILM 0.1UF 10% 600VDC AXIAL |
5,216 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.354" Dia x 1.339" L (9.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32654A6155J000CAP FILM 1.5UF 5% 630VDC RADIAL |
570 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
FKP1Y021507C00KSSDFKP 1 0.015UF 6000 VDC 13X24X41. |
445 |
|
Datasheet |
- | 0.015 µF | ±10% | - | 6000V (6kV) | - | - | - | - | 1.634" L x 0.512" W (41.50mm x 13.00mm) | - | - | - | - | - | - |
|
B32024A3474M000CAP FILM 0.47UF 20% 1.5KVDC RAD |
1,432 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
