Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848510094K2CAP FILM 1UF 5% 900VDC RADIAL |
4,085 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 88 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
418P25496MB3CAP FILM 0.25UF 10% 600VDC RAD |
636 |
|
Datasheet |
Radial | 0.25 µF | ±10% | - | 600V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" Dia x 1.598" L (20.30mm x 40.60mm) | 1.035" (26.30mm) | PC Pins | 1.343" (34.10mm) | Audio | - | - |
|
B32654A4225K000CAP FILM 2.2UF 10% 400VDC RADIAL |
401 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
225P10391WA2CAP FILM 10000PF 10% 100VDC RAD |
318 |
|
Datasheet |
Radial | 10000 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.563" (14.30mm) | Audio; DC Link, DC Filtering | - | - |
|
R82CC4470AA30JCAP FILM 4.7UF 5% 50VDC RADIAL |
4,137 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

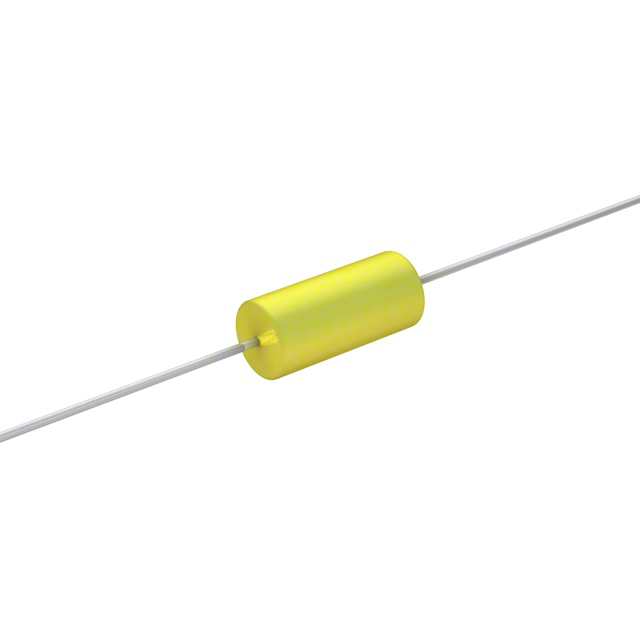

WMC08S1K-FCAP FILM 10000PF 10% 80VDC AXIAL |
1,649 |
|
Datasheet |
Axial | 10000 pF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185" Dia x 0.406" L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
KP1830210631CAP FILM 1000PF 1% 630VDC RADIAL |
476 |
|
Datasheet |
Radial | 1000 pF | ±1% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP1839410134HQCAP FILM 0.1UF 5% 1.6KVDC AXIAL |
4,308 |
|
Datasheet |
Axial | 0.1 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.413" Dia x 1.240" L (10.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32523R0106K000CAP FILM 10UF 10% 63VDC RADIAL |
401 |
|
Datasheet |
Radial | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
KP1830215631CAP FILM 1500PF 1% 630VDC RADIAL |
3,869 |
|
Datasheet |
Radial | 1500 pF | ±1% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
158X104CAP FILM 0.1UF 20% 275VAC RADIAL |
29,250 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.669" L x 0.315" W (17.00mm x 8.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
 Series Straight 23x11.jpg)
|
ECW-F2395JACAP FILM 3.9UF 5% 250VDC RADIAL |
2,068 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.531" W (23.80mm x 13.50mm) | 0.819" (20.80mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
CB057D0105JBCCAP FILM 1UF 5% 63VDC 2824 |
1,389 |
|
Datasheet |
2824 (7260 Metric) | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.185" (4.70mm) | - | - | General Purpose | - | Low ESR, Low ESL |
|
CB162D0225JBCCAP FILM 2.2UF 5% 63VDC 4030 |
1,901 |
|
Datasheet |
4030 (10276 Metric) | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.299" W (10.50mm x 7.60mm) | 0.177" (4.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|

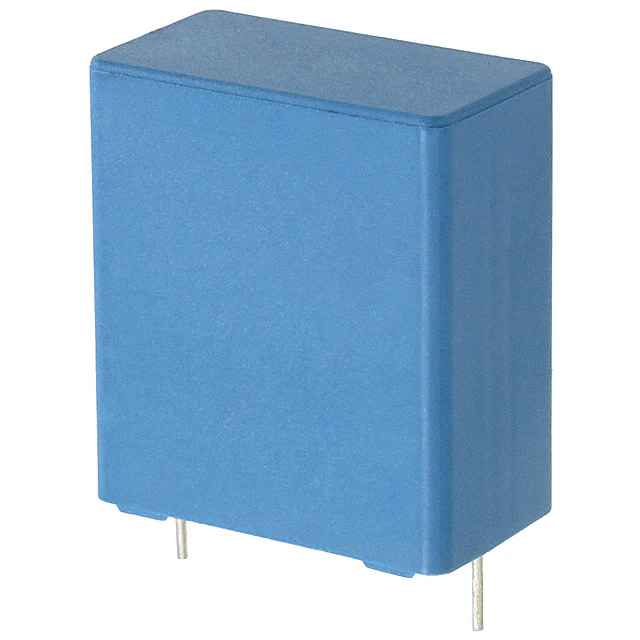

B32023A3334M000CAP FILM 0.33UF 20% 1.5KVDC RAD |
1,223 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
QXK2J225KTPCAP FILM 2.2UF 10% 630VDC RADIAL |
4,626 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201" L x 0.728" W (30.50mm x 18.50mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECQ-E1106KFBCAP FILM 10UF 10% 100VDC RADIAL |
1,598 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 1.024" (26.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
PPA2153100KJCAP FILM 0.1UF 10% 1.5KVDC AXIAL |
439 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 600V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 9.6 mOhms | -40°C ~ 85°C | Through Hole | 0.551" Dia x 1.260" L (14.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

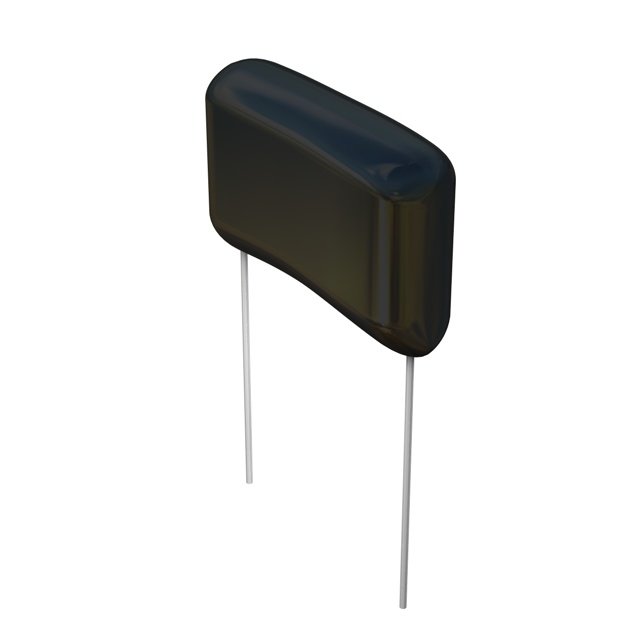

DME6P33K-FCAP FILM 0.33UF 10% 630VDC RAD |
1,196 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32774X1505K000CAP FILM 5UF 10% 1.2KVDC RADIAL |
1,058 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
