Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32654A7334J000CAP FILM 0.33UF 5% 1.25KVDC RAD |
16,121 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
MKP1T032206F00KSSDCAP FILM 0.22UF 10% 1.6KVDC RAD |
900 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
R82CC4470Z330JCAP FILM 4.7UF 5% 50VDC RADIAL |
4,933 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
715P47256JD3CAP FILM 4700PF 5% 600VDC RADIAL |
1,101 |
|
Datasheet |
Radial | 4700 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339" Dia x 0.701" L (8.60mm x 17.80mm) | 0.634" (16.10mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1U031506F00KSSDCAP FILM 0.15UF 10% 2KVDC RAD |
825 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
R75TR32204040JCAP FILM 0.22UF 5% 1.6KVDC RAD |
476 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
825MMR100KCAP FILM 8.2UF 10% 100VDC RADIAL |
154 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32033A4224M000CAP FILM 0.22UF 20% 1KV RADIAL |
2,828 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|

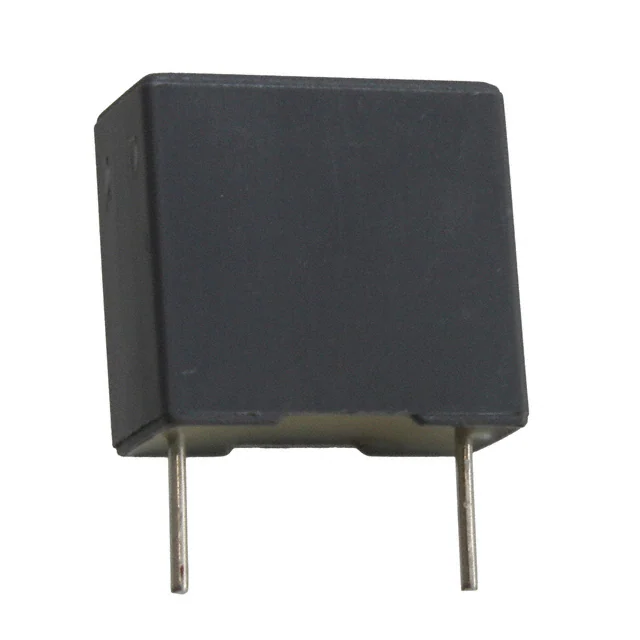

F43MN3500ZA01KCAP FILM 0.5UF 10% 400VDC RADIAL |
410 |
|
Datasheet |
Radial | 0.5 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Snubber | - | - |
|

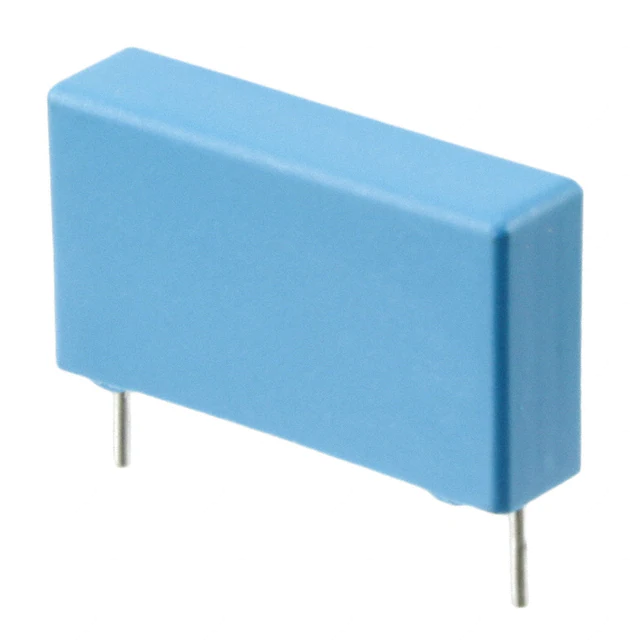

PHE450PD6100JR06L2CAP FILM 0.1UF 5% 1KVDC RADIAL |
247 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
715P10256JD3CAP FILM 1000PF 5% 600VDC RADIAL |
1,457 |
|
Datasheet |
Radial | 1000 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.350" Dia x 0.701" L (8.90mm x 17.80mm) | 0.642" (16.30mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
225P33391WD3CAP FILM 0.033UF 10% 100VDC RAD |
685 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.272" W (17.80mm x 6.90mm) | 0.370" (9.40mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
KP1830147631CAP FILM 470PF 1% 630VDC RADIAL |
263 |
|
Datasheet |
Radial | 470 pF | ±1% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FKP1Y021006F00JSSDCAP FILM 10000PF 5% 6KVDC RAD |
933 |
|
Datasheet |
Radial | 10000 pF | ±5% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E2825JFCAP FILM 8.2UF 5% 250VDC RADIAL |
741 |
|
Datasheet |
Radial | 8.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.563" W (31.00mm x 14.30mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
DPPM20D1K-FCAP FILM 1000PF 10% 2KVDC RADIAL |
107 |
|
Datasheet |
Radial | 1000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.984" L x 0.276" W (25.00mm x 7.00mm) | 0.551" (14.00mm) | PC Pins | 0.827" (21.00mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
KP1830247251CAP FILM 4700PF 1% 250VDC RADIAL |
855 |
|
Datasheet |
Radial | 4700 pF | ±1% | 160V | 250V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6225KFCAP FILM 2.2UF 10% 630VDC RADIAL |
521 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
B32774D1155K000CAP FILM 1.5UF 10% 1.3KVDC RAD |
10,395 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 31.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32674D6225K000CAP FILM 2.2UF 10% 630VDC RADIAL |
6,165 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 12.4 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
