Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82730G3751A020CMC 3.9MH 750MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 750mA | 700mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

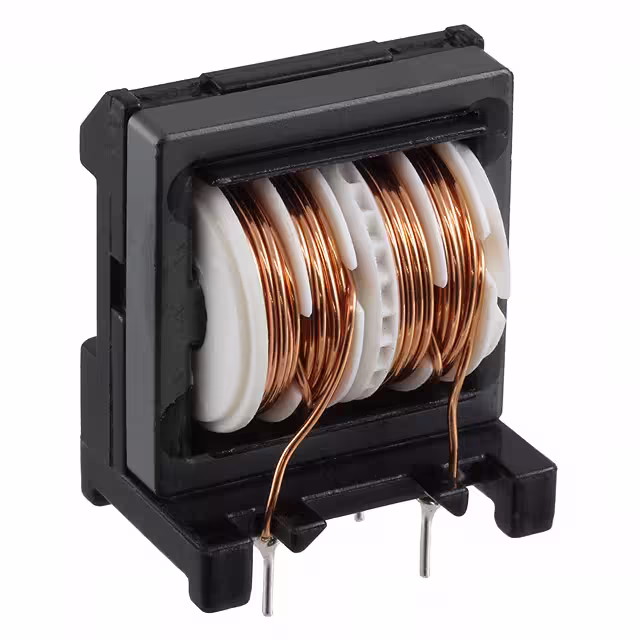

SS28V-K25075-CHCMC 7.5MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
750314981CMC 25MH 650MA 2LN TH |
8 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 25 mH @ 10 kHz | 650mA | 1.13Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS28H-R20130-CHCMC 13MH 2A 2LN TH |
6 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 13 mH @ 1 kHz | 2A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NVS-25130CMC 13MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 13 mH @ 10 kHz | 2.5A | 111mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10HS-R04620CMC 62MH 400MA 2LN TH |
17 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 62 mH @ 10 kHz | 400mA | 2.45Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
.jpg)
|
CMC20MH2W(R)CMC 17.5MH 125MA 2LN 1 KHZ TH |
0 |
|
Datasheet |
- | Power Line | 2 | - | 17.5 mH @ 1 kHz | 125mA | 2.9Ohm (Typ) | - | 310V | -40°C ~ 105°C | - | UL | - | - | - |
.jpg)
|
CMC40MH2W(R)CMC 35MH 125MA 2LN 1 KHZ TH |
0 |
|
Datasheet |
- | Power Line | 2 | - | 35 mH @ 1 kHz | 125mA | 4.2Ohm (Typ) | - | 310V | -40°C ~ 105°C | - | UL | - | - | - |
|
|
SSHB10H-30007CMC 700UH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 700 µH @ 10 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-13030CMC 3MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3 mH @ 10 kHz | 1.3A | 250mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
CMF16-104450-BCMC 100MH 450MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 450mA | 3.22Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
B82623G0001A008CMC 330UH 1A 2LN TH PFC |
12 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 1A | 400mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | PFC | - | - |
|
RN112-0.4-02-27MCMC 27MH 400MA 2LN TH |
11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.4Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SS35V-30082CMC 8.2MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 2 | - | 8.2 mH @ 1 kHz | 3A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
HCTC-1-4.8CMC 1MH 4.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
RN218-0.7-02-39MCMC 39MH 700MA 2LN TH |
5 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 700mA | - | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82721A2401N023CMC 39MH 400MA 2LN TH |
9 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS35V-40033CMC 3.3MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 4A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82721K2501N001CMC 18MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 1.4Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
DKFP-G22G-D5J0CMC 500MA 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 500mA | 3.1Ohm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
