Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-096CMC 160UH 2LN TH |
7 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 160 µH @ 100 kHz | - | 6.75mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
744834407CMC 7MH 3.5A 2LN TH |
18 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 3.5A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7119-RCCMC 4.25MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 4.25 mH @ 1 kHz | 4A | 46mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

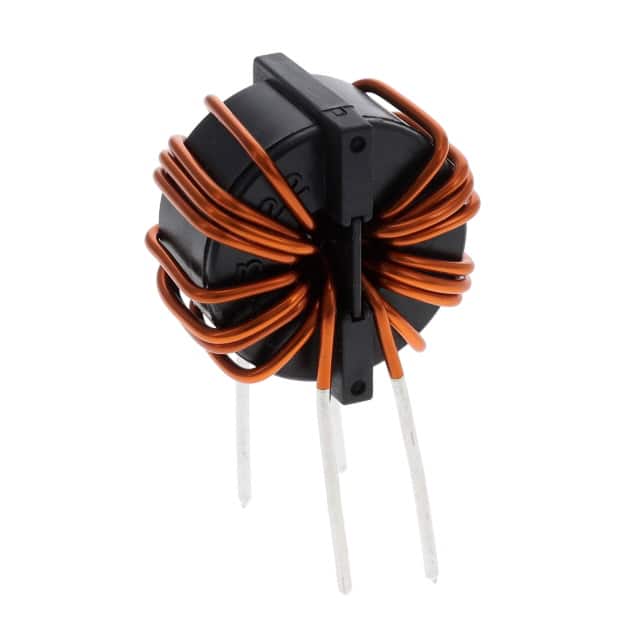

LDFL012202V6-V0ECMC 2MH 12A 2LN TH |
0 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2 mH @ 100 kHz | 12A | 7.5mOhm | 250V | - | - | - | - | - | - | - |
|
SCR25B-105-1R3A035JHCMC 3.5MH 10.5A 2LN TH |
1 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 10.5A | 17mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
EV35-5.0-02-3M6CMC 3.6MH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 400 Hz | 5A | 33mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
TCK-123CMC 1.219MH 4A 2LN TH |
23 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1.219 mH @ 100 kHz | 4A | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SCT25XV-150-1R6A010JHCMC 800UH 15A 2LN TH AEC-Q200 |
17 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 100 kHz | 15A | 4.74mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

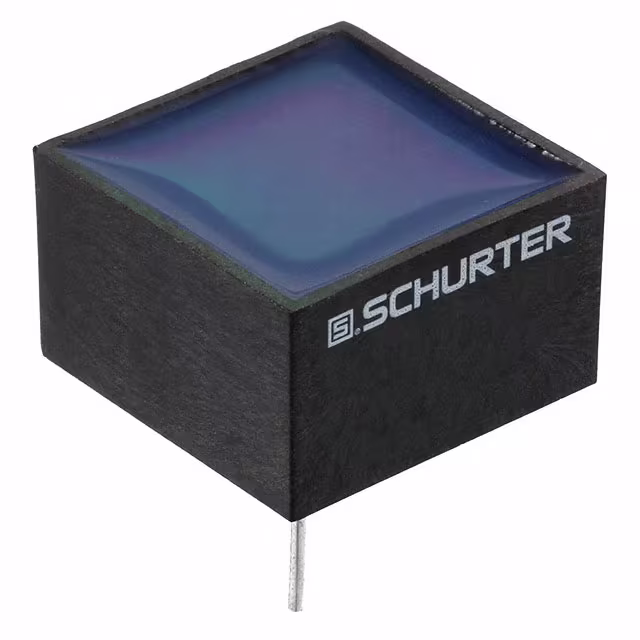

DS1-25-0001CMC 1.4A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 1.4A | 200mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-119CMC 419UH 780MA 2LN TH |
13 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 419 µH @ 10 kHz | 780mA | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
CME2425-6CMC 16MH 800MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 16 mH @ 10 kHz | 800mA | 500mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
SCR19XV-220-1R6A004JHCMC 100UH 22A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-120-1R2A007JHCMC 300UH 12A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 12A | 4.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
CMT-8111CMC 12MH 4A 2LN TH ESD |
12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
7448021230CMC 30MH 1.2A 2LN TH |
16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 1.2A | 280mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

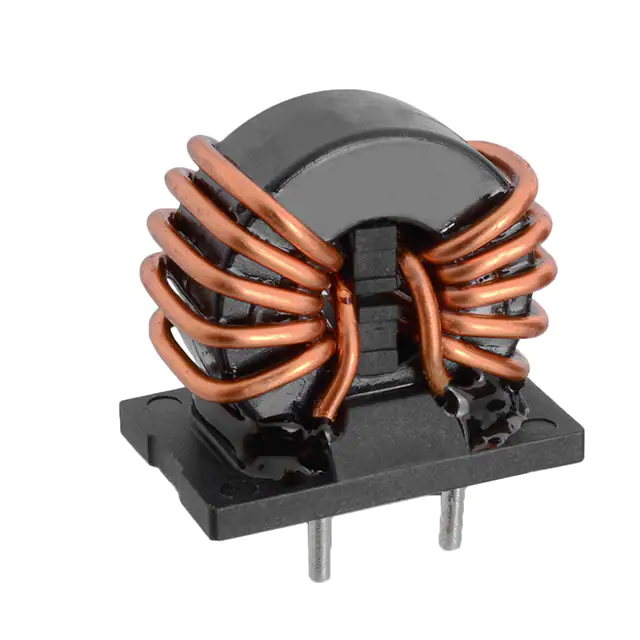

7448020680CMC 80MH 600MA 2LN TH |
15 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 80 mH @ 10 kHz | 600mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-15-E37JCMC 3.7MH 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.7 mH @ 10 kHz | 15A | 16mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF19XV-300-1R9A003JVCMC 110UH 30A 2LN TH AEC-Q200 |
5 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-100-1R1A009JHCMC 1MH 10A 2LN TH AEC-Q200 |
3 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 6.23mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-15-10JHCMC 1MH 15A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
