Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

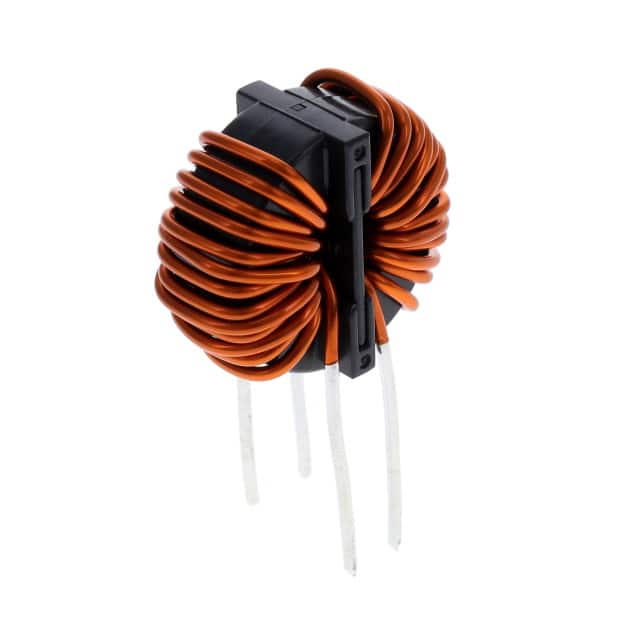

LDFL012282VD-V0ECMC 2.8MH 12A 2LN TH |
0 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2.8 mH @ 100 kHz | 12A | 9.5mOhm | 250V | - | - | - | - | - | - | - |
|
SCF19XV-190-1R5A005JVCMC 300UH 19A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 19A | 1.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-220-1R6A004JVCMC 200UH 22A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-120-1R2A007JHCMC 600UH 12A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 4.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-20-SE10JCMC 940UH 20A 3LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 940 µH @ 10 kHz | 20A | 7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-E50JHCMC 5.2MH 15A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.2 mH @ 10 kHz | 15A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR31H-225-2R0A014JCMC 1.4MH 22.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 10 kHz | 22.5A | 5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SC-10-500CMC 5MH 10A 2LN TH |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 10A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
RT8522-6-10M0CMC 10MH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 6A | 33mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
744844471CMC 470UH 9A 2LN TH |
5 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 470 µH @ 10 kHz | 9A | 16mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIV-1-3243-16D9CMC 16A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 16A | 5.7mOhm (Typ) | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
RT8122-8-8M0CMC 8MH 8A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 8A | 21mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
SCR38-350-1R8B008JCMC 850UH 35A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

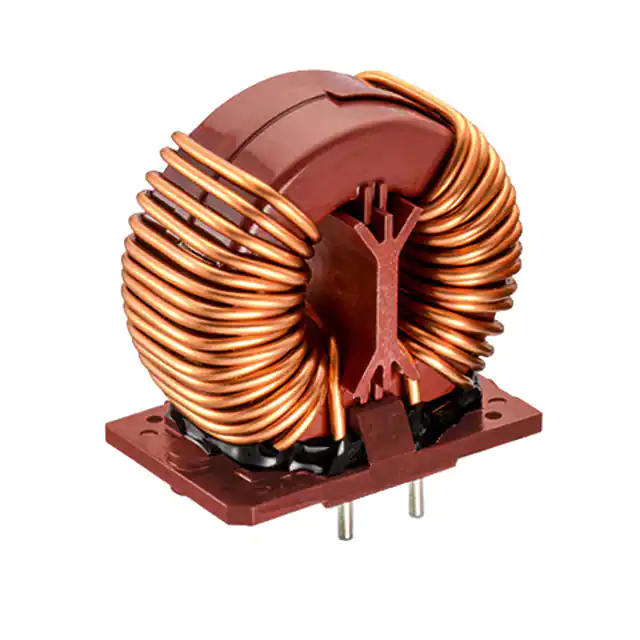

744830007215CMC 700UH 21.5A 2LN TH |
4 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 21.5A | 3.8mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF25XV-280-2R1A005JVCMC 600UH 28A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-170-1R7A009JVCMC 2MH 17A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 17A | 3.71mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-350-2R4A003JHCMC 220UH 35A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
RT8532-8-4M8CMC 4.8MH 8A 3LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 4.8 mH @ 100 kHz | 8A | 17mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
SCF29XV-120-1R6A017JHCMC 3.2MH 12A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.2 mH @ 100 kHz | 12A | 6.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
RT8132-10-4M0CMC 4MH 10A 3LN TH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 4 mH @ 100 kHz | 10A | 15mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
