Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF3216A-361YCMC 300MA 2LN 360OHM SMD AECQ200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 300mA | 600mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS11VL-R08125CMC 12.5MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12.5 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RC112-0.35-22MCMC 22MH 350MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 350mA | 1.9Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
SSHB10H-08082CMC 8.2MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 10 kHz | 800mA | 640mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
RN112-2.6-02-0M4CMC 400UH 2.6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 10 kHz | 2.6A | 40mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SS17HB-R05140CMC 14MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 500mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

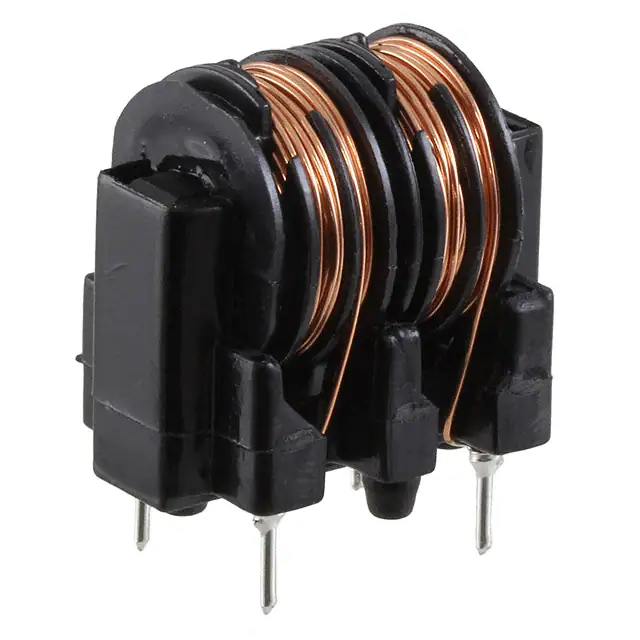

SS11V-11050-CHCMC 5MH 1.1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.1A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN116-0.8-02-27MCMC 27MH 800MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSR10HS-22026CMC 2.6MH 2.2A 2LN TH |
4 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.6 mH @ 10 kHz | 2.2A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-10064CMC 6.4MH 1A 2LN TH |
16 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 1A | 480mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-05177CMC 17.7MH 500MA 2LN TH |
1 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 17.7 mH @ 10 kHz | 500mA | 1.55Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
EH24-0.5-02-44MCMC 44MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 44 mH @ 400 Hz | 500mA | 1.25Ohm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SSR21NVS-10160CMC 16MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 16 mH @ 10 kHz | 1A | 290mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
EV24-1.5-02-4M5CMC 4.5MH 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 400 Hz | 1.5A | 116mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SU9VD-07030CMC 30UH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 1 kHz | 700mA | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-13097CMC 9.7MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 9.7 mH @ 10 kHz | 1.3A | 270mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R10377CMC 37.7MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 37.7 mH @ 10 kHz | 1A | 640mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R18112CMC 11.2MH 1.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 11.2 mH @ 10 kHz | 1.8A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-12110CMC 11MH 1.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 11 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
B82730G3951A020CMC 2.2MH 950MA 2LN TH |
5 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 950mA | 410mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
