Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT8532-12-3M6CMC 3.6MH 12A 3LN TH |
4 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 3.6 mH @ 100 kHz | 12A | 12mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|

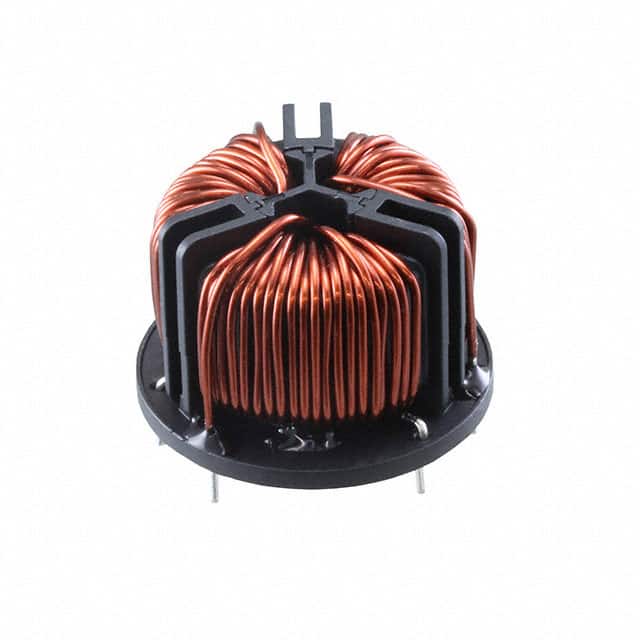

RT8132-12-3M6CMC 3.6MH 12A 3LN TH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3.6 mH @ 100 kHz | 12A | 12mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
744833027110CMC 2.7MH 11A 3LN TH |
5 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 2.7 mH @ 10 kHz | 11A | 18mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|

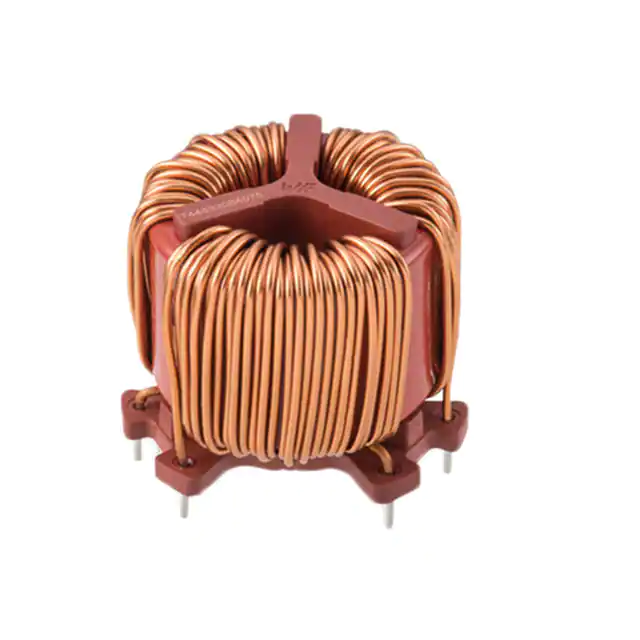

744833120060CMC 12MH 6A 3LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 12 mH @ 10 kHz | 6A | 65mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-12-100JHCMC 10MH 12A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 12A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
DKIV-1-3253-322P-NKCMC 32A 2LN TH |
4 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 32A | 2.6mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
SCF47B-400-1R8C040JCMC 4MH 40A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 40A | 2.1mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
RD5122-6-9M6CMC 9.6MH 6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9.6 mH @ 1 kHz | 6A (Typ) | 52.55mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
DKIV-1-3253-50D2CMC 50A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 50A | 0.5mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
DKIH-3242-202M-NKCMC 20A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 20A | 2.5mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
DKIH-3452-40D7-NKCMC 40A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 40A | - | 500V | 500V | -40°C ~ 100°C | - | - | - | - | - |
|
744835021220CMC 2.1MH 22A 3LN TH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.1 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744837010290CMC 1MH 29A 3LN TH |
5 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1 mH @ 10 kHz | 29A | 5mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744837006400CMC 600UH 40A 3LN TH |
4 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 600 µH @ 10 kHz | 40A | 3.2mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744839029220CMC 29MH 22A 3LN TH |
2 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 29 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC24W-2R1B0065VCMC 65UH 30A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 65 µH @ 100 kHz | 30A | 6.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SRF2012A-201YACMC 300MA 2LN 200OHM SMD AECQ200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS20H-R10100CMC 10MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1A | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
.jpg)
|
DLW21SN181XQ2LCMC 240MA 2LN 180 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 240mA | 390mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
748020024CMC 0.245NH 300MA 2LN 2 OHM SMD |
15 |
|
Datasheet |
0504 (1210 Metric), 6 PC Pad | - | 2 | 2 Ohms @ 100 MHz | 0.245 nH @ 100 MHz | 300mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
