Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST-202CMC 1A 2LN 600 OHM TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 40mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
FE2X07-5-2NLCMC 2A 2LN TH |
5 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 170mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82724J8302N040CMC 15MH 3A 2LN TH |
16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 3A | 90mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

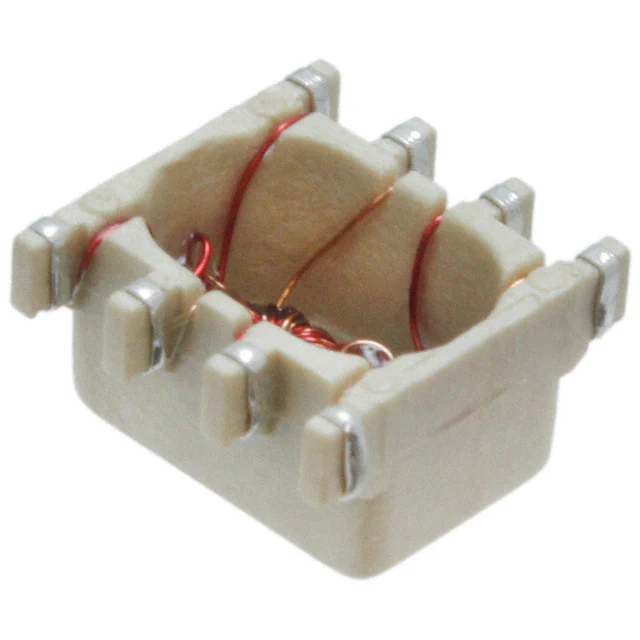

PE-68627NLCMC 4LN SMD |
16 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | - | - | 250mOhm | - | - | - | - | - | - | - | - |
|
SC22-05-70JHCMC 7MH 5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-202ACMC 1A 2LN 600 OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 50mOhm | 50V | - | -20°C ~ 65°C | - | - | - | - | - |
|
PAC6034.305NLTCMC 950MA 2LN 26K OHM SMD |
0 |
|
Datasheet |
Vertical, 4 Gull Wing | - | 2 | 26 kOhms @ 1.4 MHz | - | 950mA | 369mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
744861250CMC 25MH 250MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 250mA | 3.6Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
ET2835-041CMC 8MH 2.5A 2LN TH ESD |
2 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 2.5A | 190mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
B82791H2302N010CMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | - | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
750311896CMC 10MH 370MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 370mA | 2.5Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-20JCMC 2MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-01-E50GCMC 5MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1A | 150mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82733V2192B001CMC 15MH 1.9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.9A | 279mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82733V2901B001CMC 68MH 900MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 900mA | 1.1Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

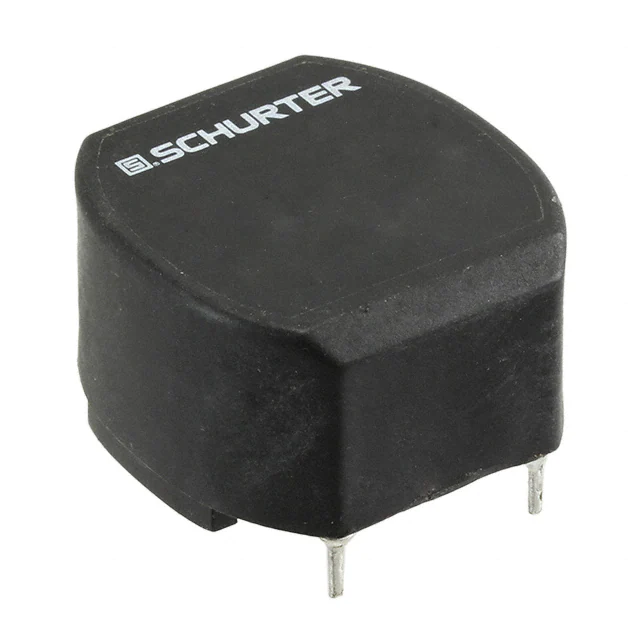

DFKF-28-0002CMC 1A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 1A | 360mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
FE2X39-4-3NLCMC 500MA 2LN TH |
10 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 500mA | 1.5Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CMS2-6-RCMC 230UH 1.85A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 230 µH @ 100 kHz | 1.85A | 44mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
DFKF-28-0004CMC 2A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 2A | 100mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
PE-68624NLTCMC 2LN SMD |
19 |
|
Datasheet |
Vertical, 6 Flat Lead | Signal Line | 2 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
