Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-03-08JSCMC 800UH 3A 2LN TH |
1 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 1 kHz | 3A | 60mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
RN216-1.5-02-10MCMC 10MH 1.5A 2LN TH |
4 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 148mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSR21NV-M12345CMC 34.5MH 1.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82791G2301N001CMC 30MH 300MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 300mA | 2.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
750314978CMC 10MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 1A | 449mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
RN143-4-02-3M9CMC 3.9MH 4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 4A | 59mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82722A2801N020CMC 27MH 800MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA | 600mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SSRH24NHS-20215CMC 21.5MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 21.5 mH @ 10 kHz | 2A | 177mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
750341633CMC 6.8MH 1.3A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 340mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

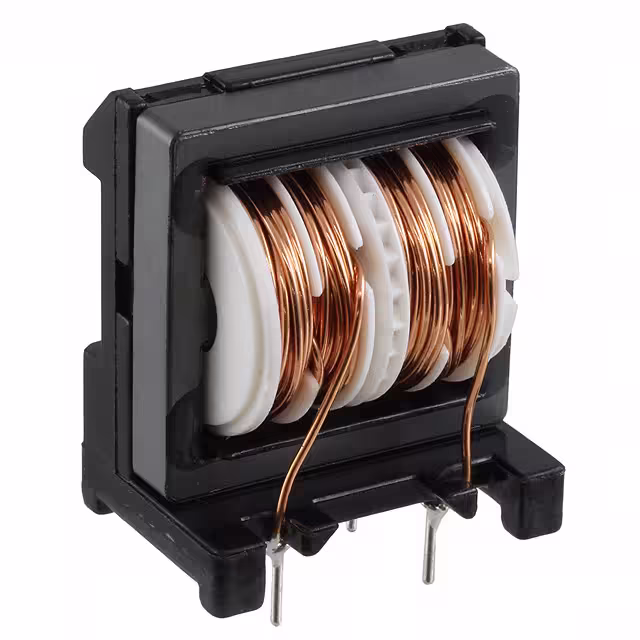

SS28V-R25080-CHCMC 8MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-R30050CMC 5MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5 mH @ 10 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82723A2501N001CMC 56MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 2.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720H0015A016CMC 4.7MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 500mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

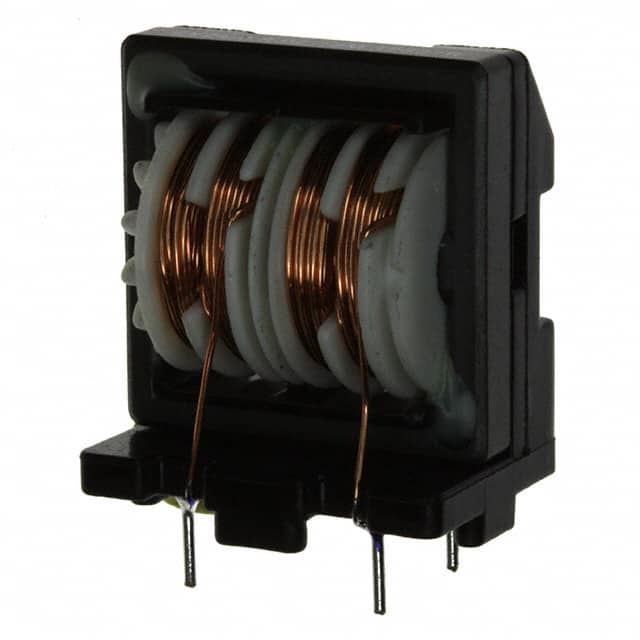

EV24-0.5-02-44MCMC 44MH 500MA 2LN TH |
15 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 44 mH @ 400 Hz | 500mA | 1.25Ohm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
SSHB21HS-20034CMC 3.431MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.431 mH @ 10 kHz | 2A | 140mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
HCTC-2.5-2.4CMC 2.5MH 2.4A 2LN TH |
1 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2.4A | 90mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

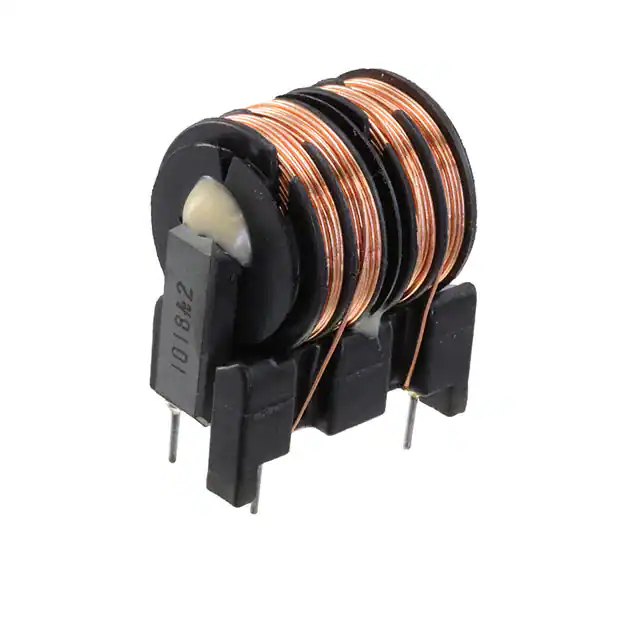

SS30V-100530CMC 53MH 1A 2LN TH |
3 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 53 mH @ 1 kHz | 1A | 1.1Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-350036CMC 3.6MH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 1 kHz | 3.5A | 100mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
750311899CMC 140MH 90MA 2LN TH |
2 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 140 mH @ 10 kHz | 90mA | 39Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82734R2252B030CMC 12MH 2.5A TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
