Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FE2X18-6-2NLCMC 1.4A 2LN TH |
5 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.4A | 650mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-08-30JCMC 3MH 8A 2LN TH |
17 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 8A | 54mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
DSO1-175-0001CMC 500MA 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 500mA | 800mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN13-300CMC 51UH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 51 µH @ 100 kHz | 6A | 23mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

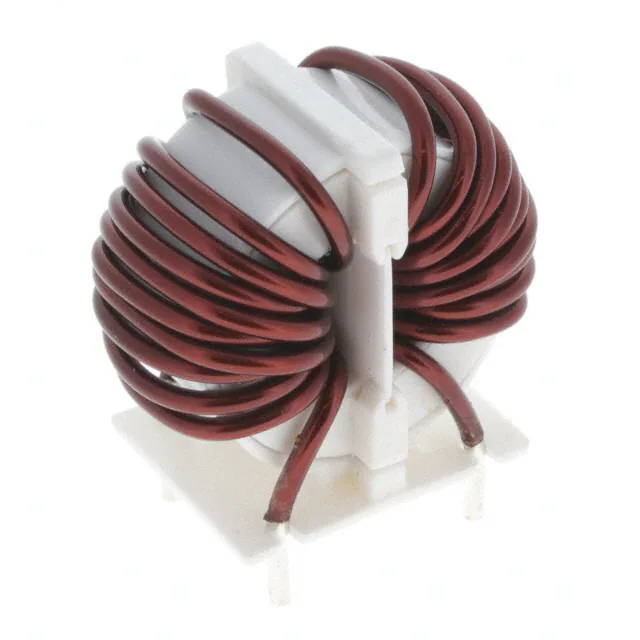

SC-18-10JCMC 700UH 20A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 20A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
DFKH-31-0002CMC 1A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 1A | 700mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
DFKH-31-0003CMC 1.4A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 1.4A | 470mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
DFKH-31-0005CMC 2A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 2A | 150mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
PH9407.404NLTCMC 12A 2LN 1.72K OHM SMD |
0 |
|
Datasheet |
Nonstandard | - | 2 | 1.72 kOhms @ 1.56 MHz | - | 12A | 5.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

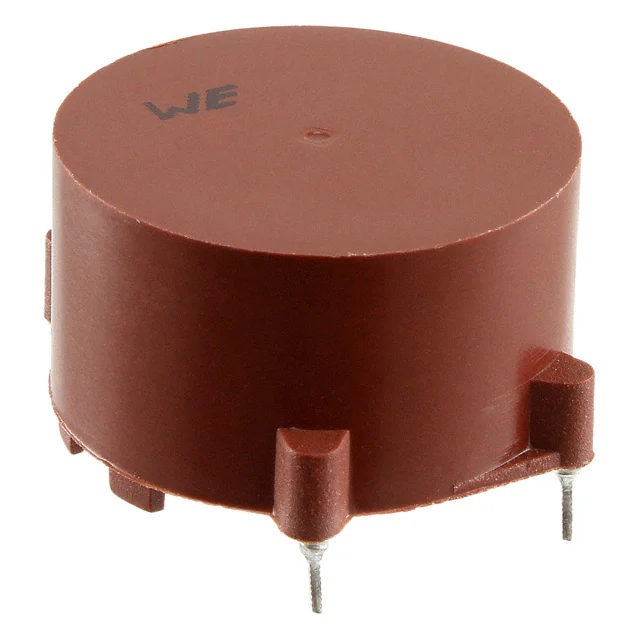

7446822006CMC 5.6MH 2A 2LN TH |
23 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2A | 160mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446321050CMC 50MH 600MA 2LN TH |
3 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 50 mH @ 10 kHz | 600mA | 1.2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446321033CMC 33MH 800MA 2LN TH |
1 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 800mA | 850mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446326002CMC 1.8MH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 23mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446323003CMC 2.7MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ET3542-057CMC 6MH 3.5A 2LN TH ESD |
1 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 3.5A | 100mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
|
DFKH-31-0008CMC 6A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 6A | 24mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
FE2X27-4-3NLCMC 700MA 2LN TH |
10 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 700mA | 820mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
HCTC-10-2.4CMC 10MH 2.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
HCTC-5-3.7CMC 5MH 3.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 3.7A | 70mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SC-07-90JCMC 9MH 7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 7A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
