Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN142-0.5-02-82MCMC 82MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA | 2.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-05-1503CMC 10.5MH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10.5 mH @ 16 kHz | 5A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

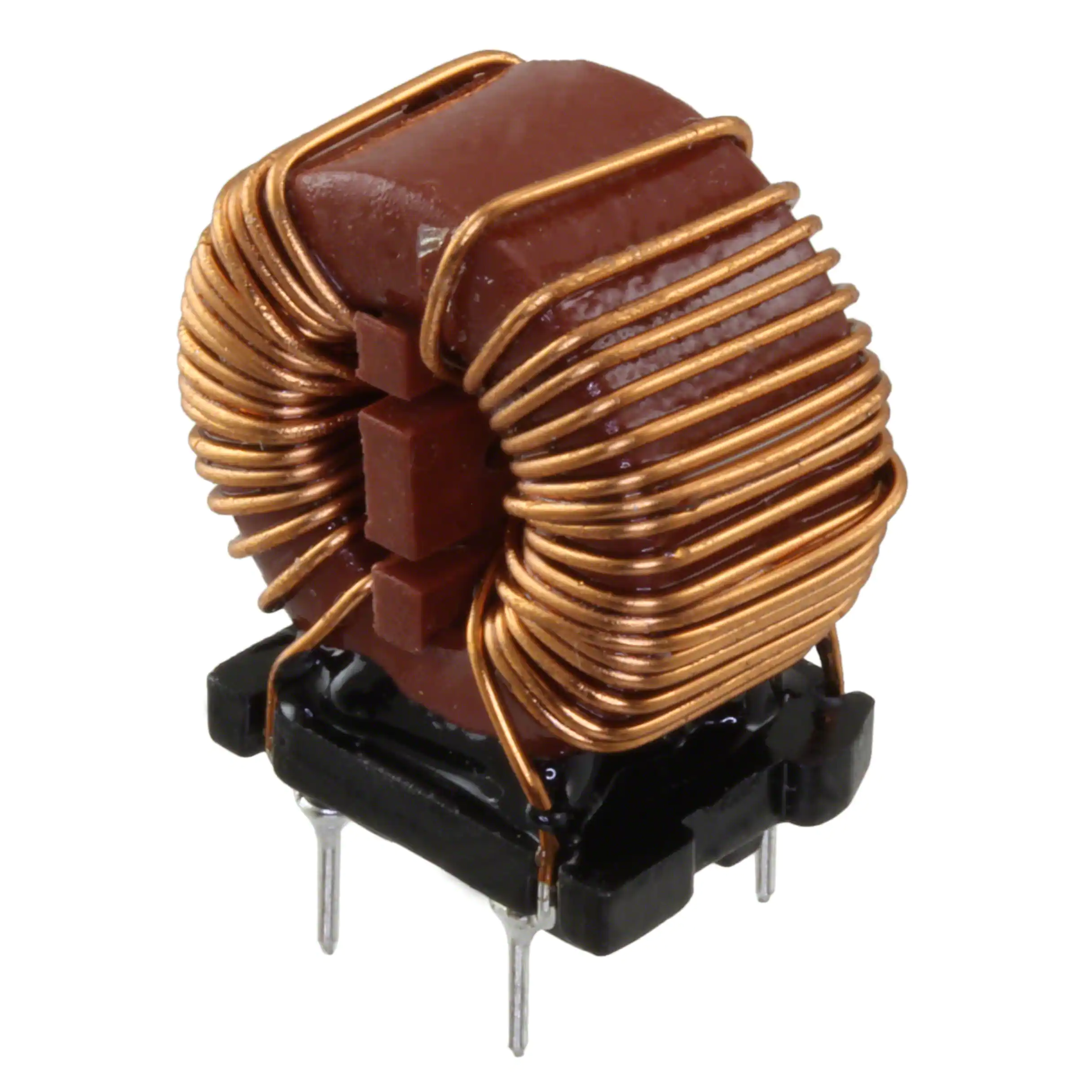

744823333CMC 3.3MH 2.5A 2LN TH |
10 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.5A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-15-07JCMC 702UH 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 702 µH @ 100 kHz | 15A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
744824433CMC 3.3MH 4A 2LN TH |
25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-09-209JHCMC 2.09MH 9A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.09 mH @ 10 kHz | 9A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
7446323004CMC 4MH 3A 2LN TH |
22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 3A | 70mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SC-15-12J-MICMC 1.2MH 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 15A | 6.2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN12-800NMC 250.0UH 5.0A 0.0600 OHM TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 250 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SC-15-09JCMC 900UH 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 15A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-06-462JHCMC 4.6MH 6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.6 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

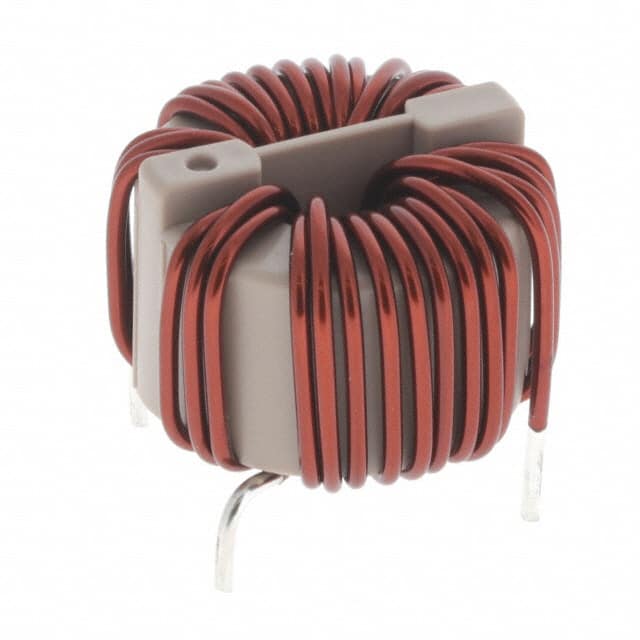

SC-15-E110HCMC 1.1MH 15A 2LN TH |
6 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 15A | 16.5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

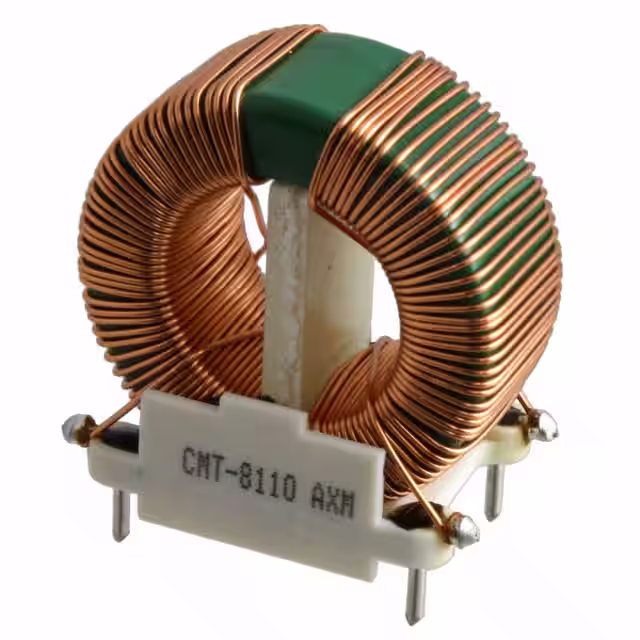

CMT-8110CMC 20MH 2.9A 2LN TH ESD |
25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

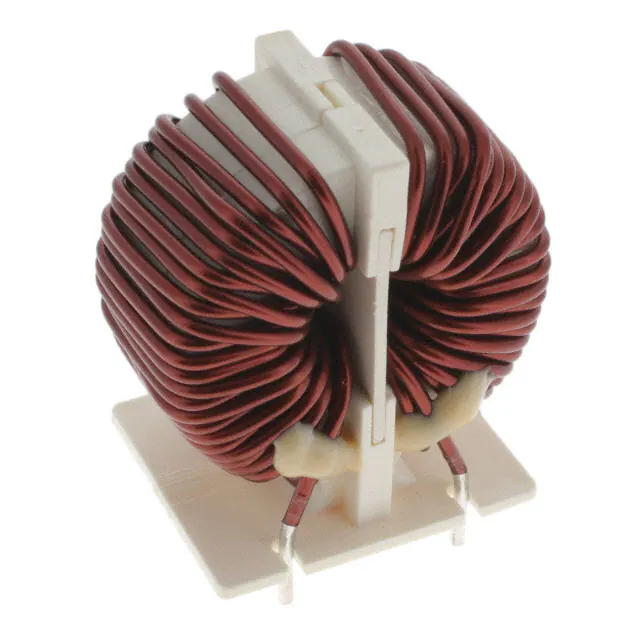

SC-10-E55JCMC 5.5MH 10A 2LN TH |
17 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 10 kHz | 10A | 24mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PE-96186NLCMC 6.3A (TYP) 2LN TH |
1 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 6.3A (Typ) | 40mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448256033CMC 3.3MH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 25mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

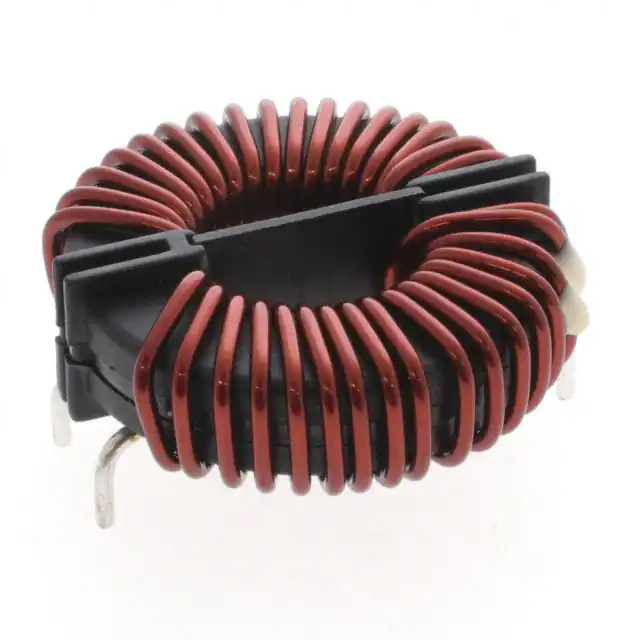

SCR31HA-120-1R3A012HCMC 1.2MH 12A 2LN TH |
18 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 12A | 9.6mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
744825410CMC 10MH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | 55mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446921027CMC 27MH 1.2A 2LN TH |
14 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.2A | 400mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

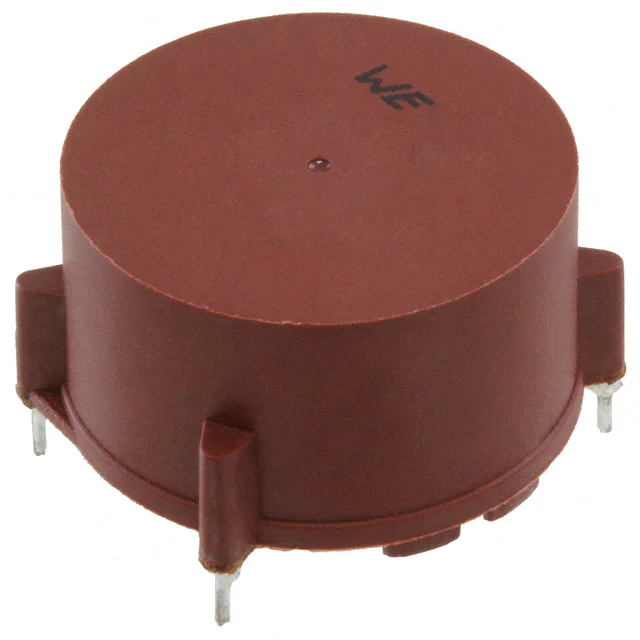

7446926002CMC 1.8MH 6A 2LN TH PFC |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 36mOhm | - | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
