Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN122-4-02-1M8CMC 1.8MH 4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 4A | 42mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN222-1-02-18MCMC 18MH 1A 2LN TH |
24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 1A | 630mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82723J2802N001CMC 450UH 8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 8A | 11mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744869161104CMC 100MH 500MA 2LN TH |
18 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 500mA | 3.47Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

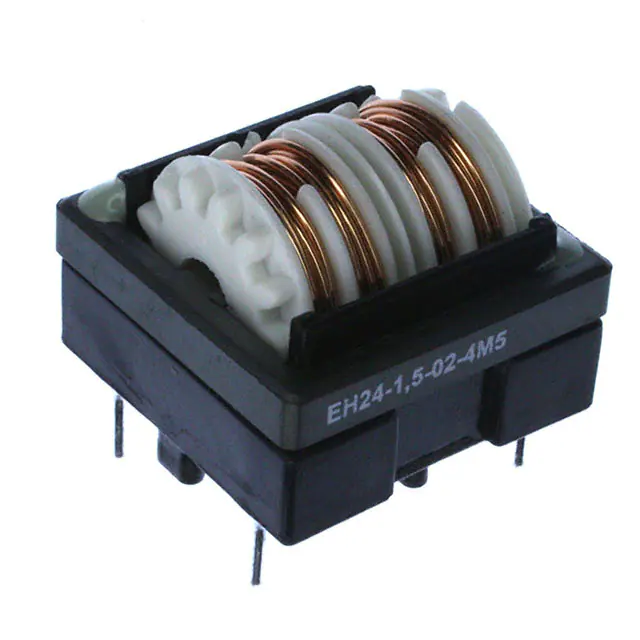

EH24-1.5-02-4M5CMC 4.5MH 1.5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 400 Hz | 1.5A | 116mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
52305CCMC 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.5A | 45mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DFKH-22-0004CMC 4A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 4A | 36mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|

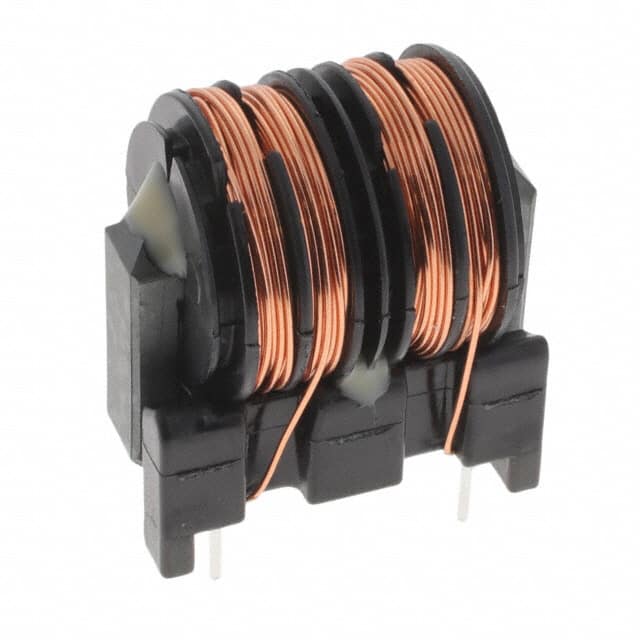

SS30V-120290CMC 29MH 1.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 29 mH @ 1 kHz | 1.2A | 600mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-150200CMC 20MH 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 1.5A | 500mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-01HCMC 67UH 15A 2LN TH |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 67 µH @ 10 kHz | 15A | 2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
DFKF-18-0005CMC 2A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 2A | 60mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
744862056CMC 5.6MH 600MA 2LN TH |
5 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 600mA | 830mOhm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-03-10GJCMC 1MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 3A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724A2602N020CMC 1.8MH 6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SC-07-10JCMC 1MH 7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 7A | 24mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
7116-RCCMC 6.8MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 6.8 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7110-RCCMC 510UH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 510 µH @ 1 kHz | 3A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7446221012CMC 12MH 1.2A 2LN TH |
3 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 1.2A | 280mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-05-300CMC 3MH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 5A | 55mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82724J8742N040CMC 1MH 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | - | 12mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
