Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

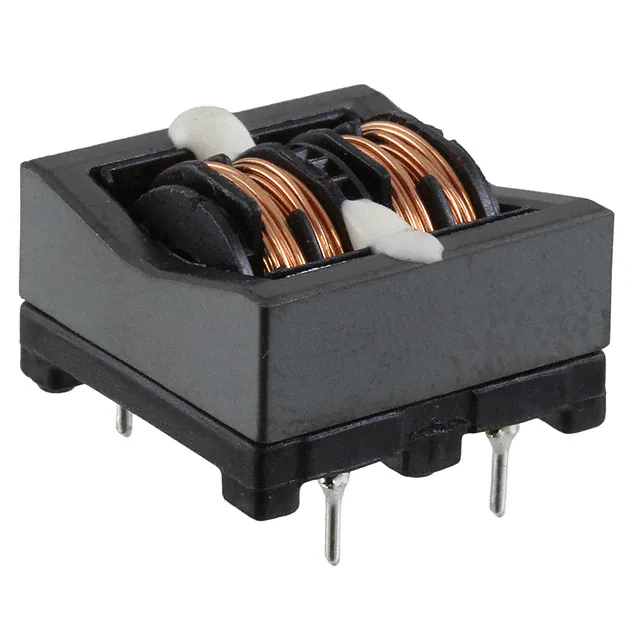

SSR21HS-12115CMC 11.5MH 1.2A 2LN TH |
74 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 10 kHz | 1.2A | 270mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
FE2X10-3-2NLCMC 700MA 2LN TH |
30 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 700mA | 740mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SSR10V-07330CMC 33MH 700MA 2LN TH |
76 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 10 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
7448640398CMC 3.3MH 1.1A 2LN TH |
95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.1A | 250mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640400CMC 5.6MH 800MA 2LN TH |
94 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 800mA | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640410CMC 2.7MH 1.2A 2LN TH |
86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 1.2A | 187mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640397CMC 2.7MH 1.2A 2LN TH |
67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 1.2A | 225mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640416CMC 18MH 500MA 2LN TH |
51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 24 mH @ 10 kHz | 600mA | 1.2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640411CMC 3.3MH 1.2A 2LN TH |
45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.2A | 210mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SU10VD-10020CMC 20UH 1A 2LN TH |
62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 µH @ 1 kHz | 1A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-R051100CMC 110MH 500MA 2LN TH |
95 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 110 mH @ 10 kHz | 500mA | 2.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CMF23V-393121-BCMC 39MH 1.2A 2LN TH |
57 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1.2A | 766mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
CMF16-393800-BCMC 39MH 800MA 2LN TH |
100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 800mA | 1.21Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
SS11H-R17036-CHCMC 3.6MH 1.7A 2LN TH |
76 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 1 kHz | 1.7A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10HS-07099CMC 9.9MH 700MA 2LN TH |
30 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 9.9 mH @ 10 kHz | 700mA | 810mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-11043CMC 4.3MH 1.1A 2LN TH |
28 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.3 mH @ 10 kHz | 1.1A | 350mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10H-05212CMC 21.2MH 500MA 2LN TH |
26 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 21.2 mH @ 10 kHz | 500mA | 1.7Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
RN212-0.5-02-15MCMC 15MH 500MA 2LN TH |
92 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 700mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
SSHB10HS-22011CMC 2.2A 2LN TH |
27 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.1 mH @ 10 kHz | 2.2A | 110mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
T8114ANLCMC 4.7MH 400MA 2LN 400 OHM SMD |
59 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 400 Ohms @ 100 MHz | 4.7 mH @ 100 kHz | 400mA | 800mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
