Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7446621010CMC 10MH 700MA 2LN TH |
59 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 550mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446620039CMC 39MH 400MA 2LN TH |
49 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 1.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446222004CMC 4.2MH 2A 2LN TH |
44 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 2A | 120mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446222003CMC 3.3MH 2A 2LN TH |
40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 75mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-11-16JCMC 1.6MH 11A 2LN TH |
28 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 11A | 13mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-05-21JCMC 2MH 5A 2LN TH |
55 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
RN142-1.4-02-27MCMC 27MH 1.4A 2LN TH |
72 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

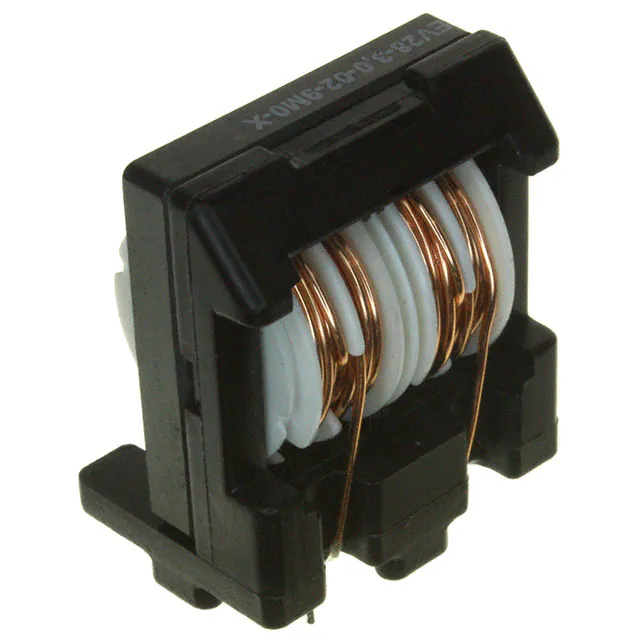

EV28-3.0-02-9M0-XCMC 9MH 3A 2LN TH |
57 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 400 Hz | 3A | 115mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
RN142-4-02-3M3CMC 3.3MH 4A 2LN TH |
78 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 67mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-07-42JCMC 4.2MH 7A 2LN TH |
100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 7A | 42mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
RN143-0.5-02-100MCMC 100MH 500MA 2LN TH |
99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 500mA | 2.9Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
FE2X39-4-2NLCMC 500MA 2LN TH |
20 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 500mA | 1.5Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446720047CMC 47MH 400MA 2LN TH |
91 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 400mA | 2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446722002CMC 2.2MH 2A 2LN TH |
57 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN143-6-02-1M8CMC 1.8MH 6A 2LN TH |
60 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 20mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PH9407.504NLTCMC 10A 2LN 2.35K OHM SMD |
31 |
|
Datasheet |
Nonstandard | - | 2 | 2.35 kOhms @ 1.42 MHz | - | 10A | 7.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-10-14JCMC 1.4MH 10A 2LN TH |
99 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 100 kHz | 10A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
PH9407.304NLTCMC 14A 2LN 1.6K OHM SMD |
71 |
|
Datasheet |
Nonstandard | - | 2 | 1.6 kOhms @ 1.57 MHz | - | 14A | 4.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN16P-130NMC 10.0UH 10.0A 0.0050 OHM TH |
98 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
7446322007CMC 6.8MH 1.9A 2LN TH |
56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.9A | 160mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
