Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHBC24W-2R1B0065VCMC 65UH 30A 2LN TH |
45 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 65 µH @ 100 kHz | 30A | 6.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
RB6522-16-1M0CMC 1MH 16A 2LN TH |
100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 400 Hz | 16A | 4.6mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
CM6560R-185CMC 1.8MH 1.9A 2LN SMD |
75 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1.8 mH @ 10 kHz | 1.9A | 80mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
DLFL-0147-16D3CMC 16A 2LN TH |
27 |
|
Datasheet |
Radial | - | 2 | - | - | 16A | 25mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
SCR47B-350-S2R0B010JCMC 1MH 35A 3LN TH |
32 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1 mH @ 10 kHz | 35A | 2.5mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
DLFP-0147-16D3CMC 16A 2LN TH |
82 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 16A | 25mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|

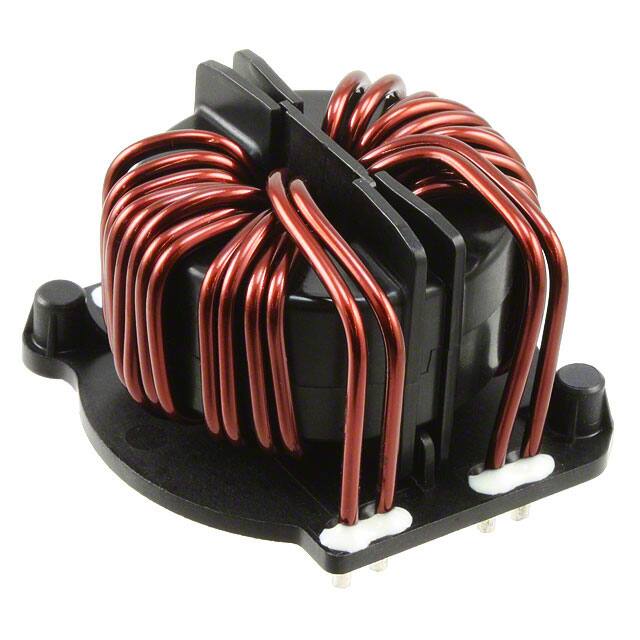

RB6122-36-0M5CMC 450UH 36A 2LN TH |
58 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 450 µH @ 1 kHz | 36A | 1.5mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
DLFL-0147-12D5CMC 12A 2LN TH |
30 |
|
Datasheet |
Radial | - | 2 | - | - | 12A | 38mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DKIP-0229-1005CMC 10A 2LN CHAS MNT |
40 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 10A | 18mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DLFP-0147-25D2CMC 25A 2LN TH |
12 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 25A | 10mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DKIH-3458-40D7-NKCMC 40A 4LN TH |
6 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 40A | - | 760V | 760V | -40°C ~ 100°C | - | - | - | - | - |
|
DKIH-3252-409M-NKCMC 40A 2LN TH |
23 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 40A | 1.5mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
RB8532-16-1M3CMC 1.3MH 16A 3LN TH |
78 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1.3 mH @ 1 kHz | 16A | 5.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIH-3352-1011-NKCMC 10A 3LN TH |
40 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 10A | 7.5mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
|
DKIH-3352-120Q-NKCMC 12A 3LN TH |
17 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 12A | 4.5mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|

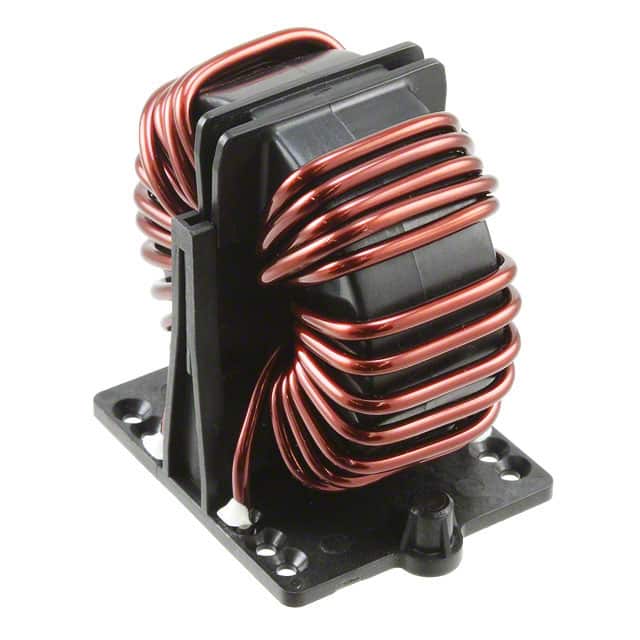

RB8522-25-2M0CMC 2MH 25A 2LN TH |
40 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 25A | 4.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD7127-36-1M0CMC 1MH 36A 2LN TH |
50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 36A (Typ) | 3.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
HHBC24W-2R1A0311VCMC 311UH 15A 2LN TH |
54 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 311 µH @ 100 kHz | 15A | 20.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

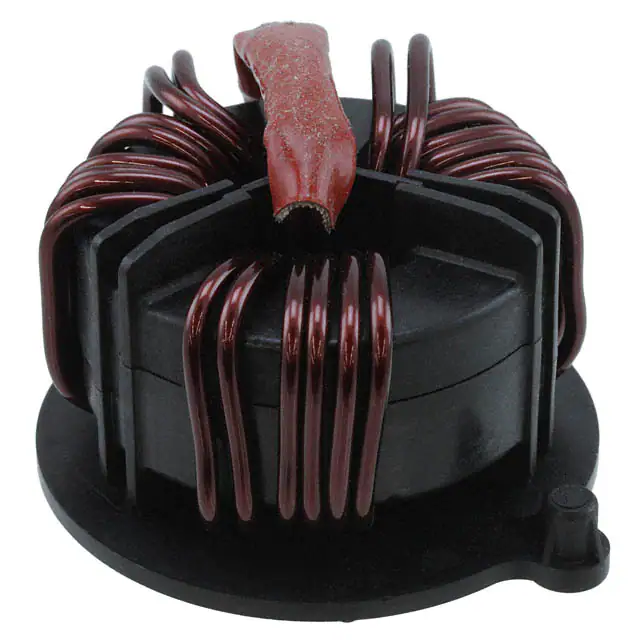

RB6132-50-0M2CMC 180UH 50A 3LN TH |
34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 180 µH @ 1 kHz | 50A | 0.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RB6532-50-0M2CMC 180UH 50A 3LN TH |
64 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 180 µH @ 400 Hz | 50A | 0.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
