Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DKIH-3358-50D7-NKCMC 50A 3LN TH |
12 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 50A | 0.4mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|

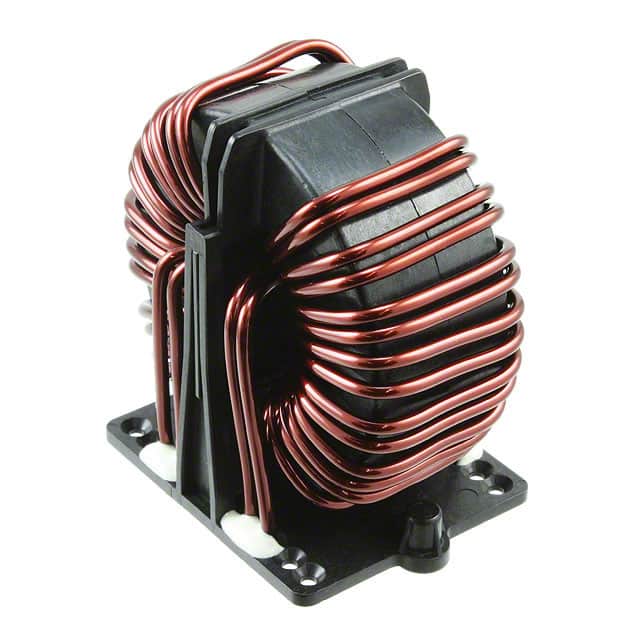

RB8522-36-1M5CMC 1.5MH 36A 2LN TH |
97 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 1.5 mH @ 400 Hz | 36A | 3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
744838040400CMC 4MH 40A 3LN TH |
11 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 4 mH @ 10 kHz | 40A | 3.2mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744839125095CMC 125MH 9.5A 3LN TH |
9 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 125 mH @ 10 kHz | 9.5A | 47mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744838480095CMC 48MH 9.5A 3LN TH |
6 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 48 mH @ 10 kHz | 9.5A | 47mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIP-0231-1505CMC 15A 2LN TH |
3 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 15A | 17mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
RB8532-50-0M3CMC 330UH 50A 3LN TH |
25 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 330 µH @ 1 kHz | 50A | 1.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
B82748S6623N30CMC 1.1MH 62A 3LN TH |
7 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.1 mH @ 10 kHz | 62A | 1.6mOhm (Typ) | - | 690/400V | -40°C ~ 125°C | - | - | - | - | - |
|
RD8137-64-0M5CMC 500UH 64A 3LN TH |
23 |
|
Datasheet |
- | Power Line | 3 | - | 500 µH @ 1 kHz | 64A (Typ) | 1.35mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DKIP-0233-3005CMC 30A 2LN TH |
6 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 30A | 12.5mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIP-0233-4003CMC 40A 2LN TH |
2 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 40A | 6mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
SRF2012-161YACMC 350MA 2LN 160 OHM SMD |
917 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 160 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-181YACMC 350MA 2LN 180OHM SMD AECQ200 |
779 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SDCW2012-2-371TFCMC 280MA 2LN 370 OHM SMD |
905 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM-0603-220-TCMC 500MA 2LN 22 OHM SMD |
830 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 22 Ohms @ 100 MHz | - | 500mA | 80mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SU9V-07010CMC 1MH 700MA 2LN TH |
1,000 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 700mA | 600mOhm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SRF3216A-221YCMC 300MA 2LN 220OHM SMD AECQ200 |
949 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 300mA | 450mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF3216A-121YCMC 350MA 2LN 120OHM SMD AECQ200 |
458 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 350mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ICM0805ER670MCMC 400MA 2LN 67 OHM SMD |
202 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
784231121CMC 370MA 2LN 120OHM SMD AECQ200 |
364 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
