Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7446120047CMC 47MH 300MA 2LN TH |
95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 300mA | 2.6Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-03-04JSCMC 450UH 3A 2LN TH |
90 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 450 µH @ 1 kHz | 3A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
RN222-0.6-02-47MCMC 47MH 600MA 2LN TH |
61 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSHB21H-R031580CMC 158MH 300MA 2LN TH |
93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 158 mH @ 10 kHz | 300mA | 3.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R25044CMC 4.4MH 2.5A 2LN TH |
83 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.4 mH @ 10 kHz | 2.5A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-15080CMC 8MH 1.5A 2LN TH |
97 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 10 kHz | 1.5A | 310mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-30024CMC 2.4MH 3A 2LN TH |
93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 10 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
EH24-4.0-02-0M5CMC 500UH 4A 2LN TH |
41 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 500 µH @ 10 kHz | 4A | 16mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
52505CCMC 2.4A 2LN TH |
41 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.4A | 91mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

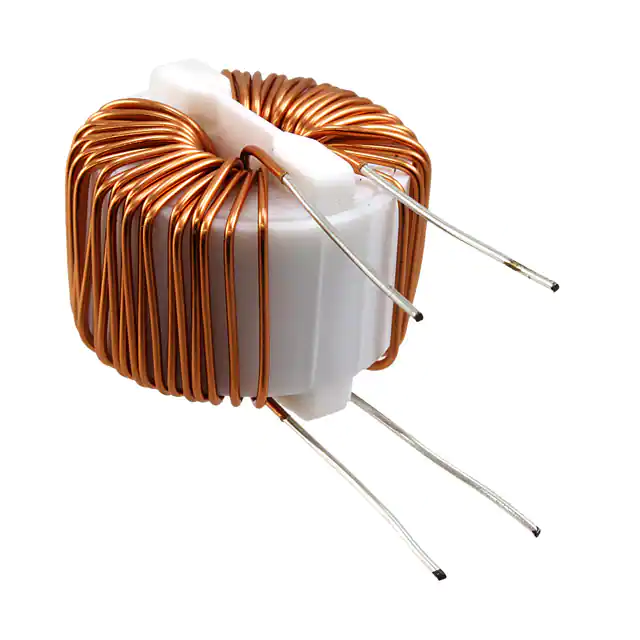

SC-02-300CMC 3MH 2A 2LN TH |
1 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
FE2X03-3-2NLCMC 1.5A 2LN TH |
20 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 215mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

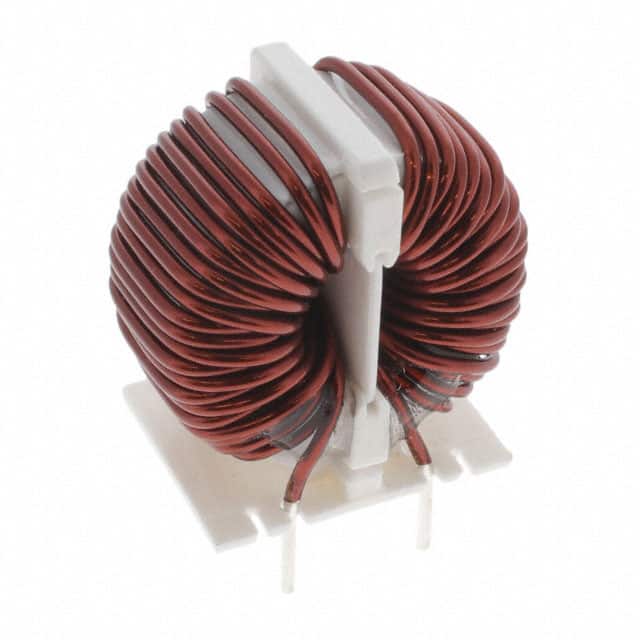

SC-08-20JCMC 2MH 8A 2LN TH |
88 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 8A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
744861018CMC 1.8MH 1A 2LN TH |
85 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 1A | 310mOhm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
744861033CMC 3.3MH 800MA 2LN TH |
28 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 800mA | 510mOhm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-800CMC 8MH 2A 2LN TH |
49 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 2A | 150mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-03-30JCMC 3MH 3A 2LN TH |
42 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 3A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
DFKF-28-0001CMC 600MA 2LN TH |
40 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 600mA | 1Ohm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
SC-06-101CMC 1MH 6A 2LN TH |
60 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 27mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-204A4CMC 500MA 4LN 600 OHM TH |
99 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | 600 Ohms @ 7 MHz | - | 500mA | 120mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
7446622003CMC 3.3MH 1.5A 2LN TH |
80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 150mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
