Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-26-S010JHCMC 101.5UH 26A 3LN TH |
44 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 101.5 µH @ 10 kHz | 26A | 1.5mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
744830039080CMC 3.9MH 8A 2LN TH |
48 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 8A | 31mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744830010185CMC 1MH 18.5A 2LN TH |
22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 18.5A | 5.5mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744830025103CMC 2.5MH 10.3A 2LN TH |
16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 10.3A | 18mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744830017132CMC 1.7MH 13.2A 2LN TH |
10 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 13.2A | 10mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

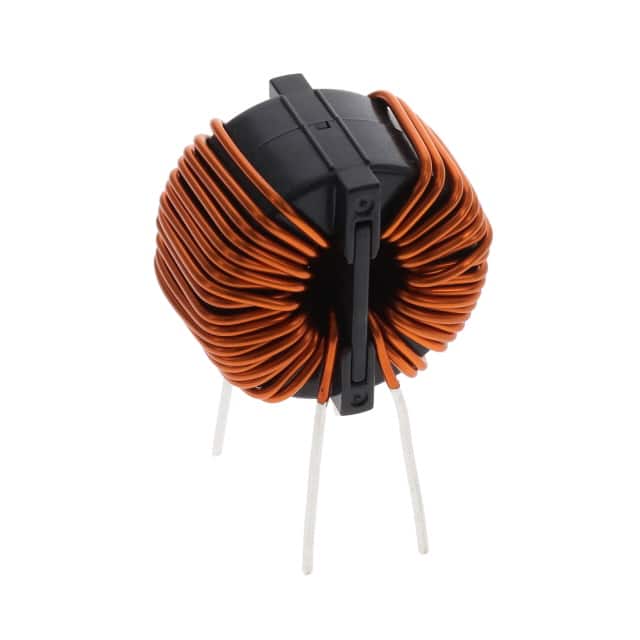

LDFL008123VV-V0ECMC 11.5MH 8A 2LN TH |
65 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 11.5 mH @ 100 kHz | 8A | 26mOhm | 250V | - | - | - | - | - | - | - |
|

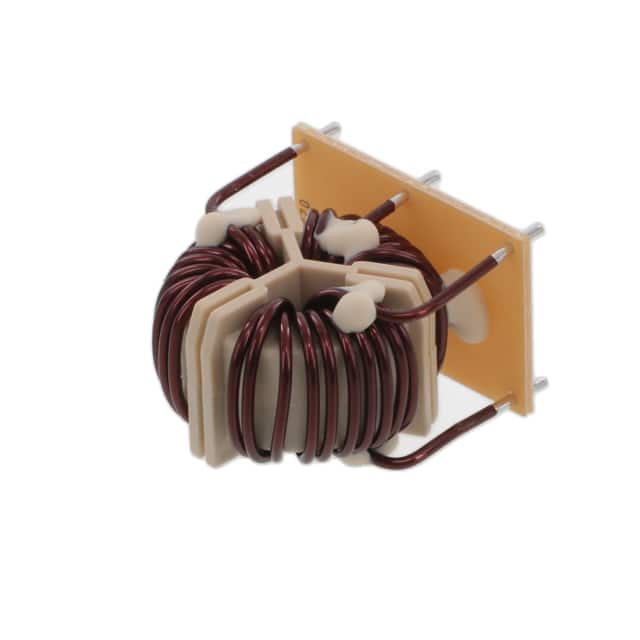

SCF31B-180-S1R7A013JCMC 1.5MH 18A 3LN TH |
83 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1.5 mH @ 100 kHz | 18A | 6.5mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR29XV-150-1R7A015JHCMC 1.37MH 15A 2LN TH AEC-Q200 |
80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.37 mH @ 100 kHz | 15A | 5.14mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-080-1R2A018JHCMC 7.9MH 8A 2LN TH AEC-Q200 |
95 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 8A | 14.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
RT8522-16-4M0CMC 4MH 16A 2LN TH |
26 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 16A | 10mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|

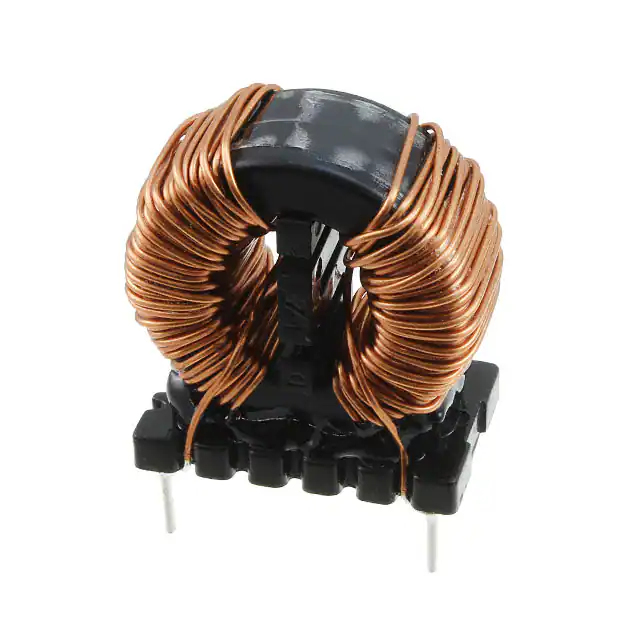

7448050490CMC 90MH 3.5A 2LN TH |
17 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 90 mH @ 10 kHz | 3.5A | 110mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82746S4203A040CMC 1.15MH 20A 3LN TH |
29 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.15 mH @ 10 kHz | 20A | 2.7mOhm | - | 500V | - | - | - | - | - | - |
|
|
744831010205CMC 1MH 20.5A 2LN TH |
14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 20.5A | 5.5mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744831016164CMC 1.6MH 16.4A 2LN TH |
12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 16.4A | 8.5mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744831034090CMC 3.4MH 9A 2LN TH |
12 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | - | 3.4 mH @ 10 kHz | 9A | 27mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744831047068CMC 4.7MH 6.8A 2LN TH |
9 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 6.8A | 44mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF29XV-200-2R0A011JVCMC 1.3MH 20A 2LN TH AEC-Q200 |
81 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 100 kHz | 20A | 2.73mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-150-1R7A015JHCMC 2.5MH 15A 2LN TH AEC-Q200 |
80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 15A | 5.14mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF33B-400-1R6C009JHCMC 900UH 40A 2LN TH |
38 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 40A | 1.7mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
RT8532-10-4M0CMC 4MH 10A 3LN TH |
92 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 4 mH @ 100 kHz | 10A | 15mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
