Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82726S6203A040CMC 1.5MH 24A 2LN TH |
51 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 24A | 3.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82727E6243A040CMC 2.2MH 24A 2LN TH |
46 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 24A | 3.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
RT8522-20-3M0CMC 3MH 20A 2LN TH |
55 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 7mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
744833052100CMC 5.2MH 10A 3LN TH |
9 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 5.2 mH @ 10 kHz | 10A | 27mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIV-1-3253-403M-NKCMC 40A 2LN TH |
12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 40A | 1.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
7448262510CMC 1MH 25A 2LN TH |
41 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 25A | 4.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

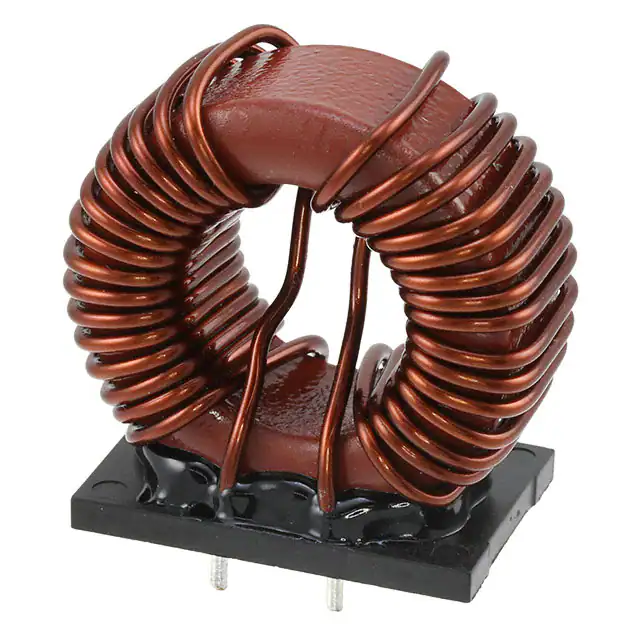

7448261418CMC 1.8MH 14A 2LN TH |
14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 14A | 9.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF47B-600-2R2C0005JHCMC 50UH 60A 2LN TH |
69 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 60A | 0.31mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RD5122-10-6M0CMC 6MH 10A 2LN TH |
82 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6 mH @ 400 Hz | 10A (Typ) | 24.25mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
DKIV-1-3253-40D5CMC 40A 2LN TH |
15 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 40A | 1.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
RT8532-16-3M0CMC 3MH 16A 3LN TH |
47 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 3 mH @ 100 kHz | 16A | 8mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
|
DKIV-1-3253-504J-NKCMC 50A 2LN TH |
9 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 50A | 0.5mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|

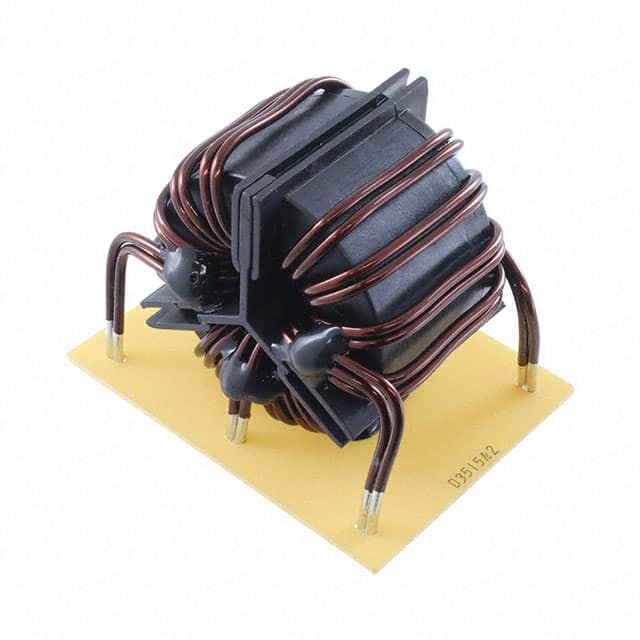

SC-35-SD040JCMC 40UH 35A 3LN TH |
19 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 40 µH @ 100 kHz | 35A | 2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
RD5132-6-5M0CMC 5MH 6A 3LN TH |
61 |
|
Datasheet |
- | Power Line | 3 | - | 5 mH @ 400 Hz | 6A (Typ) | 38mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
DLFL-0125-0501CMC 5A 2LN TH |
25 |
|
Datasheet |
Radial | - | 2 | - | - | 5A | 120mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
7448060535CMC 35MH 5A 2LN TH |
19 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 10 kHz | 5A | 90mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|

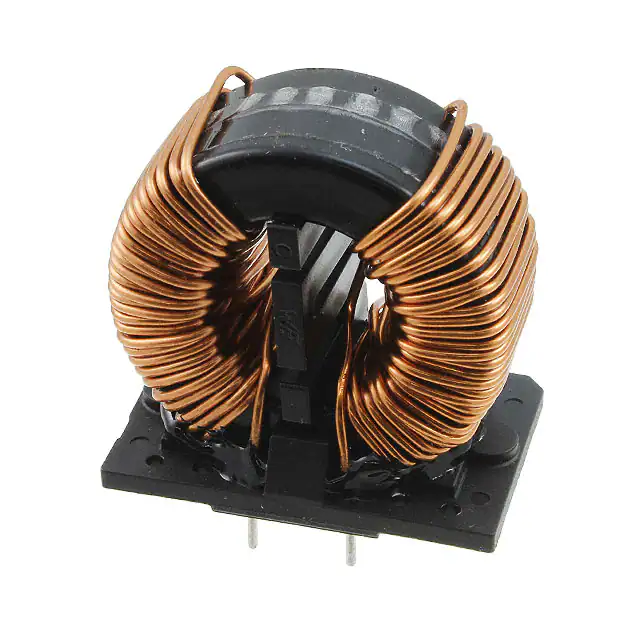

7448060620CMC 20MH 6A 2LN TH |
17 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 6A | 45mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448060814CMC 14MH 8A 2LN TH |
8 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 10 kHz | 8A | 27mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
|
47718-232CMC 2.26MH 8A 2LN 7KOHM TH |
67 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 7 kOhms @ 1 MHz | 2.26 mH @ 10 kHz | 8A | 40mOhm | - | - | - | - | - | - | - | - |
|
DKIH-3242-160Q-NKCMC 16A 2LN TH |
40 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 16A | 5.6mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
