Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FE2X47-4-2NLCMC 400MA 2LN TH |
20 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 400mA | 1.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

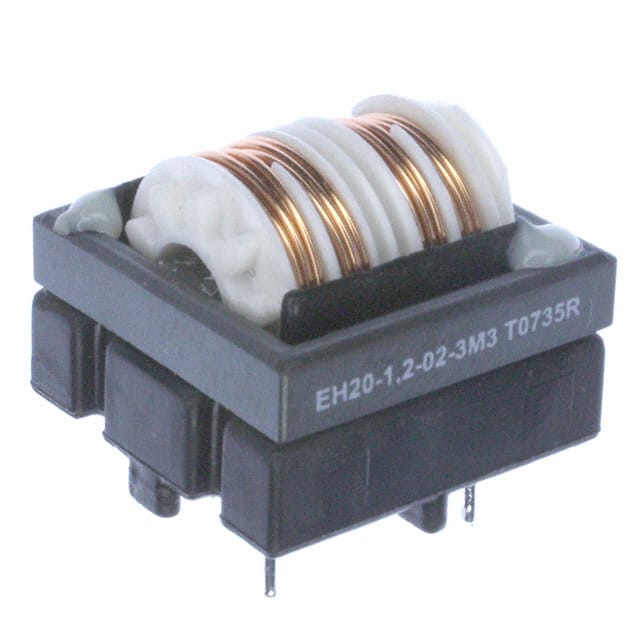

EH20-1.2-02-3M3CMC 3.3MH 1.2A 2LN TH |
50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 400 Hz | 1.2A | 127mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
FE2X07-3-3NLCMC 1.2A 2LN TH |
20 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.2A | 39mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL121006-500-2P-TCMC 8MA 2LN 500 OHM SMD |
500 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | - | 8mA | 6Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL121006-750-2P-TCMC 6MA 2LN 750 OHM SMD |
500 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 750 Ohms @ 100 MHz | - | 6mA | 14Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SSR21NHS-M031500CMC 150MH 300MA 2LN TH |
73 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 10 kHz | 300mA | 2.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
TM8116NLCMC 470UH 700MA 2LN 800 OHM SMD |
330 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | 470 µH @ 100 kHz | 700mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
RN216-2-02-2M2CMC 2.2MH 2A 2LN TH |
80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 66mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
ST-201CMC 200MA 2LN 1.5K OHM TH |
69 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | 1.5 kOhms @ 7 MHz | - | 200mA | 100mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
|
FE2X27-3-2NLCMC 400MA 2LN TH |
30 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 400mA | 1.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SSR21NHS-10160CMC 16MH 1A 2LN TH |
93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 16 mH @ 10 kHz | 1A | 290mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CMF23H-104700-BCMC 100MH 700MA 2LN TH |
72 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 700mA | 1.99Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
SH-202CMC 1.5UH 3A 2LN TH |
65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 µH @ 100 kHz | 3A | 20mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SSRH24NHS-45041CMC 4.1MH 4.5A 2LN TH |
28 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 4.5A | 41mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN122-0.5-02-56MCMC 56MH 500MA 2LN TH |
81 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SS26V-R080470CMC 47MH 800MA 2LN TH |
3 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 1 kHz | 800mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
750341632CMC 3.3MH 2A 2LN TH |
50 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 3.3 mH @ 10 kHz | 2A | 190mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN122-2-02-5M0CMC 5MH 2A 2LN TH |
93 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2A | 140mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
FE2X15-3-2NLCMC 500MA 2LN TH |
30 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 500mA | 960mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446121018CMC 18MH 500MA 2LN TH |
97 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 750mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
