Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

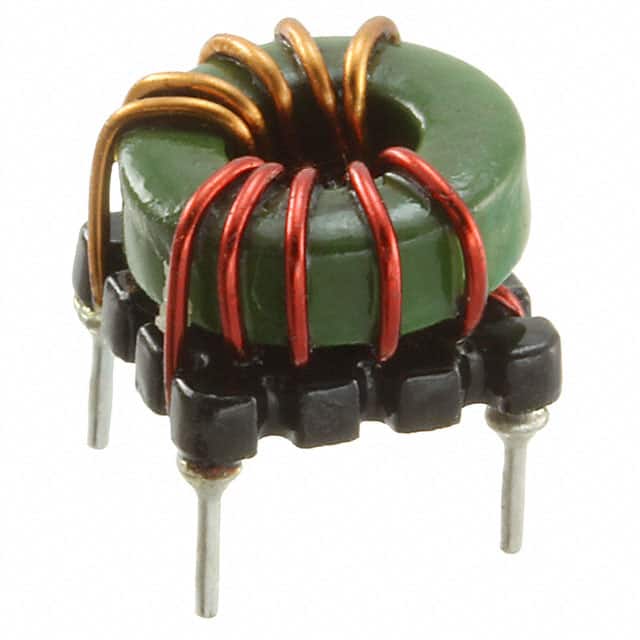

CMC-10CMC 4A 2LN TH |
29 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 4A | 7mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
SC-20-10JHCMC 1MH 20A 2LN TH |
29 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 20A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

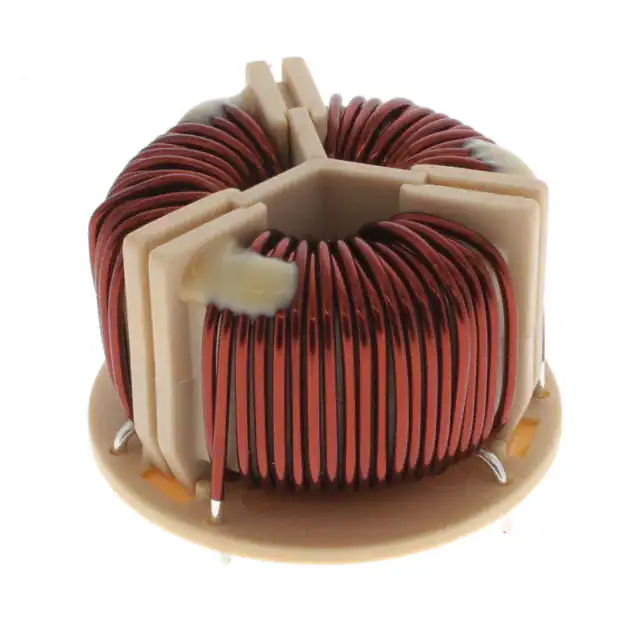

SC-10-S30JHCMC 3MH 10A 3LN TH |
40 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3 mH @ 10 kHz | 10A | 25mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

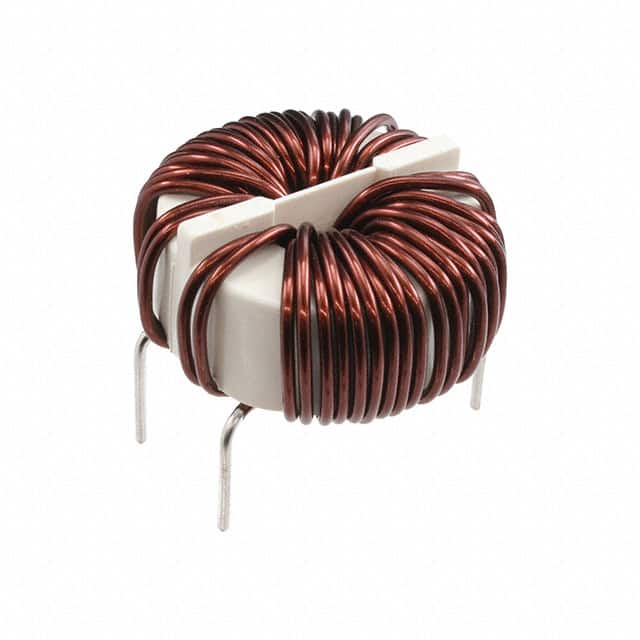

SC-15-E350HCMC 3.5MH 15A 2LN TH |
48 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 100 kHz | 15A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82725V2163U040CMC 2MH 16A 2LN TH |
30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 16A | 4.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

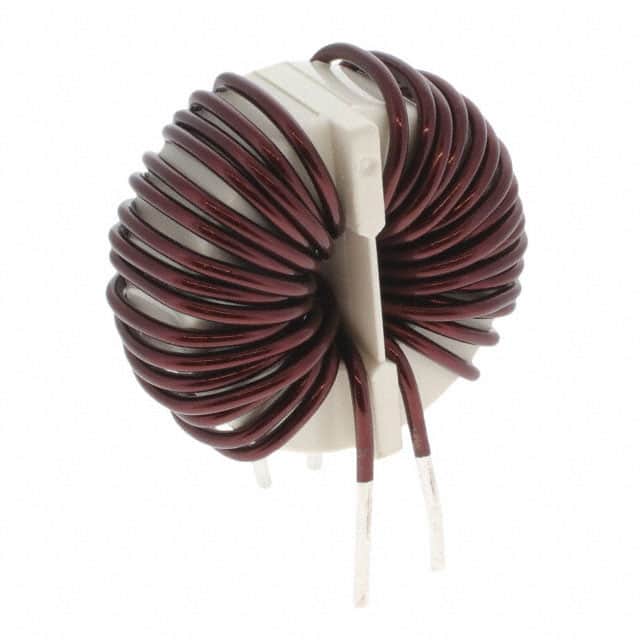

SC-20-201CMC 2MH 20A 2LN TH |
23 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 20A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMT908-H4CMC 16MH 2.6A 2LN TH ESD |
95 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 16 mH @ 10 kHz | 2.6A | 160mOhm | - | 250V | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
SCF25XV-100-1R3A016JHCMC 6.3MH 10A 2LN TH AEC-Q200 |
87 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.3 mH @ 100 kHz | 10A | 11.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SC-20-E20JHCMC 2MH 20A 2LN TH |
67 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 20A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
744844221CMC 220UH 12A 2LN TH |
58 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 10 kHz | 12A | 9mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744844101CMC 100UH 14A 2LN TH |
34 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 10 kHz | 14A | 6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF29XV-180-1R8A013JHCMC 1.9MH 18A 2LN TH AEC-Q200 |
71 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 100 kHz | 18A | 4.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-200-2R0A011JHCMC 1.3MH 20A 2LN TH AEC-Q200 |
16 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 100 kHz | 20A | 2.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82726S6243A040CMC 440UH 29A 2LN TH |
91 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 29A | 1.5mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
SCF25XV-240-2R0A006JVCMC 900UH 24A 2LN TH AEC-Q200 |
46 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 24A | 1.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
RT8122-10-6M0CMC 6MH 10A 2LN TH |
70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6 mH @ 100 kHz | 10A | 16mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
SC-10-S016JHCMC 168UH 10A 3LN TH |
27 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 168 µH @ 10 kHz | 10A | 3mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
7448040382CMC 82MH 2.5A 2LN TH |
14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 2.5A | 170mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

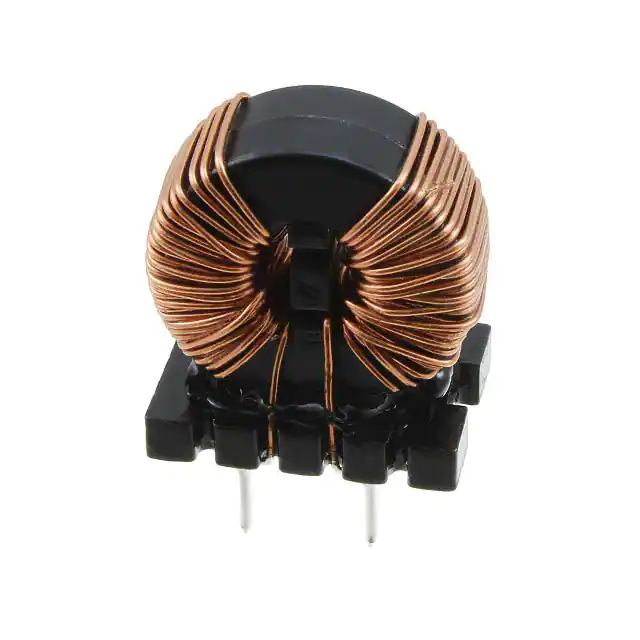

7448040435CMC 35MH 3.5A 2LN TH |
14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 10 kHz | 3.5A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF31B-200-2R0A020JHCMC 2MH 20A 2LN TH |
73 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 20A | 5.2mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
