Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-62892NLCMC 3MH 3.5A 2LN TH |
88 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 3.5A | 60mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
RN152-8-02-2M7CMC 2.7MH 8A 2LN TH |
50 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 22mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
TCK-122CMC SMD |
30 |
|
Datasheet |
Horizontal, 4 Flat Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

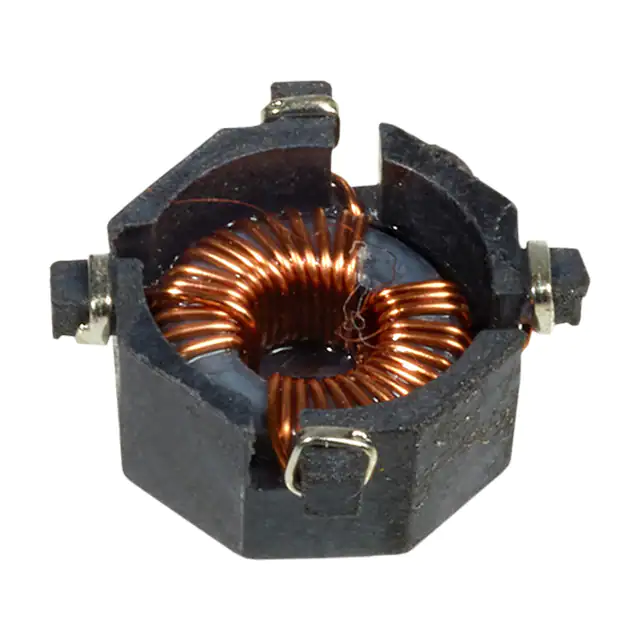

TCK-090CMC 470UH 1A 2LN SMD |
50 |
|
Datasheet |
Horizontal, 4 Flat Lead | - | 2 | - | 470 µH @ 10 kHz | 1A | 60mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-088CMC 521UH 2LN TH |
43 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 521 µH @ 100 kHz | - | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|

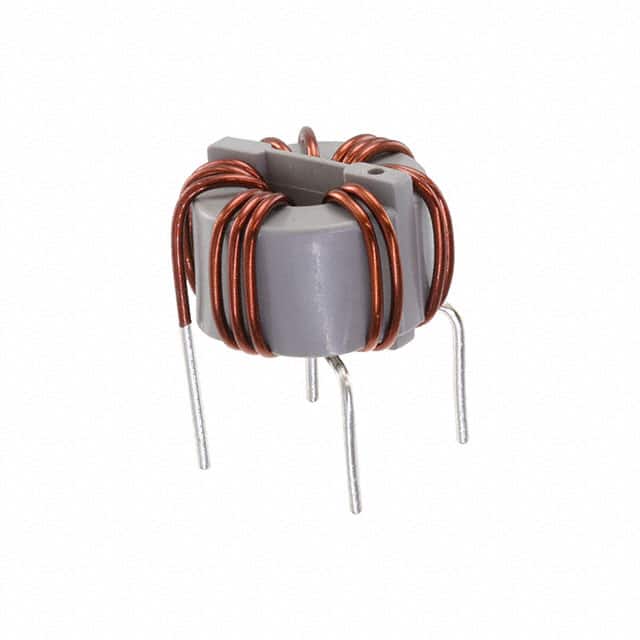

SC-15-D030CMC 30UH 15A 2LN TH |
28 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

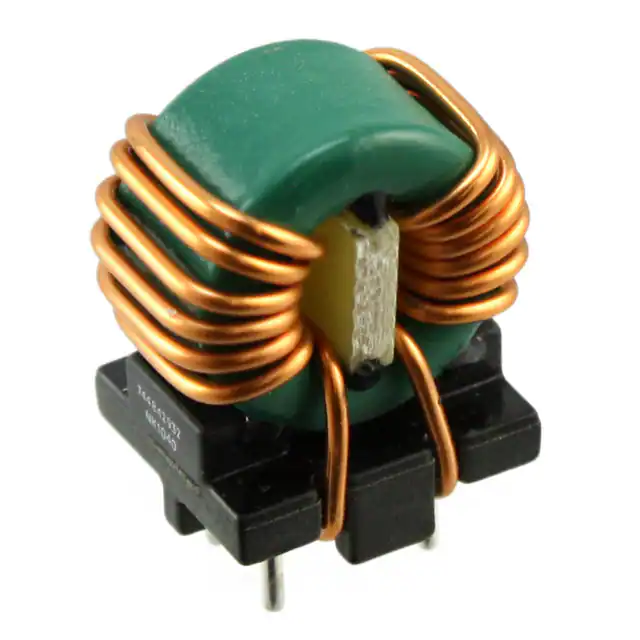

744842932CMC 32UH 8.5A 2LN TH |
60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 32 µH @ 100 kHz | 8.5A | 6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744842632CMC 32UH 8.5A 2LN TH |
46 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 32 µH @ 100 kHz | 8.5A | 8.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744842816CMC 16UH 10A 2LN TH |
38 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 16 µH @ 100 kHz | 10A | 5.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-127CMC 137UH 2LN TH |
35 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 137 µH @ 10 kHz | - | 24mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SCT29XV-050-1R0A044JHCMC 6.47MH 5A 2LN TH AEC-Q200 |
50 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.47 mH @ 100 kHz | 5A | 39.9mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
PL8208NLTCMC 2.8A 2LN SMD |
80 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.8A | 80mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
7448022010CMC 10MH 2A 2LN TH |
46 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2A | 85mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448026002CMC 1.5MH 6A 2LN TH |
30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 6A | 8mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
PA4415NLCMC 5A 2LN 29.4K OHM TH |
40 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 29.4 kOhms @ 920 kHz | - | 5A | 90mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-30-050HCMC 500UH 30A 2LN TH |
31 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 500 µH @ 10 kHz | 30A | 3mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-18-290CMC 2.9MH 18A 2LN TH |
80 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2.9 mH @ 100 kHz | 18A | 25mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-30-D010CMC 10UH 30A 2LN TH |
87 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 30A | 1.8mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-15-200CMC 2MH 15A 2LN TH |
72 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

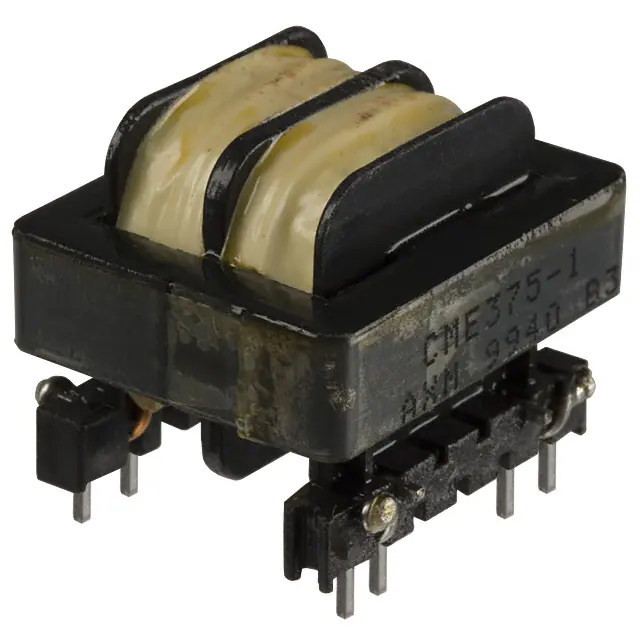

CME375-1CMC 4.4MH 5.5A 2LN TH ESD |
46 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 5.5A | 49mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
