Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500C192T400BD2BCAP ALUM 1900UF 400V SCREW CHAS |
29 |
|
Datasheet |
500C | Bulk | Active | 1900 µF | -10%, +50% | 400 V | 59.3mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | 7.7 A @ 120 Hz | - | - | 0.875" (22.23mm) | 2.000" Dia (50.80mm) | 4.687" (119.05mm) | - | Chassis Mount | |
|

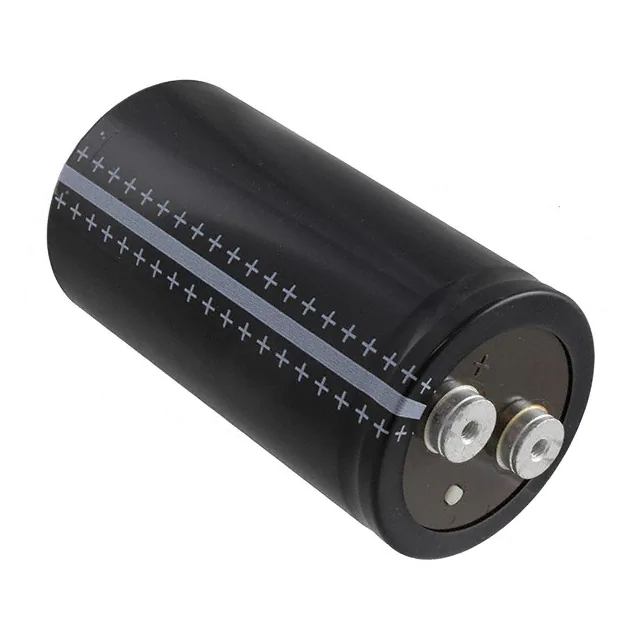

B41560A9339M000CAP ALUM 33000UF 20% 100V SCREW |
46 |
|
Datasheet |
B41560 | Bulk | Active | 33000 µF | ±20% | 100 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21 A @ 100 Hz | - | 8.4 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|

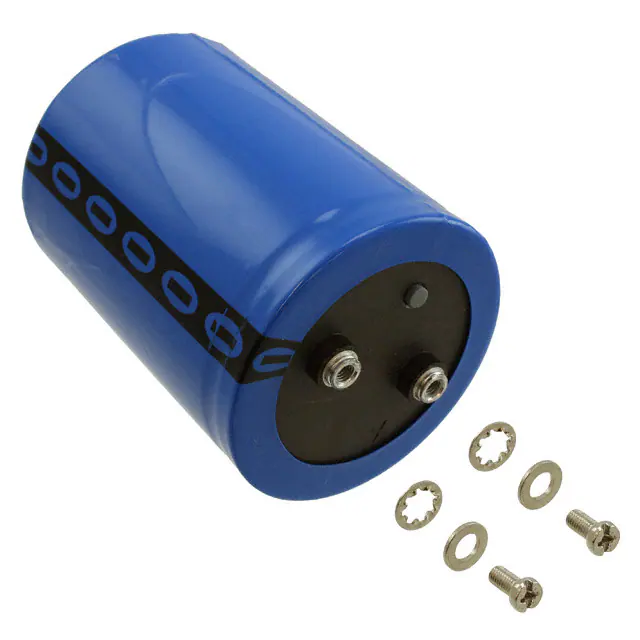

MAL210118683E3CAP ALUM 68000UF 20% 63V SCREW |
37 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 68000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | 26 A @ 10 kHz | 6 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.205" (106.80mm) | - | Chassis Mount | |
|
|
PEH200OO427AMB2CAP ALUM 2700UF 20% 420V SCREW |
90 |
|
Datasheet |
PEH200 | Bulk | Active | 2700 µF | ±20% | 420 V | 24mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 100 Hz | - | 12 mOhms | 1.122" (28.50mm) | 2.622" Dia (66.60mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS70A274NT063CAP ALUM 270000UF 20% 63V SCREW |
36 |
|
Datasheet |
ALS70 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|

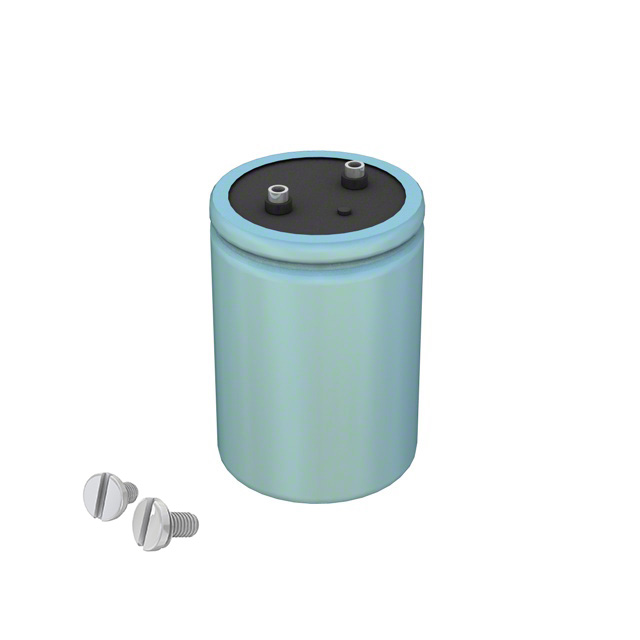

CGR802T075W3LCAP ALUM 8000UF 75V SCREW CHAS M |
49 |
|
Datasheet |
CGR | Bulk | Active | 8000 µF | -10%, +50% | 75 V | 8.5mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.4 A @ 120 Hz | 18.86 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
MLP331M250EK0ACAP ALUM 330UF 20% 250V FLATPACK |
10 |
|
Datasheet |
MLP | Bulk | Active | 330 µF | ±20% | 250 V | 426mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
B41458B9479M000CAP ALUM 47000UF 20% 100V SCREW |
230 |
|
Datasheet |
B41458 | Bulk | Active | 47000 µF | ±20% | 100 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
CGS603U050X5CCAP ALUM 60000UF 50V SCREW CHAS |
31 |
|
Datasheet |
CGS | Bulk | Active | 60000 µF | -10%, +75% | 50 V | 10mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.8 A @ 120 Hz | 25.74 A @ 10 kHz | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.125" (130.18mm) | - | Chassis Mount | |
|
|
MLP221M300EK0ACAP ALUM 220UF 20% 300V FLATPACK |
120 |
|
Datasheet |
MLP | Bulk | Active | 220 µF | ±20% | 300 V | 597mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
CGS152T450X4CCAP ALUM 1500UF 450V SCREW CHAS |
64 |
|
Datasheet |
CGS | Bulk | Active | 1500 µF | -10%, +50% | 450 V | 59mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 11.1 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
PEH200YT4220MU2CAP ALUM 2200UF 20% 450V SCREW |
96 |
|
Datasheet |
PEH200 | Box | Active | 2200 µF | ±20% | 450 V | - | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.1 A @ 100 Hz | 35.6 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 4.173" (106.00mm) | - | Chassis Mount | |
|
|
CGS742T200X5LCAP ALUM 7400UF 200V SCREW CHAS |
26 |
|
Datasheet |
CGS | Bulk | Active | 7400 µF | -10%, +50% | 200 V | 18mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 120 Hz | 22.5 A @ 10 kHz | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
1C.jpg)
|
MLP442M050EK1CCAP ALUM 4400UF 20% 50V FLTPCK |
35 |
|
Datasheet |
MLP | Bulk | Active | 4400 µF | ±20% | 50 V | 97mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.4 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
B43703A5568M000CAP ALUM 5600UF 20% 450V SCREW |
38 |
|
Datasheet |
B43703 | Bulk | Active | 5600 µF | ±20% | 450 V | 18mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.8 A @ 100 Hz | - | 28 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
MLP222M063EK0ACAP ALUM 2200UF 20% 63V FLATPACK |
41 |
|
Datasheet |
MLP | Tray | Active | 2200 µF | ±20% | 63 V | 101mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
MLP152M080EK1ACAP ALUM 1500UF 20% 80V FLATPACK |
30 |
|
Datasheet |
MLP | Bulk | Active | 1500 µF | ±20% | 80 V | 106mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.2 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
B43704A9688M000CAP ALUM 6800UF 20% 400V SCREW |
36 |
|
Datasheet |
B43704 | Bulk | Active | 6800 µF | ±20% | 400 V | 17mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.4 A @ 100 Hz | - | 28 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
|
DCM512T350DG2ACAP ALUM 5100UF 350V SCREW CHAS |
14 |
|
Datasheet |
DCM | Bulk | Active | 5100 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
MLS112M075EK0ACAP ALUM 1100UF 20% 75V FLATPACK |
36 |
|
Datasheet |
MLS | Bulk | Active | 1100 µF | ±20% | 75 V | 112mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 11.5 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount |
