Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS70A332MF500CAP ALUM 3300UF 20% 500V SCREW |
65 |
|
Datasheet |
ALS70 | Bulk | Active | 3300 µF | ±20% | 500 V | 77mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.3 A @ 100 Hz | 19.7 A @ 10 kHz | 58 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
CGS103U035V2CCAP ALUM 10000UF 35V SCREW CHAS |
5 |
|
Datasheet |
CGS | Bulk | Active | 10000 µF | -10%, +75% | 35 V | 38mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 7.15 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
B41560A8339M000CAP ALUM 33000UF 20% 63V SCREW |
84 |
|
Datasheet |
B41560 | Bulk | Active | 33000 µF | ±20% | 63 V | 11mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 12 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.161" (105.70mm) | - | Chassis Mount | |
|
MAL210617473E3CAP ALUM 47000UF 40V SCREW CHAS |
122 |
|
Datasheet |
106 PED-ST | Bulk | Active | 47000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 100 Hz | - | 8 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.402" (111.80mm) | - | Chassis Mount | |
|
|
CGS353U040V5LCAP ALUM 35000UF 40V SCREW CHAS |
34 |
|
Datasheet |
CGS | Bulk | Active | 35000 µF | -10%, +75% | 40 V | 15mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 16.64 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
ALS80A124NF063CAP ALUM 120000UF 20% 63V SCREW |
41 |
|
Datasheet |
ALS80 | Bulk | Active | 120000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.2 A @ 100 Hz | 24.6 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
B43701B5278M000CAP ALUM 2700UF 20% 450V SCREW |
67 |
|
Datasheet |
B43701 | Bulk | Active | 2700 µF | ±20% | 450 V | 45mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.38 A @ 100 Hz | 1.202 A @ 100 kHz | 75 mOhms | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 3.846" (97.70mm) | - | Chassis Mount | |
|

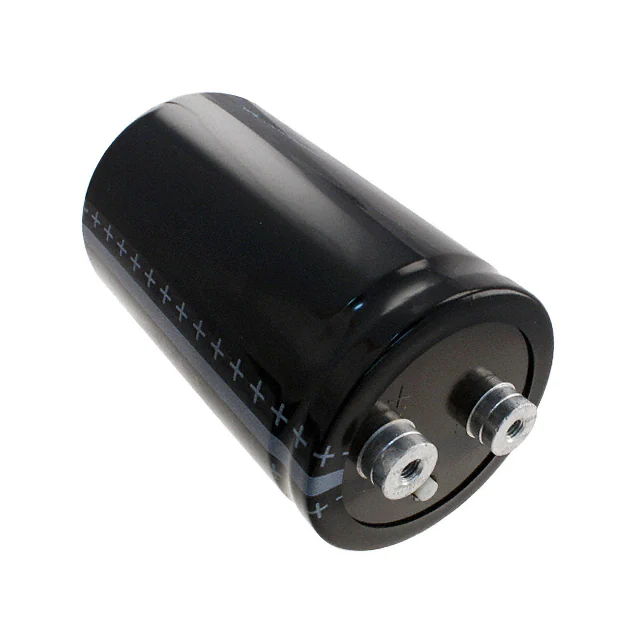

B41560A7100M000CAP ALUM 100000UF 20% 40V SCREW |
160 |
|
Datasheet |
B41560 | Bulk | Active | 100000 µF | ±20% | 40 V | 8.2mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | - | 7 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
CGS153U050V4CCAP ALUM 15000UF 50V SCREW CHAS |
104 |
|
Datasheet |
CGS | Bulk | Active | 15000 µF | -10%, +75% | 50 V | 19mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 120 Hz | 13 A @ 10 kHz | - | 0.875" (22.22mm) | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
CGS103U100W4CCAP ALUM 10000UF 100V SCREW CHAS |
48 |
|
Datasheet |
CGS | Bulk | Active | 10000 µF | -10%, +75% | 100 V | 40mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 120 Hz | 10.4 A @ 10 kHz | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
B43704A5278M000CAP ALUM 2700UF 20% 450V SCREW |
243 |
|
Datasheet |
B43704 | Bulk | Active | 2700 µF | ±20% | 450 V | 36mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | - | 55 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.846" (97.70mm) | - | Chassis Mount | |
|
B43310A9278M000CAP ALUM 2700UF 20% 400V SCREW |
76 |
|
Datasheet |
B43310 | Bulk | Not For New Designs | 2700 µF | ±20% | 400 V | 71mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | - | - | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.780" (96.00mm) | - | Chassis Mount | |
|

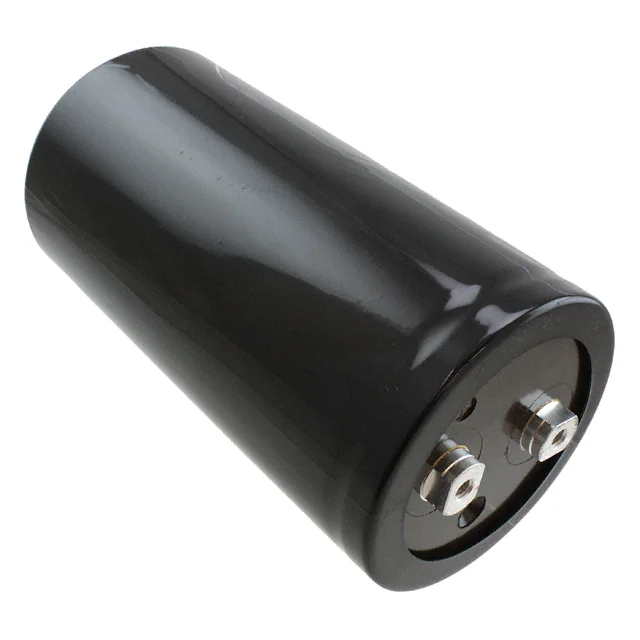

ALS31A472NP400CAP ALUM 4700UF 20% 400V SCREW |
38 |
|
Datasheet |
ALS31 | Bulk | Active | 4700 µF | ±20% | 400 V | 33mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 A @ 100 Hz | 26 A @ 10 kHz | 24 mOhms | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis, Stud Mount | |
|
|
ALS70A472NF500CAP ALUM 4700UF 20% 500V SCREW |
90 |
|
Datasheet |
ALS70 | Bulk | Active | 4700 µF | ±20% | 500 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | 21.1 A @ 10 kHz | 45 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
MAL220213472E3CAP ALUM 4700UF 20% 250V SCREW |
120 |
|
Datasheet |
202 PML-ST | Box | Active | 4700 µF | ±20% | 250 V | 28mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 100 Hz | 17.7 A @ 10 kHz | 19 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.165" (105.80mm) | - | Clamp Mount | |
|
|
CGS183U100V4CCAP ALUM 18000UF 100V SCREW CHAS |
32 |
|
Datasheet |
CGS | Bulk | Active | 18000 µF | -10%, +75% | 100 V | 18mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 120 Hz | 13.65 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

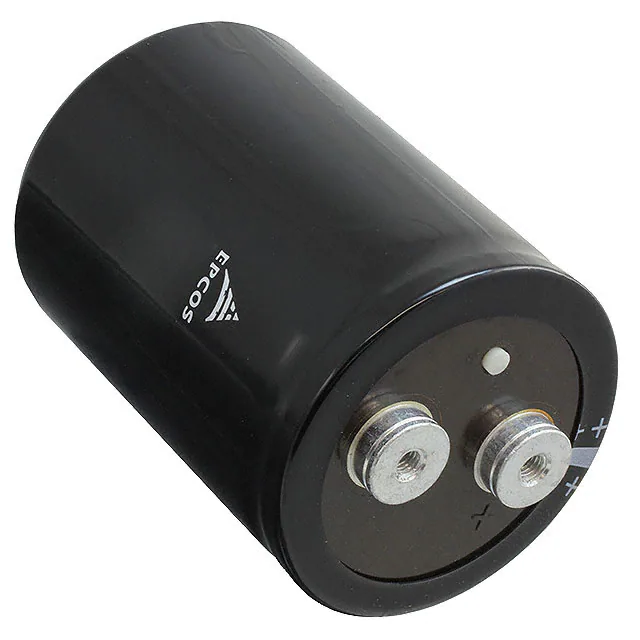

B41560A9229M000CAP ALUM 22000UF 20% 100V SCREW |
118 |
|
Datasheet |
B41560 | Bulk | Active | 22000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
PEH169MT5220QB2CAP ALUM 22000UF 63V SCREW CHAS |
81 |
|
Datasheet |
PEH169 | Bulk | Active | 22000 µF | -10%, +30% | 63 V | 6mOhm @ 100Hz | 13000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.260" (32.00mm) | 2.953" Dia (75.00mm) | 4.173" (106.00mm) | - | Chassis Mount | |
|
301R562U063JT2CAP ALUM 5600UF 63V RADIAL TH |
184 |
|
Datasheet |
301 | Tray | Active | 5600 µF | -10%, +75% | 63 V | 19mOhm @ 120Hz | 4000 Hrs @ 85°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.400" (10.16mm) | 1.000" Dia (25.40mm) | 3.625" (92.08mm) | - | Through Hole | |
|
MAL210117104E3CAP ALUM 100000UF 20% 40V SCREW |
116 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 24.96 A @ 10 kHz | 6 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.134" (105.00mm) | - | Chassis Mount |
