Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

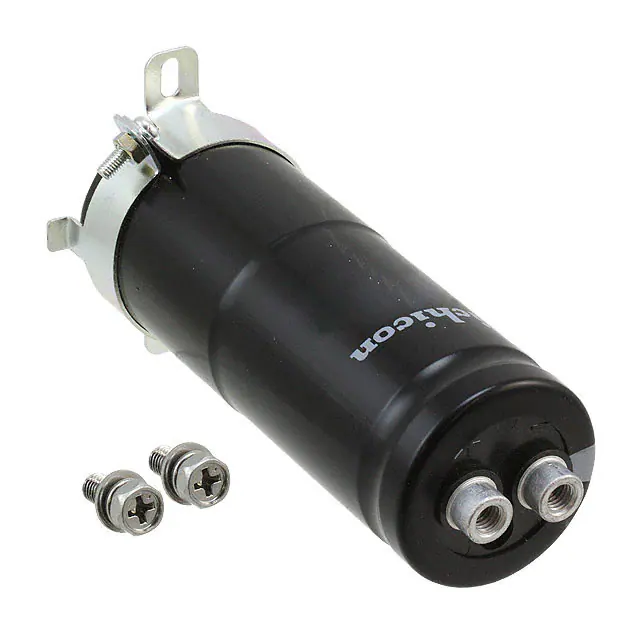

LNT1E333MSECAP ALUM 33000UF 20% 25V SCREW |
104 |
|
Datasheet |
LNT | Bulk | Active | 33000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.2 A @ 120 Hz | 7.13 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
ALS31A102KE400CAP ALUM 1000UF 20% 400V SCREW |
126 |
|
Datasheet |
ALS31 | Box | Active | 1000 µF | ±20% | 400 V | 139mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | 10.3 A @ 10 kHz | 98 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.228" (82.00mm) | - | Chassis, Stud Mount | |
|
LNR1J153MSECAP ALUM 15000UF 20% 63V SCREW |
624 |
|
Datasheet |
LNR | Bulk | Active | 15000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.325 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
B43508A9108M000CAP ALUM 1000UF 20% 400V SNAP TH |
1,157 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 1000 µF | ±20% | 400 V | 120mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 100 Hz | - | 180 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.165" (55.00mm) | - | Through Hole | |
|

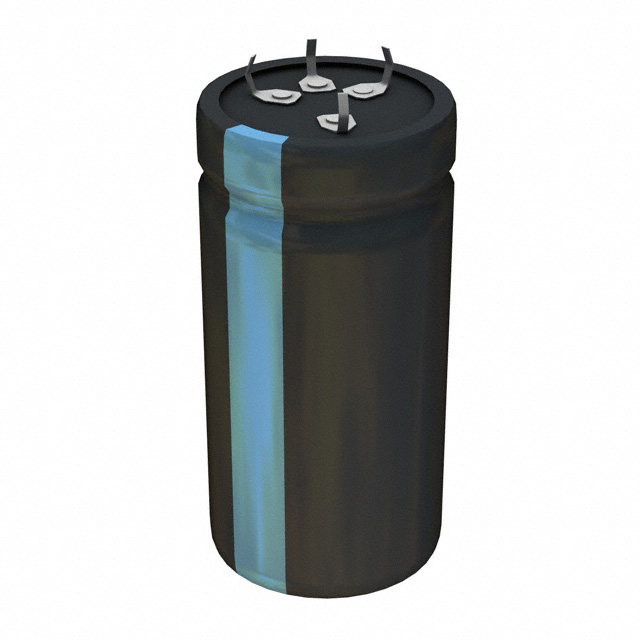

382LX152M400N082CAP ALUM 1500UF 20% 400V SNAP TH |
2,003 |
|
Datasheet |
382LX | Bulk | Active | 1500 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 7.7 A @ 20 kHz | - | - | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|

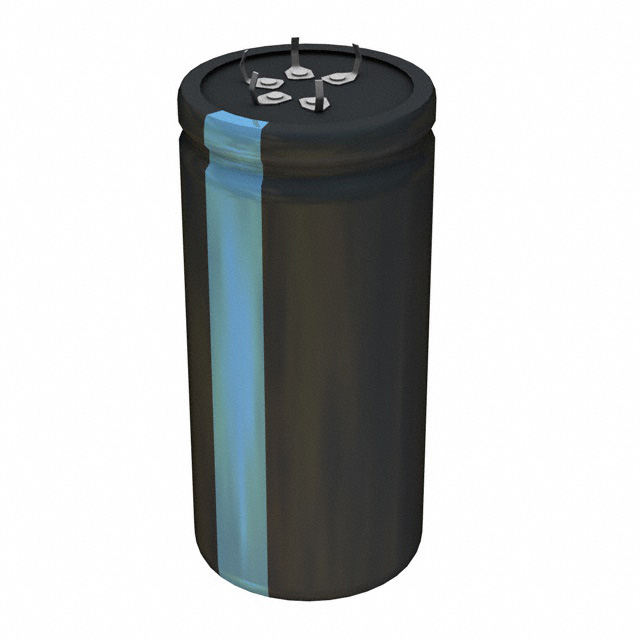

382LX272M400B102VSCAP ALUM 2700UF 20% 400V SNAP TH |
286 |
|
Datasheet |
382LX | Bulk | Active | 2700 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
382LX273M100B102VSCAP ALUM 27000UF 20% 100V SNAP |
257 |
|
Datasheet |
382LX | Bulk | Active | 27000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.53 A @ 120 Hz | 14.41 A @ 20 kHz | - | - | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
LNR2A682MSECAP ALUM 6800UF 20% 100V SCREW |
110 |
|
Datasheet |
LNR | Bulk | Active | 6800 µF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.175 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
PSU18915ACAP ALUM 189UF 125V QC CHAS MT |
14 |
|
Datasheet |
PSU | Bulk | Active | 189 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438" Dia (36.53mm) | 2.810" (71.37mm) | - | Chassis Mount | |
|
600D806G060DJ4CAP ALUM 80UF 60V AXIAL TH |
151 |
|
Datasheet |
600D | Tray | Active | 80 µF | - | 60 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 1.623" L (9.53mm x 41.30mm) | - | - | Through Hole | |
|
MAL220212152E3CAP ALUM 1500UF 20% 200V SCREW |
231 |
|
Datasheet |
202 PML-ST | Box | Active | 1500 µF | ±20% | 200 V | 82mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.86 A @ 100 Hz | 7.29 A @ 10 kHz | 54 mOhms | 0.504" (12.80mm) | 1.390" Dia (35.30mm) | 2.531" (64.30mm) | - | Clamp Mount | |
|

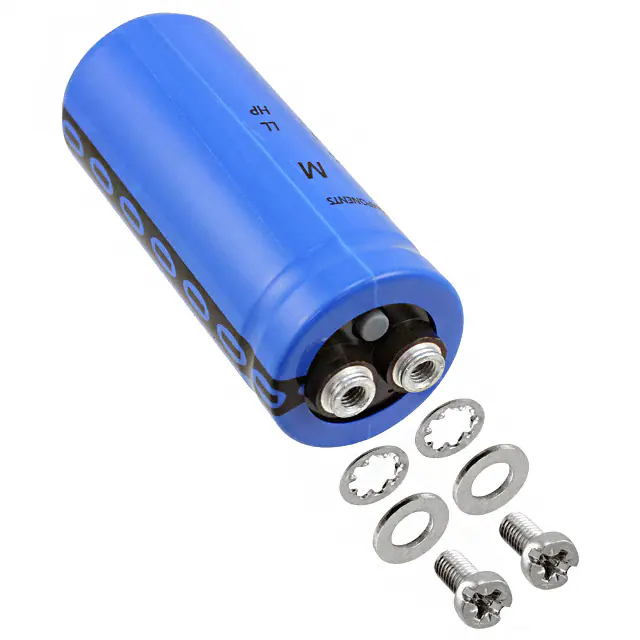

MAL210119332E3CAP ALUM 3300UF 20% 100V SCREW |
650 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 3300 µF | ±20% | 100 V | 42mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 100 Hz | - | 27 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
ALC80C222FP400CAP ALUM 2200UF 20% 400V SNAP TH |
1,205 |
|
Datasheet |
ALC80 | Bulk | Active | 2200 µF | ±20% | 400 V | 59.59mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.24 A @ 100 Hz | 16.09 A @ 10 kHz | 32 mOhms | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
DCMX192T200AC2ACAP ALUM 1900UF 200V SCREW CHAS |
123 |
|
Datasheet |
DCMX | Bulk | Active | 1900 µF | -10%, +50% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
MAL209526102E3CAP ALUM 1000UF 20% 400V SNAP TH |
442 |
|
Datasheet |
095 PLL-4TSI | Bulk | Active | 1000 µF | ±20% | 400 V | 107mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.2 A @ 100 Hz | - | 64 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.756" (70.00mm) | - | Through Hole | |
|
ALS80A124KE025CAP ALUM 120000UF 20% 25V SCREW |
120 |
|
Datasheet |
ALS80 | Bulk | Active | 120000 µF | ±20% | 25 V | 18mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 100 Hz | 16.4 A @ 10 kHz | 17 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
B43520B9108M000CAP ALUM 1000UF 20% 400V RADIAL |
113 |
|
Datasheet |
B43520 | Bulk | Not For New Designs | 1000 µF | ±20% | 400 V | 65mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.77 A @ 100 Hz | - | 80 mOhms | - | 1.575" Dia (40.00mm) | 2.520" (64.00mm) | - | Through Hole | |
|

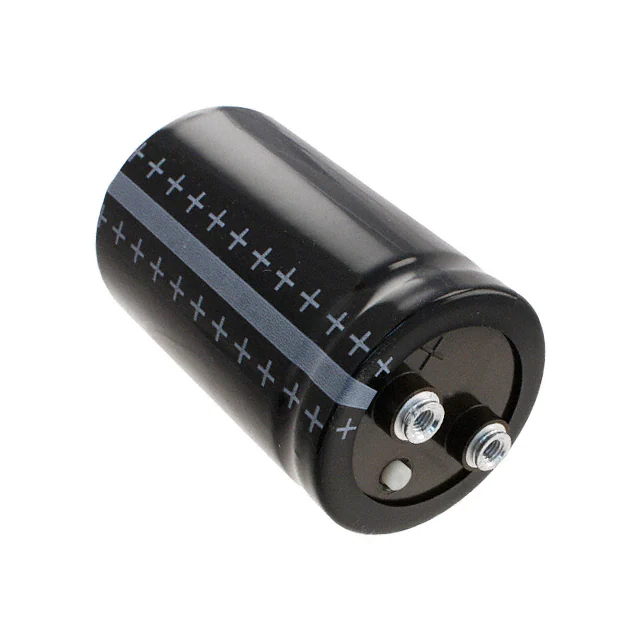

B41456B4150M000CAP ALUM 150000UF 20% 16V SCREW |
191 |
|
Datasheet |
B41456 | Bulk | Active | 150000 µF | ±20% | 16 V | 8.4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 6.8 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
ALS70A513KF063CAP ALUM 51000UF 20% 63V SCREW |
210 |
|
Datasheet |
ALS70 | Bulk | Active | 51000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 21.5 A @ 10 kHz | 13 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
MAL229956821E3CAP ALUM 820UF 20% 400V SNAP TH |
114 |
|
Datasheet |
299 PHL-4TSI | Bulk | Active | 820 µF | ±20% | 400 V | 150mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.44 A @ 100 Hz | 5.16 A @ 10 kHz | 110 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole |
