Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNY2G272MSEGCAP ALUM 2700UF 20% 400V SCREW |
26 |
|
Datasheet |
LNY | Bulk | Active | 2700 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.6 A @ 120 Hz | 16.24 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
ALS80A823MF063CAP ALUM 82000UF 20% 63V SCREW |
135 |
|
Datasheet |
ALS80 | Bulk | Active | 82000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.7 A @ 100 Hz | 25.2 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS71A184MF040CAP ALUM 180000UF 20% 40V SCREW |
35 |
|
Datasheet |
ALS71 | Bulk | Active | 180000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | 29.2 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|

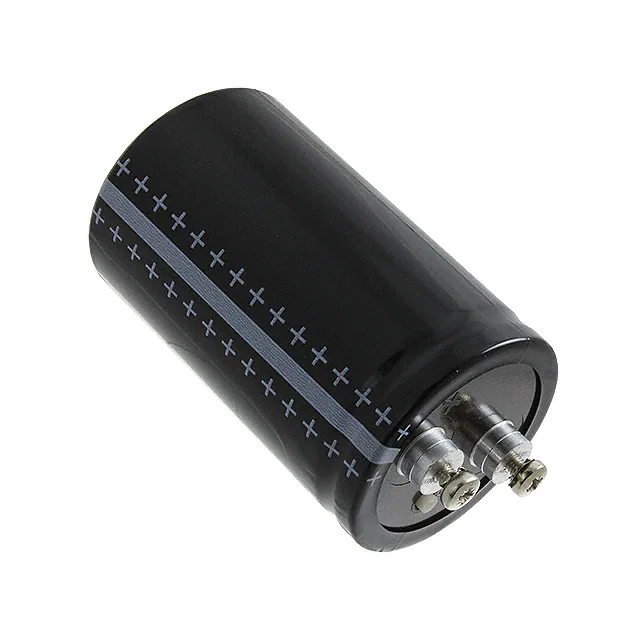

B41456B8479M000CAP ALUM 47000UF 20% 63V SCREW |
50 |
|
Datasheet |
B41456 | Bulk | Active | 47000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 A @ 100 Hz | - | 9.4 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
ALS31A473MF063CAP ALUM 47000UF 20% 63V SCREW |
214 |
|
Datasheet |
ALS31 | Box | Active | 47000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.7 A @ 100 Hz | 26.5 A @ 10 kHz | 7 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.134" (105.00mm) | - | Chassis, Stud Mount | |
|
B43705A5108M000CAP ALUM 1000UF 20% 450V SCREW |
140 |
|
Datasheet |
B43705 | Bulk | Active | 1000 µF | ±20% | 450 V | 110mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.69 A @ 100 Hz | - | 180 mOhms | 0.874" (22.20mm) | 2.031" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
ALS30A104MF040CAP ALUM 100000UF 20% 40V SCREW |
92 |
|
Datasheet |
ALS30 | Box | Active | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.3 A @ 100 Hz | 26.6 A @ 10 kHz | 6 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
LNY2W222MSEFCAP ALUM 2200UF 20% 450V SCREW |
27 |
|
Datasheet |
LNY | Bulk | Active | 2200 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.2 A @ 120 Hz | 12.88 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.921" (125.00mm) | - | Chassis Mount | |
|
B41458B7100M000CAP ALUM 100000UF 20% 40V SCREW |
103 |
|
Datasheet |
B41458 | Bulk | Active | 100000 µF | ±20% | 40 V | 8.2mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 7 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
LNY2V472MSEFCAP ALUM 4700UF 20% 350V SCREW |
26 |
|
Datasheet |
LNY | Bulk | Active | 4700 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 120 Hz | 22.26 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 5.512" (140.00mm) | - | Chassis Mount | |
|
DCMX812T100BB2BCAP ALUM 8100UF 100V SCREW CHAS |
46 |
|
Datasheet |
DCMX | Bulk | Active | 8100 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875" (22.23mm) | 2.000" Dia (50.80mm) | 3.187" (80.95mm) | - | Chassis Mount | |
|
LNC2W182MSEGCAP ALUM 1800UF 20% 450V SCREW |
48 |
|
Datasheet |
LNC | Bulk | Active | 1800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 16.66 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 2.874" (73.00mm) | - | Chassis Mount | |
|
MLP112M100EK0ACAP ALUM 1100UF 20% 100V FLATPAC |
60 |
|
Datasheet |
MLP | Bulk | Active | 1100 µF | ±20% | 100 V | 112mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
ALS70A512MF400CAP ALUM 5100UF 20% 400V SCREW |
46 |
|
Datasheet |
ALS70 | Bulk | Active | 5100 µF | ±20% | 400 V | 36mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
B43704A5158M000CAP ALUM 1500UF 20% 450V SCREW |
48 |
|
Datasheet |
B43704 | Bulk | Active | 1500 µF | ±20% | 450 V | 65mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.47 A @ 100 Hz | - | - | 0.874" (22.20mm) | 2.031" Dia (51.60mm) | 3.846" (97.70mm) | - | Chassis Mount | |
|

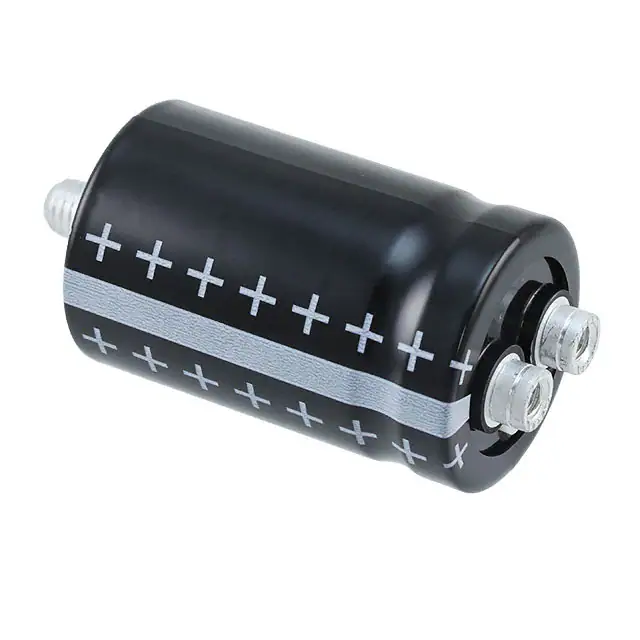

B43727A9478M600CAP ALUM 4700UF 20% 400V SCREW |
60 |
|
Datasheet |
B43727 | Bulk | Active | 4700 µF | ±20% | 400 V | 26mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 100 Hz | - | 45 mOhms | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 3.846" (97.70mm) | - | Chassis, Stud Mount | |
|

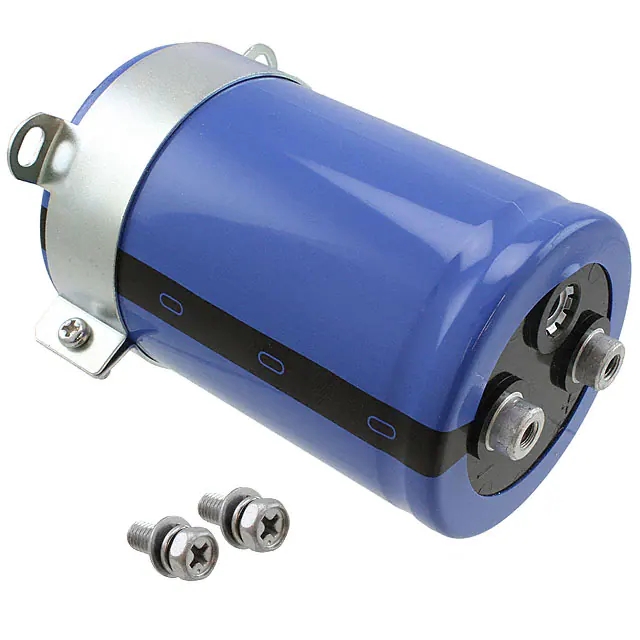

LNR1K473MSECAP ALUM 47000UF 20% 80V SCREW |
26 |
|
Datasheet |
LNR | Bulk | Active | 47000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 120 Hz | 14.605 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
CGS551T250R4CCAP ALUM 550UF 250V SCREW CHAS M |
46 |
|
Datasheet |
CGS | Bulk | Active | 550 µF | -10%, +50% | 250 V | 98mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 5.4 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
500C103T100BJ2BCAP ALUM 10000UF 100V SCREW CHAS |
43 |
|
Datasheet |
500C | Bulk | Active | 10000 µF | -10%, +50% | 100 V | 23mOhm @ 120Hz | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
MAL210212682E3CAP ALUM 6800UF 20% 200V SCREW |
283 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 6800 µF | ±20% | 200 V | 25mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 22.8 A @ 10 kHz | 18 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.134" (105.00mm) | - | Chassis Mount |
