Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43510B9108M000CAP ALUM 1000UF 20% 400V SNAP TH |
258 |
|
Datasheet |
B43510 | Bulk | Not For New Designs | 1000 µF | ±20% | 400 V | 65mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.77 A @ 100 Hz | - | 80 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
B41560A5100M000CAP ALUM 100000UF 20% 25V SCREW |
734 |
|
Datasheet |
B41560 | Bulk | Active | 100000 µF | ±20% | 25 V | 9.4mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 7.6 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|

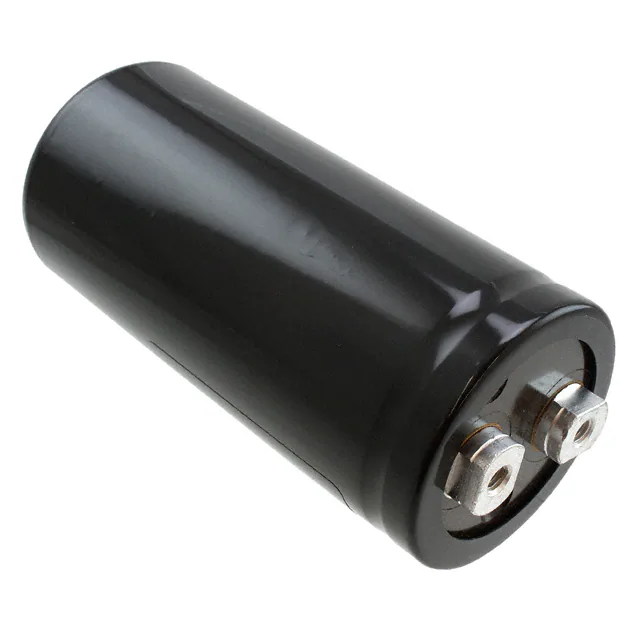

ALS30A152KF400CAP ALUM 1500UF 20% 400V SCREW |
120 |
|
Datasheet |
ALS30 | Bulk | Active | 1500 µF | ±20% | 400 V | 92mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 100 Hz | 13.1 A @ 10 kHz | 65 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
DCMX122U400AF2ACAP ALUM 1200UF 400V SCREW CHAS |
144 |
|
Datasheet |
DCMX | Bulk | Active | 1200 µF | -10%, +75% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
LNC2V152MSEFCAP ALUM 1500UF 20% 350V SCREW |
144 |
|
Datasheet |
LNC | Bulk | Active | 1500 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13.02 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.677" (68.00mm) | - | Chassis Mount | |
|
MAL250117122E3CAP ALUM 1200UF 20% 450V SCREW |
133 |
|
Datasheet |
501 PGM-ST | Box | Active | 1200 µF | ±20% | 450 V | 139mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.89 A @ 100 Hz | 8.835 A @ 10 kHz | 97 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.299" (83.80mm) | - | Chassis Mount | |
|
ALS80A184KF025CAP ALUM 180000UF 20% 25V SCREW |
158 |
|
Datasheet |
ALS80 | Bulk | Active | 180000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | 18.7 A @ 10 kHz | 13 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
MAL210118103E3CAP ALUM 10000UF 20% 63V SCREW |
280 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 10000 µF | ±20% | 63 V | 27mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 10.53 A @ 10 kHz | 19 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | - | Chassis Mount | |
|
301A102M050HL2CAP ALUM 1000UF 20% 50V RADIAL |
427 |
|
Datasheet |
301 | Tray | Active | 1000 µF | ±20% | 50 V | - | 4000 Hrs @ 85°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.300" (7.62mm) | 0.895" Dia (22.73mm) | 2.125" (53.98mm) | - | Through Hole | |
|
THA122M100AD1CCAP ALUM 1200UF 20% 100V FLTPCK |
169 |
|
Datasheet |
THA | Bulk | Active | 1200 µF | ±20% | 100 V | 130mOhm @ 120Hz | 5000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.6 A @ 20 kHz | - | 0.394" (10.00mm) | 2.618" L x 0.953" W (66.50mm x 24.20mm) | 0.335" (8.50mm) | - | Through Hole | |
|
MAL210158103E3CAP ALUM 10000UF 20% 63V SCREW |
278 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 10000 µF | ±20% | 63 V | 27mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | - | 19 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 3.413" (86.70mm) | - | Chassis Mount | |
|
B43707A9228M600CAP ALUM 2200UF 20% 400V SCREW |
128 |
|
Datasheet |
B43707 | Bulk | Active | 2200 µF | ±20% | 400 V | 55mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.65 A @ 100 Hz | - | 85 mOhms | 0.874" (22.20mm) | 2.031" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
MAL210618103E3CAP ALUM 10000UF 63V SCREW CHAS |
223 |
|
Datasheet |
106 PED-ST | Bulk | Active | 10000 µF | -10%, +30% | 63 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | - | 9 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 3.535" (89.80mm) | - | Chassis Mount | |
|
CGS203U050V5LCAP ALUM 20000UF 50V SCREW CHAS |
138 |
|
Datasheet |
CGS | Bulk | Active | 20000 µF | -10%, +75% | 50 V | 14mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.2 A @ 120 Hz | 17.16 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
MAL229967821E3CAP ALUM 820UF 20% 450V SNAP TH |
250 |
|
Datasheet |
299 PHL-4TSI | Box | Active | 820 µF | ±20% | 450 V | 140mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.73 A @ 100 Hz | 5.595 A @ 10 kHz | 100 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
CGS203U025V3CCAP ALUM 20000UF 25V SCREW CHAS |
114 |
|
Datasheet |
CGS | Bulk | Active | 20000 µF | -10%, +75% | 25 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 120 Hz | 10.4 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
CGS103U075V4CCAP ALUM 10000UF 75V SCREW CHAS |
9 |
|
Datasheet |
CGS | Bulk | Active | 10000 µF | -10%, +75% | 75 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 120 Hz | 11.7 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

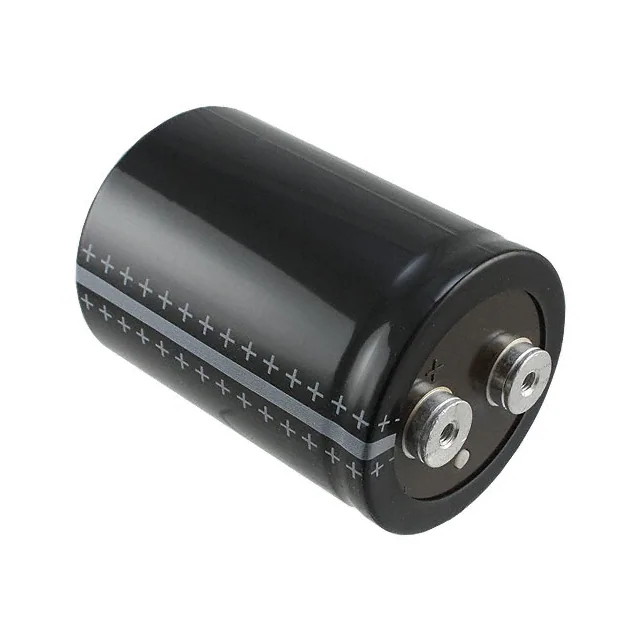

B41456B8689M000CAP ALUM 68000UF 20% 63V SCREW |
590 |
|
Datasheet |
B41456 | Bulk | Active | 68000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 6.5 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.161" (105.70mm) | - | Chassis Mount | |
|
ALS71A123MF200CAP ALUM 12000UF 20% 200V SCREW |
106 |
|
Datasheet |
ALS71 | Bulk | Active | 12000 µF | ±20% | 200 V | 29mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
MAL210618153E3CAP ALUM 15000UF 63V SCREW CHAS |
161 |
|
Datasheet |
106 PED-ST | Bulk | Active | 15000 µF | -10%, +30% | 63 V | 16mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | - | 11 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 4.402" (111.80mm) | - | Chassis Mount |
