Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

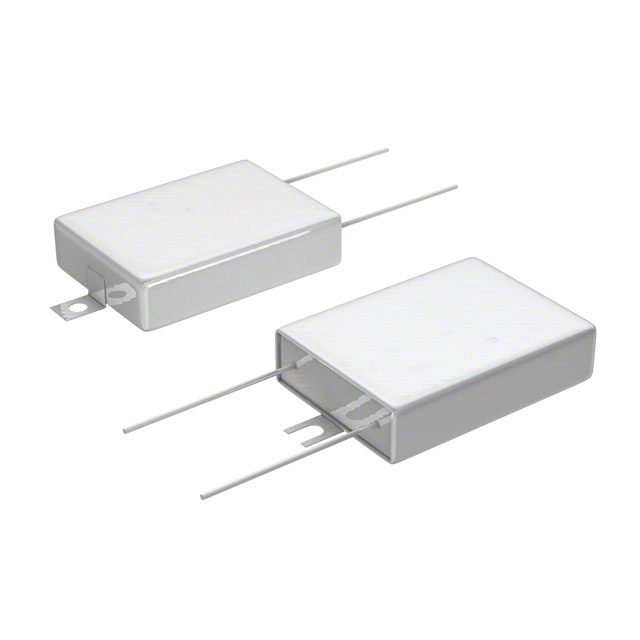

MLP662M050EA0ACAP ALUM 6600UF 20% 50V FLATPACK |
33 |
|
Datasheet |
MLP | Bulk | Active | 6600 µF | ±20% | 50 V | 62mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 2.000" L x 1.750" W (50.80mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
CGS332T350X5LCAP ALUM 3300UF 350V SCREW CHAS |
97 |
|
Datasheet |
CGS | Bulk | Active | 3300 µF | -10%, +50% | 350 V | 44mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 120 Hz | 14.25 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
MLSH121M250JK0CCAP ALUM 120UF 20% 250V RADIAL |
33 |
|
Datasheet |
MLSH | Bulk | Active | 120 µF | ±20% | 250 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Hermetically Sealed | - | - | - | 0.500" (12.70mm) | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 1.500" (38.10mm) | - | Through Hole | |
|
MLP102M200EB1ACAP ALUM 1000UF 20% 200V FLATPAC |
10 |
|
Datasheet |
MLP | Bulk | Active | 1000 µF | ±20% | 200 V | 158mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 5 A @ 20 kHz | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
DCM602T350DC2BCAP ALUM 6000UF 350V SCREW CHAS |
33 |
|
Datasheet |
DCM | Bulk | Active | 6000 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
ELXR451LGN822MFK0UCAP ALUM 8200UF 20% 450V SCREW |
105 |
|
- |
LXR | Bulk | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 32 A @ 120 Hz | 44.8 A @ 3 kHz | - | 1.240" (31.50mm) | 3.504" Dia (89.00mm) | 7.638" (194.00mm) | - | Chassis Mount | |
|
MLSG561M250EB1CCAP ALUM 560UF 20% 250V FLTPCK |
49 |
|
Datasheet |
Flatpack™- MLSG | Bulk | Active | 560 µF | ±20% | 250 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLSH112M060JK0CCAP ALUM 1100UF 20% 60V RADIAL |
97 |
|
Datasheet |
MLSH | Bulk | Active | 1100 µF | ±20% | 60 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Hermetically Sealed | - | - | - | 0.500" (12.70mm) | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 1.500" (38.10mm) | - | Through Hole | |
|
MLS821M200EB1ACAP ALUM 820UF 20% 200V FLATPACK |
10 |
|
Datasheet |
MLS | Bulk | Active | 820 µF | ±20% | 200 V | 172mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 7.7 A @ 120 Hz | 10 A @ 20 kHz | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
B43703B5109M000CAP ALUM 10000UF 20% 450V SCREW |
33 |
|
Datasheet |
B43703 | Bulk | Active | 10000 µF | ±20% | 450 V | 9.9mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | - | - | 1.248" (31.70mm) | 3.543" Dia (90.00mm) | 5.728" (145.50mm) | - | Chassis Mount | |
1C.jpg)
|
MLS221M250EK1CCAP ALUM 220UF 20% 250V FLTPCK |
270 |
|
Datasheet |
MLS | Bulk | Active | 220 µF | ±20% | 250 V | 597mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.1 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLS113M040EB1ACAP ALUM 11000UF 20% 40V FLATPAC |
65 |
|
Datasheet |
MLS | Bulk | Active | 11000 µF | ±20% | 40 V | 36mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 16.9 A @ 120 Hz | 19.5 A @ 20 kHz | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|

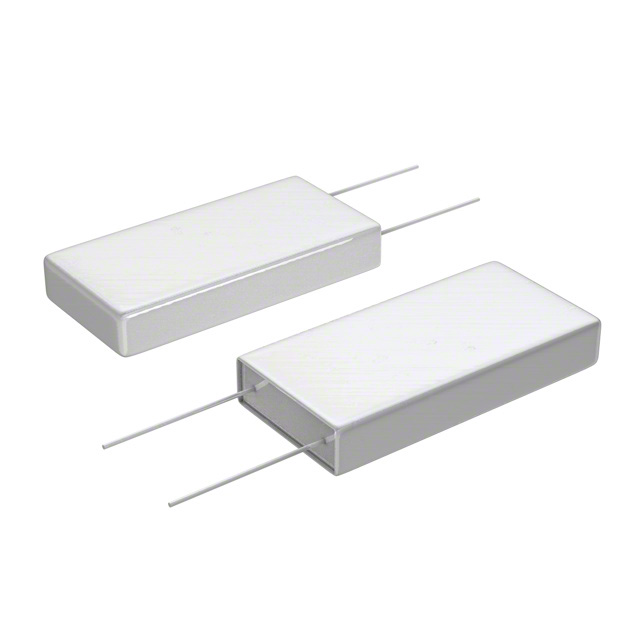

MLS561M250EB0CCAP ALUM 560UF 20% 250V FLTPCK |
15 |
|
Datasheet |
MLS | Bulk | Active | 560 µF | ±20% | 250 V | 240mOhm | 10000 Hrs @ 85°C | -55°C ~ 125°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
UVR1J101MPD1TDCAP ALUM 100UF 20% 63V RADIAL TH |
4,000 |
|
Datasheet |
UVR | Cut Tape (CT) | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 450 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
100YXJ4.7M5X11CAP ALUM 4.7UF 20% 100V RADIAL |
4,126 |
|
Datasheet |
YXJ | Bulk | Active | 4.7 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27.3 mA @ 120 Hz | 65 mA @ 100 kHz | 2.5 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860010272007CAP ALUM 150UF 20% 10V RADIAL TH |
1,958 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 150 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 231 mA @ 120 Hz | 318.78 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UCM1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
3,000 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
860160272008CAP ALUM 82UF 20% 10V RADIAL TH |
1,925 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 82 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 99.84 mA @ 120 Hz | 192 mA @ 100 kHz | 1.15 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860240272002CAP ALUM 68UF 20% 10V RADIAL TH |
1,853 |
|
Datasheet |
WCAP-AT1H | Cut Tape (CT) | Active | 68 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 130 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
860160272007CAP ALUM 68UF 20% 10V RADIAL TH |
1,770 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 68 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 84.24 mA @ 120 Hz | 162 mA @ 100 kHz | 1.3 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
