Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
865250140002CAP ALUM 22UF 20% 6.3V SMD |
2,522 |
|
Datasheet |
WCAP-ASNP | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 28 mA @ 120 Hz | 42 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ECE-A1HKA4R7BCAP ALUM 4.7UF 20% 50V RADIAL TH |
11,978 |
|
Datasheet |
KA | Cut Tape (CT) | Active | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 mA @ 120 Hz | 39.1 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.157" Dia (4.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
EKYB800ELL120ME11DCAP ALUM 12UF 20% 80V RADIAL TH |
5,948 |
|
Datasheet |
KYB | Bulk | Active | 12 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65.2 mA @ 120 Hz | 163 mA @ 100 kHz | 800 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ECE-A1HKA3R3ICAP ALUM 3.3UF 20% 50V RADIAL TH |
1,943 |
|
Datasheet |
KA | Cut Tape (CT) | Active | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 30.6 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.157" Dia (4.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
ECA-1AM331ICAP ALUM 330UF 20% 10V RADIAL TH |
4,000 |
|
Datasheet |
M-A | Cut Tape (CT) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 561 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.480" (12.20mm) | - | Through Hole | |
|
6.3YXS150MEFC5X11CAP ALUM 150UF 20% 6.3V RADIAL |
2,952 |
|
Datasheet |
YXS | Bulk | Active | 150 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 210 mA @ 100 kHz | 580 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEE-1HA2R2ARCAP ALUM 2.2UF 20% 50V SMD |
7,682 |
|
Datasheet |
S | Tape & Reel (TR) | Not For New Designs | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
106SML035MCAP ALUM 10UF 20% 35V SMD |
3,270 |
|
Datasheet |
SML | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | 23.21Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EEU-FS1A181BCAP ALUM 180UF 20% 10V RADIAL TH |
8,000 |
|
Datasheet |
FS-A | Cut Tape (CT) | Active | 180 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 300 mOhms | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EEE-0JA220ARCAP ALUM 22UF 20% 6.3V SMD |
9,740 |
|
Datasheet |
S | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 29 mA @ 120 Hz | 49.3 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UPS2F3R3MPD1TDCAP ALUM 3.3UF 20% 315V RADIAL |
6,998 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±20% | 315 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
EEE-1HA1R0ARCAP ALUM 1UF 20% 50V SMD |
6,950 |
|
Datasheet |
S | Tape & Reel (TR) | Not For New Designs | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 10 mA @ 120 Hz | 17 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEE-HA1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
3,758 |
|
Datasheet |
HA | Tape & Reel (TR) | Not For New Designs | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UPJ1A471MPD1TACAP ALUM 470UF 20% 10V RADIAL TH |
2,671 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 475 mA @ 120 Hz | - | 190 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|

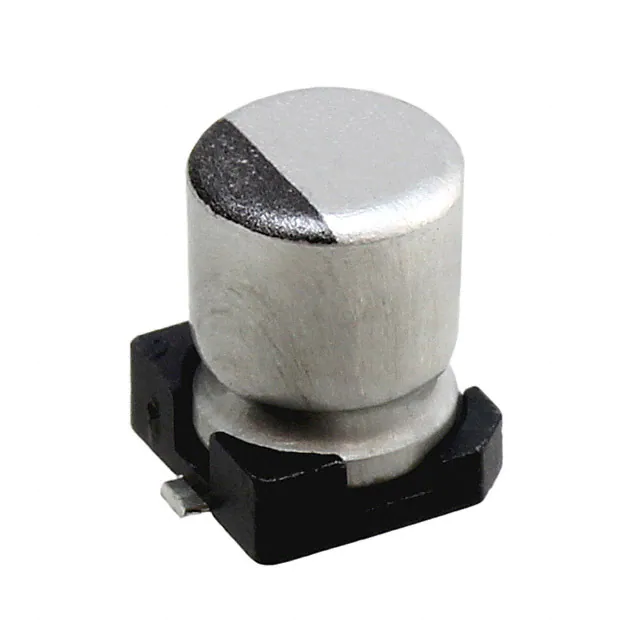

UWG1V4R7MCL1GBCAP ALUM 4.7UF 20% 35V SMD |
1,740 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 30 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UPJ1C271MPD1TDCAP ALUM 270UF 20% 16V RADIAL TH |
1,182 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 270 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | - | 220 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
RVS-6V101MF55U-RCAP ALUM 100UF 20% 6.3V SMD |
40,003 |
|
Datasheet |
RVS | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | 5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 61 mA @ 120 Hz | 76.25 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-HA1H3R3ARCAP ALUM 3.3UF 20% 50V SMD |
6,078 |
|
Datasheet |
HA | Tape & Reel (TR) | Not For New Designs | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
6.3YXS470MEFC6.3X11CAP ALUM 470UF 20% 6.3V RADIAL |
2,656 |
|
Datasheet |
YXS | Bulk | Active | 470 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 187 mA @ 120 Hz | 340 mA @ 100 kHz | 220 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEE-1EA100ARCAP ALUM 10UF 20% 25V SMD |
4,471 |
|
Datasheet |
S | Tape & Reel (TR) | Not For New Designs | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
