Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860160372009CAP ALUM 68UF 20% 16V RADIAL TH |
1,864 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 68 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 118.56 mA @ 120 Hz | 228 mA @ 100 kHz | 1.18 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860080273006CAP ALUM 180UF 20% 10V RADIAL TH |
1,479 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 180 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 350 mA @ 100 kHz | 220 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
860080273007CAP ALUM 220UF 20% 10V RADIAL TH |
1,464 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 390 mA @ 100 kHz | 180 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|

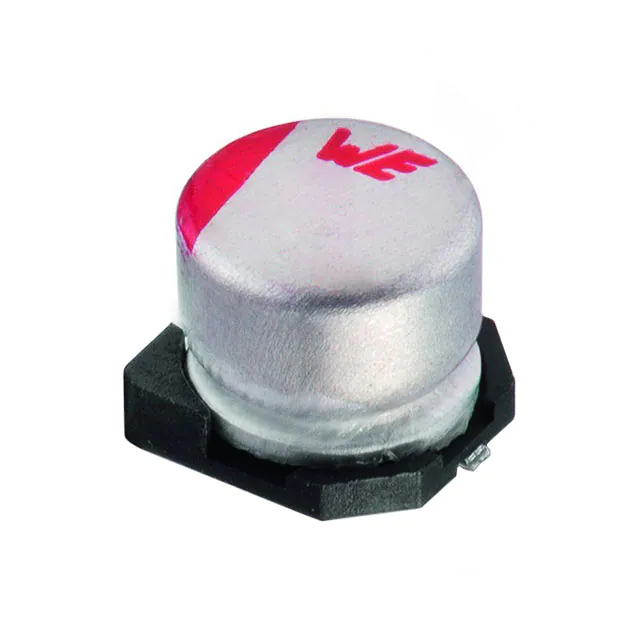

865080140002CAP ALUM 27UF 20% 6.3V SMD |
1,980 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 27 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 51.35 mA @ 120 Hz | 79 mA @ 100 kHz | 1.98 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
865090140002CAP ALUM 22UF 20% 6.3V SMD |
1,571 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 42 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
860010473008CAP ALUM 120UF 20% 25V RADIAL TH |
1,284 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 120 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 253 mA @ 120 Hz | 349.14 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
865090640006CAP ALUM 2.2UF 20% 50V SMD |
1,888 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 mA @ 120 Hz | 19.5 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ECA-2AM3R3ICAP ALUM 3.3UF 20% 100V RADIAL |
7,777 |
|
Datasheet |
M-A | Cut Tape (CT) | Active | 3.3 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 68 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
ESK225M100AC3FACAP ALUM 2.2UF 20% 100V RADIAL |
32,545 |
|
Datasheet |
ESK | Cut Tape (CT) | Active | 2.2 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
860240273004CAP ALUM 150UF 20% 10V RADIAL TH |
1,325 |
|
Datasheet |
WCAP-AT1H | Cut Tape (CT) | Active | 150 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 220 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
860160573008CAP ALUM 56UF 20% 35V RADIAL TH |
1,294 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 56 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 146.64 mA @ 120 Hz | 282 mA @ 100 kHz | 750 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|

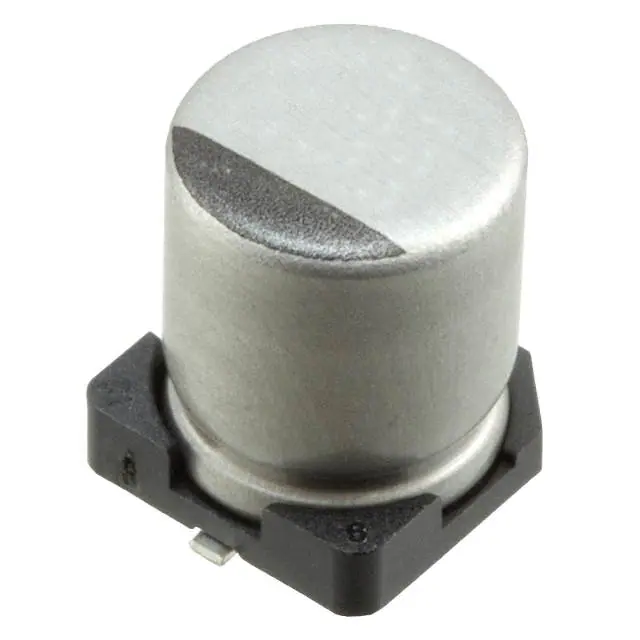

UCM1A331MCL1GSCAP ALUM 330UF 20% 10V SMD |
1,800 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
865090240002CAP ALUM 22UF 20% 10V SMD |
5,927 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 49.5 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
860160573009CAP ALUM 68UF 20% 35V RADIAL TH |
1,482 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 68 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 162.24 mA @ 120 Hz | 312 mA @ 100 kHz | 620 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
865090540003CAP ALUM 4.7UF 20% 35V SMD |
1,960 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 27 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECA-2AM100ICAP ALUM 10UF 20% 100V RADIAL TH |
4,764 |
|
Datasheet |
M-A | Cut Tape (CT) | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
865090343005CAP ALUM 47UF 20% 16V SMD |
2,164 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 58 mA @ 120 Hz | 87 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
865250540003CAP ALUM 4.7UF 20% 35V SMD |
1,810 |
|
Datasheet |
WCAP-ASNP | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 18 mA @ 120 Hz | 27 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
865250540002CAP ALUM 3.3UF 20% 35V SMD |
1,986 |
|
Datasheet |
WCAP-ASNP | Tape & Reel (TR) | Active | 3.3 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 16 mA @ 120 Hz | 24 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
10YXS220MEFC5X11CAP ALUM 220UF 20% 10V RADIAL TH |
2,889 |
|
Datasheet |
YXS | Bulk | Active | 220 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 210 mA @ 100 kHz | 580 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
