Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU2E561MELBCAP ALUM 560UF 20% 250V SNAP TH |
1,457 |
|
Datasheet |
LGU | Bulk | Active | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
MAL213827102E3CAP ALUM 1000UF 20% 40V AXIAL TH |
341 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 1000 µF | ±20% | 40 V | 170mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 970 mA @ 100 Hz | - | 140 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
LGY1E123MELB30CAP ALUM 12000UF 20% 25V SNAP TH |
168 |
|
Datasheet |
LGY | Bulk | Active | 12000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

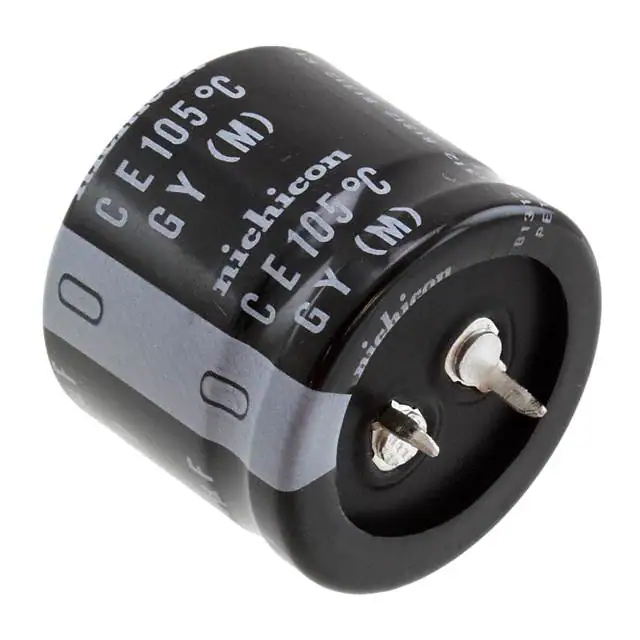

LGY1K222MELB25CAP ALUM 2200UF 20% 80V SNAP TH |
161 |
|
Datasheet |
LGY | Bulk | Active | 2200 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LLS2E821MELACAP ALUM 820UF 20% 250V SNAP TH |
154 |
|
Datasheet |
LLS | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.01 A @ 120 Hz | 4.515 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
500LXW68MEFR14.5X50CAP ALUM 68UF 20% 500V RADIAL TH |
471 |
|
Datasheet |
LXW | Bulk | Active | 68 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.518 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGN2D681MELZ40CAP ALUM 680UF 20% 200V SNAP TH |
246 |
|
Datasheet |
LGN | Bulk | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.625 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKX2W560MESY25CAP ALUM 56UF 20% 450V SNAP TH |
197 |
|
Datasheet |
LKX | Bulk | Active | 56 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 440 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGN2H101MELA30CAP ALUM 100UF 20% 500V SNAP TH |
109 |
|
Datasheet |
LGN | Bulk | Active | 100 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 929.5 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EST228M050AN2AACAP ALUM 2200UF 20% 50V RADIAL |
956 |
|
Datasheet |
EST | Bulk | Active | 2200 µF | ±20% | 50 V | 40mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 3.68 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
380LQ331M350J032CAP ALUM 330UF 20% 350V SNAP TH |
414 |
|
Datasheet |
380LQ | Bulk | Active | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.63 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UBY1K112MHLCAP ALUM 1100UF 20% 80V RADIAL |
179 |
|
Datasheet |
UBY | Bulk | Active | 1100 µF | ±20% | 80 V | 27mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.754 A @ 120 Hz | 4.59 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
MAL225050222E3CAP ALUM 2200UF 20% 35V RADIAL |
131 |
|
Datasheet |
250 RMI-V | Box | Active | 2200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.196 A @ 100 Hz | 2.89 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
LGG2D561MELZ30CAP ALUM 560UF 20% 200V SNAP TH |
256 |
|
Datasheet |
LGG | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.22 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGR2D821MELC30CAP ALUM 820UF 20% 200V SNAP TH |
236 |
|
Datasheet |
LGR | Bulk | Active | 820 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LLG2D681MELA30CAP ALUM 680UF 20% 200V SNAP TH |
213 |
|
Datasheet |
LLG | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.28 A @ 120 Hz | 3.42 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGR2W101MELB30CAP ALUM 100UF 20% 450V SNAP TH |
175 |
|
Datasheet |
LGR | Bulk | Active | 100 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43501A9107M000CAP ALUM 100UF 20% 400V SNAP TH |
801 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 100 µF | ±20% | 400 V | 660mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 790 mA @ 100 Hz | - | 1.06 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMZ421VSN151MP25SCAP ALUM 150UF 20% 420V SNAP TH |
489 |
|
Datasheet |
KMZ | Box | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.244 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
MAL202119331E3CAP ALUM 330UF 20% 100V AXIAL TH |
464 |
|
Datasheet |
021 ASM | Bulk | Active | 330 µF | ±20% | 100 V | 420mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.036 A @ 10 kHz | 400 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole |
