Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400BXW150MEFR16X50CAP ALUM 150UF 20% 400V RADIAL |
175 |
|
Datasheet |
BXW | Bulk | Active | 150 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 995 mA @ 120 Hz | 2.239 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

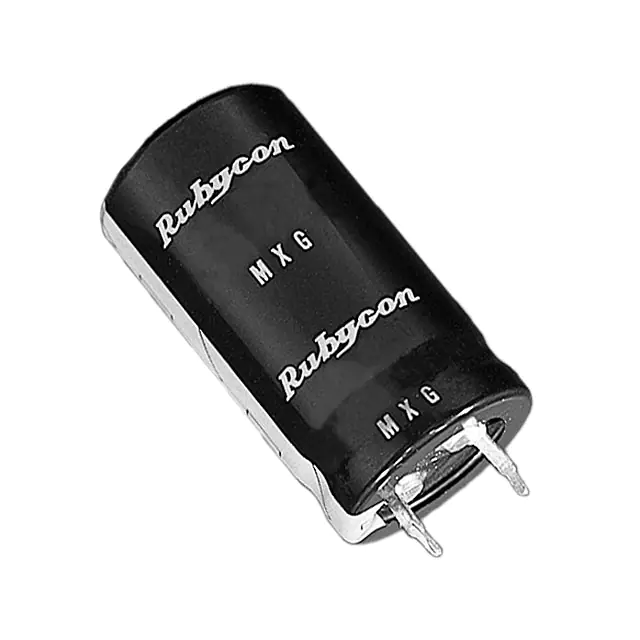

200MXG680MEFCSN20X50CAP ALUM 680UF 20% 200V SNAP TH |
103 |
|
Datasheet |
MXG | Bulk | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.34 A @ 120 Hz | 3.51 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL214690225E3CAP ALUM 2200UF 20% 35V RADIAL |
415 |
|
Datasheet |
146 RTI | Bulk | Active | 2200 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
200MXG820MEFCSN25X35CAP ALUM 820UF 20% 200V SNAP TH |
386 |
|
Datasheet |
MXG | Bulk | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 3.18 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCY2G121MHD3CAP ALUM 120UF 20% 400V RADIAL |
266 |
|
Datasheet |
UCY | Bulk | Active | 120 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 960 mA @ 120 Hz | 1.92 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
100MXC2200MEFCSN30X35CAP ALUM 2200UF 20% 100V SNAP TH |
200 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 2.9325 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

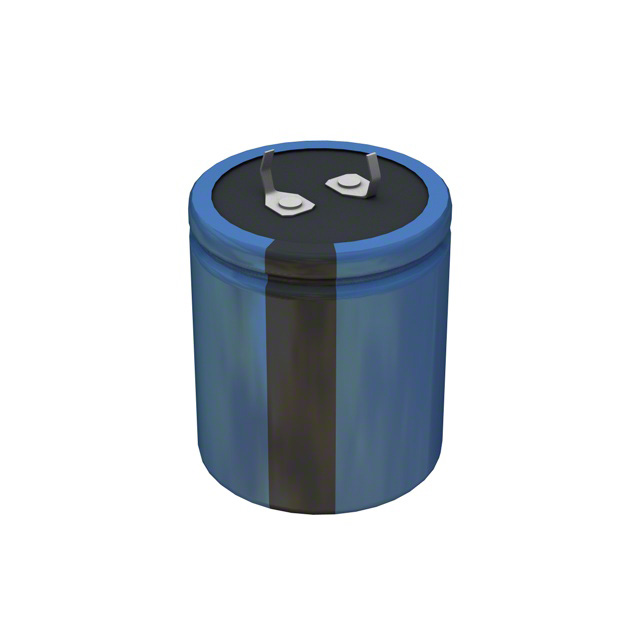

381LX682M063A042CAP ALUM 6800UF 20% 63V SNAP TH |
374 |
|
Datasheet |
381LX | Bulk | Active | 6800 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

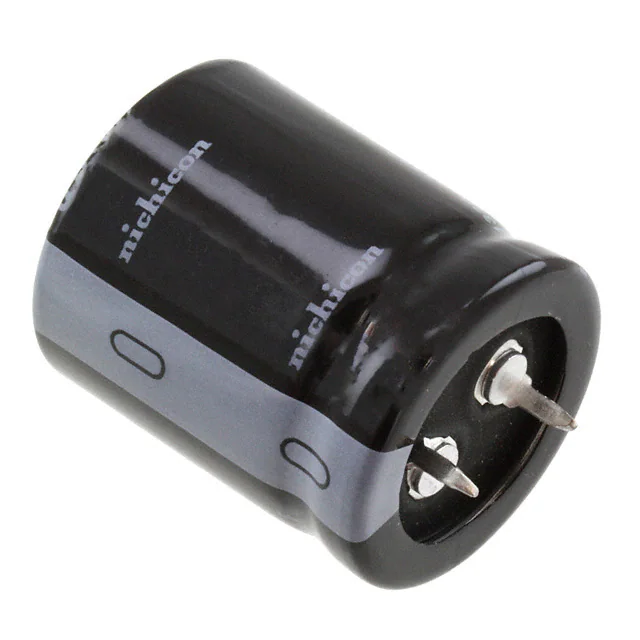

LQSW6151MELA30CAP ALUM 150UF 20% 420V SNAP TH |
183 |
|
Datasheet |
LQS | Bulk | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.2012 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX822M050K032CAP ALUM 8200UF 20% 50V SNAP TH |
8,565 |
|
Datasheet |
380LX | Bulk | Active | 8200 µF | ±20% | 50 V | 40mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL211818151E3CAP ALUM 150UF 20% 63V AXIAL TH |
776 |
|
Datasheet |
118 AHT | Bulk | Active | 150 µF | ±20% | 63 V | 1Ohm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 637 mA @ 10 kHz | 790 mOhms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
LAQ2D181MELA20CAP ALUM 180UF 20% 200V SNAP TH |
208 |
|
Datasheet |
LAQ | Bulk | Active | 180 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LLS2W151MELBCAP ALUM 150UF 20% 450V SNAP TH |
186 |
|
Datasheet |
LLS | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.8447 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LLS2D102MELBCAP ALUM 1000UF 20% 200V SNAP TH |
118 |
|
Datasheet |
LLS | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.15 A @ 120 Hz | 4.725 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
MAL213660222E3CAP ALUM 2200UF 20% 35V RADIAL |
507 |
|
Datasheet |
136 RVI | Bulk | Active | 2200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 100 Hz | - | 22 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EKMQ401VSN221MP45SCAP ALUM 220UF 20% 400V SNAP TH |
1,437 |
|
Datasheet |
KMQ | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ETXH201VSN561MR30SCAP ALUM 560UF 20% 200V SNAP TH |
280 |
|
Datasheet |
TXH | Bulk | Active | 560 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450BXW120MEFR16X45CAP ALUM 120UF 20% 450V RADIAL |
192 |
|
Datasheet |
BXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.98 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
50MXG5600MEFCSN30X25CAP ALUM 5600UF 20% 50V SNAP TH |
172 |
|
Datasheet |
MXG | Bulk | Active | 5600 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.75 A @ 120 Hz | 3.1625 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43644C9227M000CAP ALUM 220UF 20% 400V SNAP TH |
1,599 |
|
Datasheet |
B43644 | Bulk | Active | 220 µF | ±20% | 400 V | 410mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 100 Hz | - | 590 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.268" (32.20mm) | - | Through Hole | |
|
200VXH470MEFCSN22X30CAP ALUM 470UF 20% 200V SNAP TH |
256 |
|
Datasheet |
VXH | Bulk | Active | 470 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.58 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole |
