Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGN2H101MELZ40CAP ALUM 100UF 20% 500V SNAP TH |
184 |
|
Datasheet |
LGN | Bulk | Active | 100 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 929.5 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

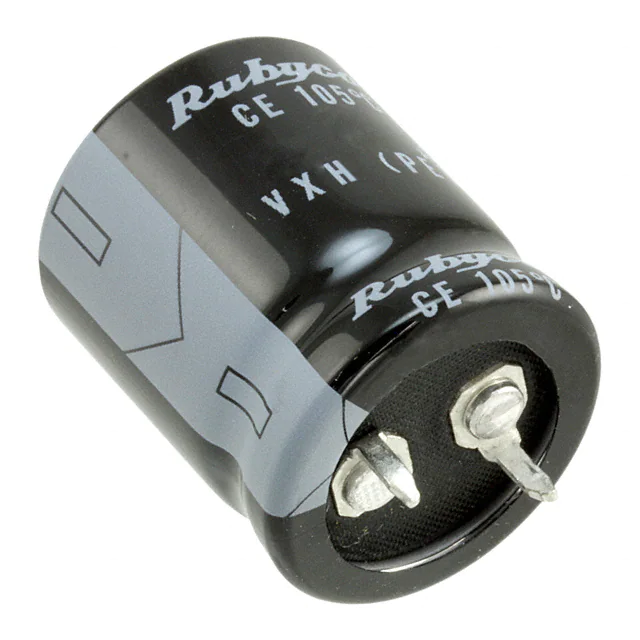

250VXH470MEFCSN25X30CAP ALUM 470UF 20% 250V SNAP TH |
170 |
|
Datasheet |
VXH | Bulk | Active | 470 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.625 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B41231A5279M000CAP ALUM 27000UF 20% 25V SNAP TH |
252 |
|
Datasheet |
B41231 | Bulk | Active | 27000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.22 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UHW1K152MHDCAP ALUM 1500UF 20% 80V RADIAL |
118 |
|
Datasheet |
UHW | Bulk | Active | 1500 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.106 A @ 120 Hz | 3.51 A @ 100 kHz | 28 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

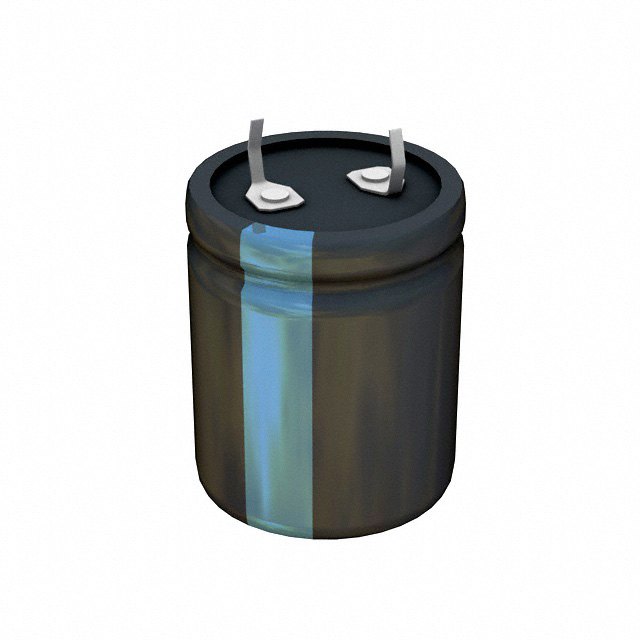

380LQ682M050J022CAP ALUM 6800UF 20% 50V SNAP TH |
8,545 |
|
Datasheet |
380LQ | Bulk | Active | 6800 µF | ±20% | 50 V | 73mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.22 A @ 120 Hz | 3.71 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLP471M200E1P3CAP ALUM 470UF 20% 200V SNAP TH |
2,298 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 470 µF | ±20% | 200 V | 423mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SK102M016STCAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 1000 µF | ±20% | 16 V | 210mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
B43504A2337M000CAP ALUM 330UF 20% 200V SNAP TH |
818 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 330 µF | ±20% | 200 V | 390mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | 470 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
63MXG3300MEFCSN25X30CAP ALUM 3300UF 20% 63V SNAP TH |
189 |
|
Datasheet |
MXG | Bulk | Active | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 2.6795 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
860020681032CAP ALUM 3300UF 20% 50V RADIAL |
196 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 3300 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.24 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UPZ2W820MHD6CAP ALUM 82UF 20% 450V RADIAL TH |
300 |
|
Datasheet |
UPZ | Bulk | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
450BXW100MEFR16X45CAP ALUM 100UF 20% 450V RADIAL |
170 |
|
Datasheet |
BXW | Bulk | Active | 100 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.89 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SK331M035STCAP ALUM 330UF 20% 35V RADIAL TH |
629 |
|
Datasheet |
SK | Bulk | Active | 330 µF | ±20% | 35 V | 480mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
PEH534VCD3220M2CAP ALUM 220UF 20% 400V SNAP TH |
973 |
|
Datasheet |
PEH534 | Bulk | Active | 220 µF | ±20% | 400 V | 460mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLPX221M400E3P3CAP ALUM 220UF 20% 400V SNAP TH |
945 |
|
Datasheet |
SLPX | Bulk | Active | 220 µF | ±20% | 400 V | 905mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.44 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LAQ2P101MELZ20CAP ALUM 100UF 20% 220V SNAP TH |
235 |
|
Datasheet |
LAQ | Bulk | Active | 100 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 600 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
420HXW150MEFR18X30CAP ALUM 150UF 20% 420V RADIAL |
187 |
|
Datasheet |
HXW | Bulk | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.38 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGJ2G221MELC20CAP ALUM 220UF 20% 400V SNAP TH |
112 |
|
Datasheet |
LGJ | Bulk | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.7303 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
TE1211CAP ALUM 100UF 25V AXIAL TH |
647 |
|
Datasheet |
TE | Bulk | Active | 100 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 0.945" L (9.00mm x 24.00mm) | - | - | Through Hole | |
|
UBY1E622MHL6TNCAP ALUM 6200UF 20% 25V RADIAL |
478 |
|
Datasheet |
UBY | Cut Tape (CT) | Active | 6200 µF | ±20% | 25 V | 25mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 3.825 A @ 120 Hz | 4.5 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
