Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU1H472MELBCAP ALUM 4700UF 20% 50V SNAP TH |
861 |
|
Datasheet |
LGU | Bulk | Active | 4700 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.58 A @ 120 Hz | 2.967 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
UCY2G121MHD6CAP ALUM 120UF 20% 400V RADIAL |
576 |
|
Datasheet |
UCY | Bulk | Active | 120 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 950 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|

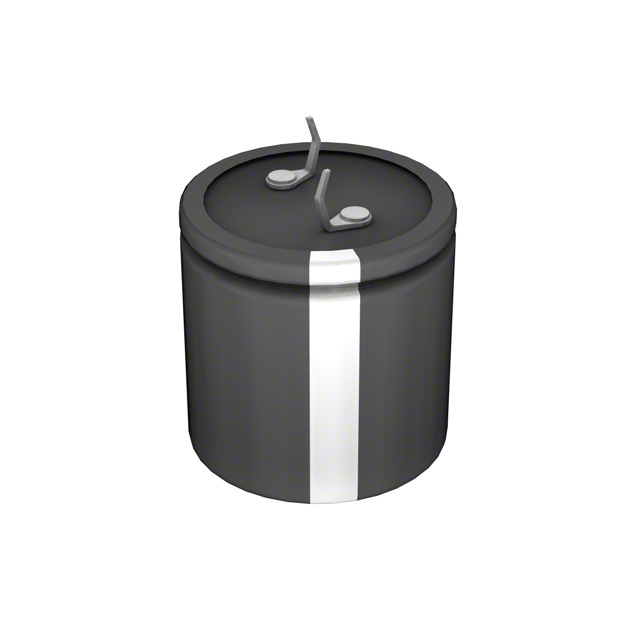

LP151M200C1P3CAP ALUM 150UF 20% 200V SNAP TH |
457 |
|
Datasheet |
LP | Bulk | Active | 150 µF | ±20% | 200 V | 1.65Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 509 mA @ 120 Hz | 712.6 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

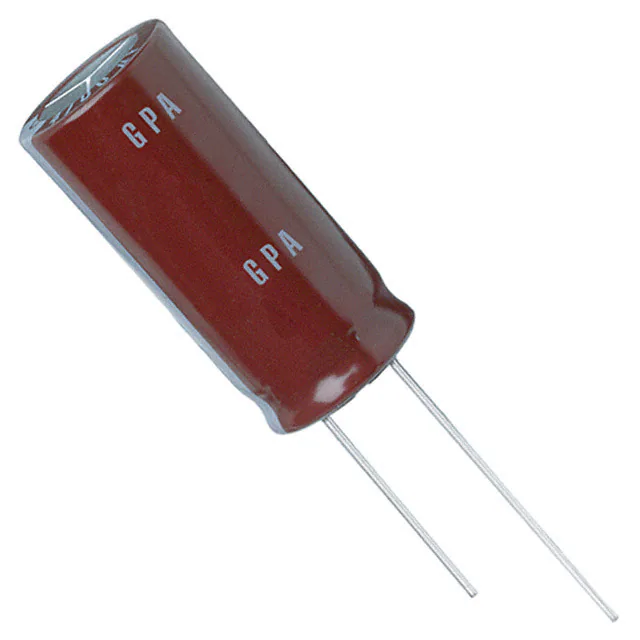

EGPA630ELL152MM35SCAP ALUM 1500UF 20% 63V RADIAL |
274 |
|
Datasheet |
GPA | Bulk | Active | 1500 µF | ±20% | 63 V | 35mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.734 A @ 120 Hz | 2.89 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
450HXW120MEFR16X35CAP ALUM 120UF 20% 450V RADIAL |
219 |
|
Datasheet |
HXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.29 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

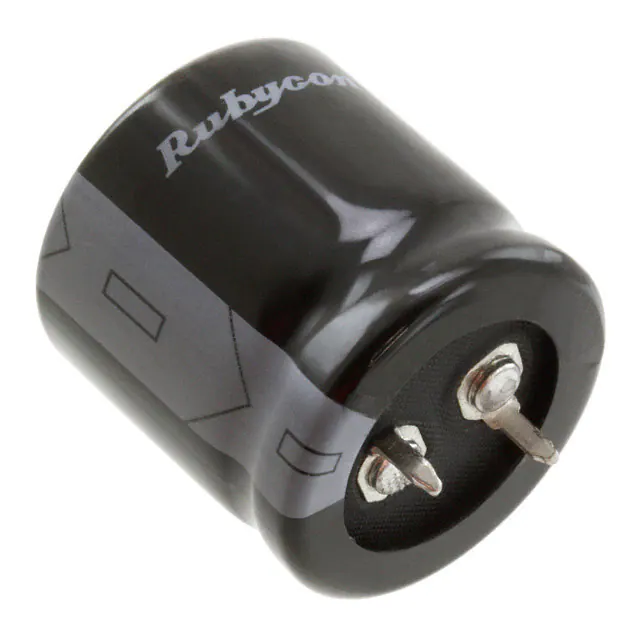

400HXG150MEFCSN25X25CAP ALUM 150UF 20% 400V SNAP TH |
171 |
|
Datasheet |
HXG | Bulk | Active | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.002 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGU2F221MELZCAP ALUM 220UF 20% 315V SNAP TH |
118 |
|
Datasheet |
LGU | Bulk | Active | 220 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.4872 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

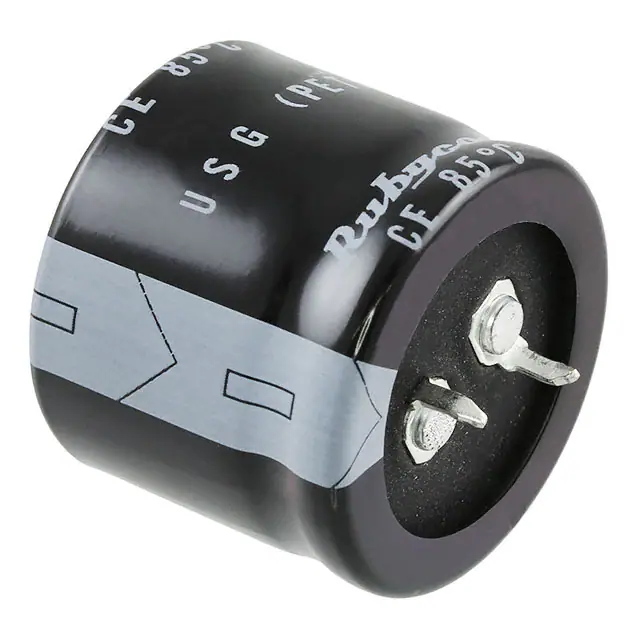

200USG820MEFCSN25X30CAP ALUM 820UF 20% 200V SNAP TH |
2,364 |
|
Datasheet |
USG | Bulk | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | 4.395 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
158TTA035MCAP ALUM 1500UF 20% 35V AXIAL TH |
2,329 |
|
Datasheet |
TTA | Bulk | Active | 1500 µF | ±20% | 35 V | 176.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.6384 A @ 50 kHz | - | - | 0.630" Dia x 1.220" L (16.00mm x 31.00mm) | - | - | Through Hole | |
|
AFK157M2AP44T-FCAP ALUM 150UF 20% 100V SMD |
1,669 |
|
Datasheet |
AFK | Tape & Reel (TR) | Active | 150 µF | ±20% | 100 V | 170mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 594.8 mA @ 120 Hz | 793 mA @ 100 kHz | 170 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.748" W (17.00mm x 19.00mm) | Surface Mount | |
|
|
AFK107M2AP44T-FCAP ALUM 100UF 20% 100V SMD |
1,495 |
|
Datasheet |
AFK | Tape & Reel (TR) | Active | 100 µF | ±20% | 100 V | 170mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 594.8 mA @ 120 Hz | 793 mA @ 100 kHz | 170 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.748" W (17.00mm x 19.00mm) | Surface Mount | |
|
MAL224650182E3CAP ALUM 1800UF 20% 35V RADIAL |
405 |
|
Datasheet |
246 RTI-V | Box | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.625 A @ 100 Hz | 2.5 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LLG2W151MELA25CAP ALUM 150UF 20% 450V SNAP TH |
255 |
|
Datasheet |
LLG | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.4872 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGG2P681MELB25CAP ALUM 680UF 20% 220V SNAP TH |
182 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.475 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGJ2G560MELY20CAP ALUM 56UF 20% 400V SNAP TH |
967 |
|
Datasheet |
LGJ | Bulk | Active | 56 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 786.5 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

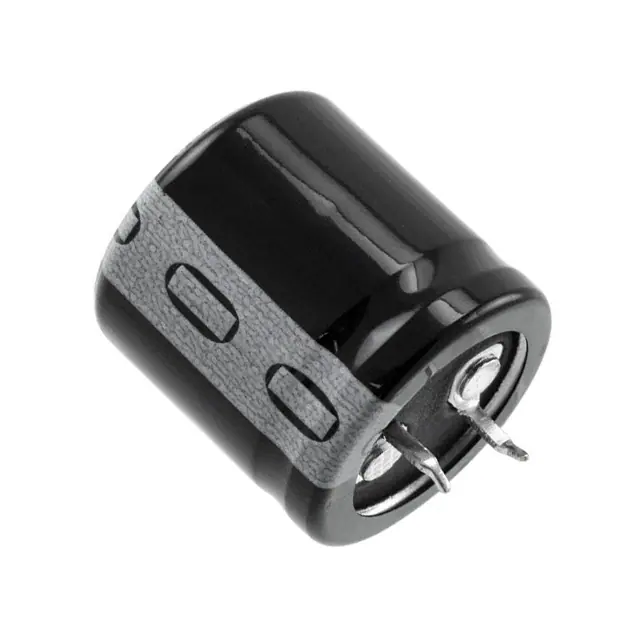

B41231A6828M000CAP ALUM 8200UF 20% 50V SNAP TH |
397 |
|
Datasheet |
B41231 | Bulk | Active | 8200 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.43 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EEU-HD1C153CAP ALUM 15000UF 20% 16V RADIAL |
200 |
|
Datasheet |
HD | Bulk | Active | 15000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.21 A @ 120 Hz | 2.542 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
EEU-HD1A223CAP ALUM 22000UF 20% 10V RADIAL |
112 |
|
Datasheet |
HD | Bulk | Active | 22000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|

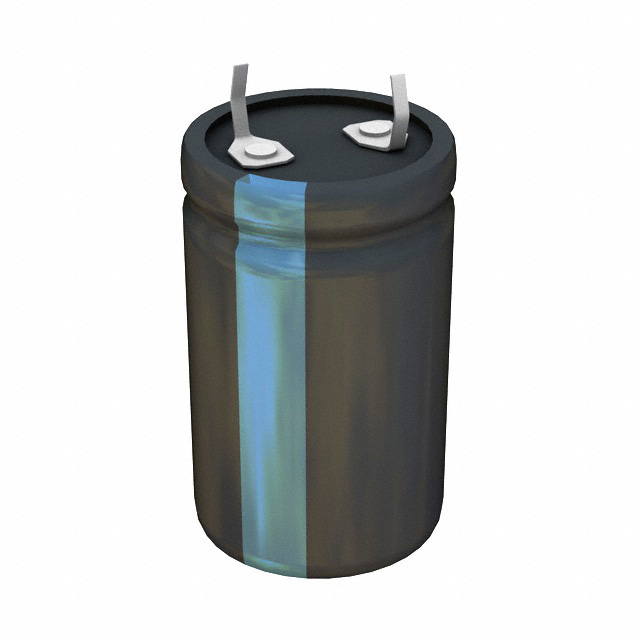

380LX103M025H032CAP ALUM 10000UF 20% 25V SNAP TH |
2,632 |
|
Datasheet |
380LX | Bulk | Active | 10000 µF | ±20% | 25 V | 58mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

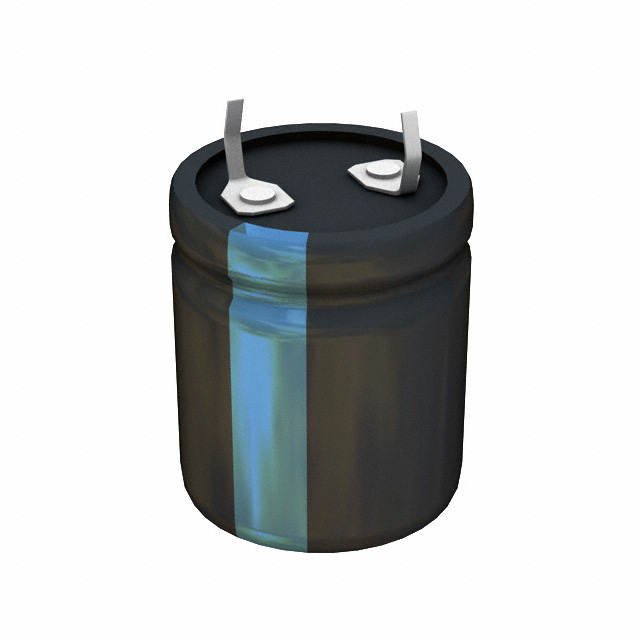

381LX122M063H012CAP ALUM 1200UF 20% 63V SNAP TH |
1,233 |
|
Datasheet |
381LX | Bulk | Active | 1200 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
