Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL213828471E3CAP ALUM 470UF 20% 63V AXIAL TH |
964 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 470 µF | ±20% | 63 V | 260mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 860 mA @ 100 Hz | - | 160 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
450HXW120MEFR14.5X45CAP ALUM 120UF 20% 450V RADIAL |
510 |
|
Datasheet |
HXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.35 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
500HXW82MEFR18X35CAP ALUM 82UF 20% 500V RADIAL TH |
212 |
|
Datasheet |
HXW | Bulk | Active | 82 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.17 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

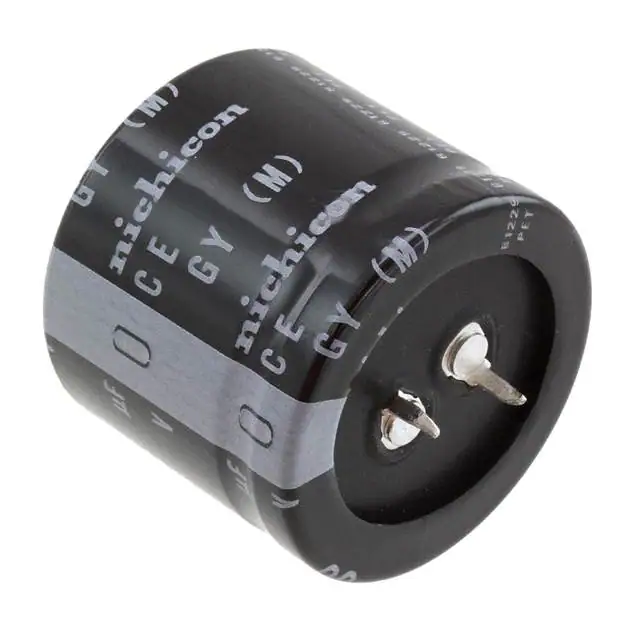

LGY1C273MELC30CAP ALUM 27000UF 20% 16V SNAP TH |
171 |
|
Datasheet |
LGY | Bulk | Active | 27000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

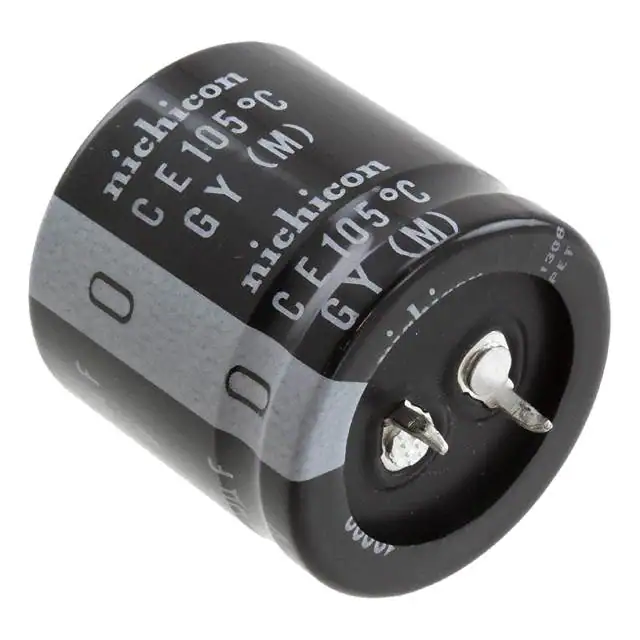

LGY1V822MELB30CAP ALUM 8200UF 20% 35V SNAP TH |
135 |
|
Datasheet |
LGY | Bulk | Active | 8200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLPX122M200E7P3CAP ALUM 1200UF 20% 200V SNAP TH |
2,889 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.61 A @ 120 Hz | 5.31 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
MAL202126222E3CAP ALUM 2200UF 20% 25V AXIAL TH |
715 |
|
Datasheet |
021 ASM | Tape & Reel (TR) | Active | 2200 µF | ±20% | 25 V | 132mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | - | 70 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
LGW2G181MELA30CAP ALUM 180UF 20% 400V SNAP TH |
179 |
|
Datasheet |
LGW | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.0449 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

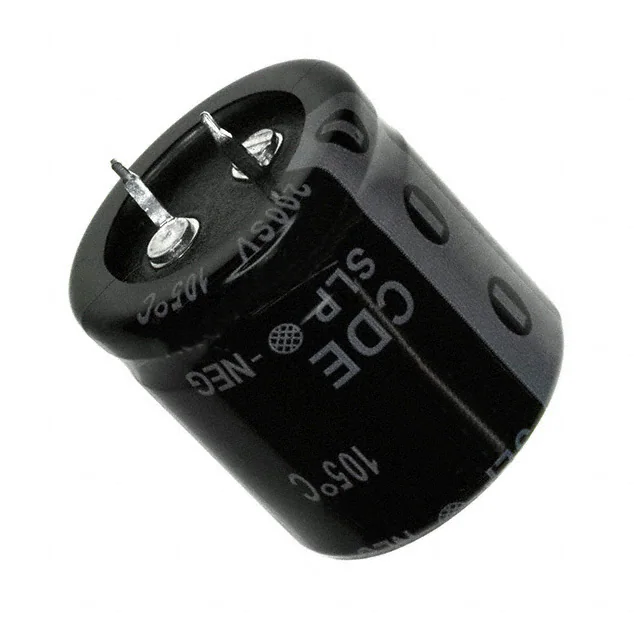

SLP471M250E3P3CAP ALUM 470UF 20% 250V SNAP TH |
4,530 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 470 µF | ±20% | 250 V | 423mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LGG2D561MELA25CAP ALUM 560UF 20% 200V SNAP TH |
393 |
|
Datasheet |
LGG | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.22 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

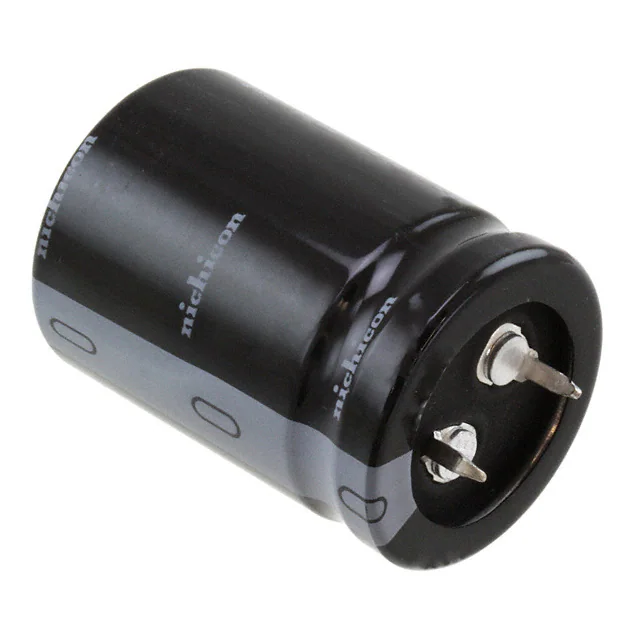

LQS2G221MELA35CAP ALUM 220UF 20% 400V SNAP TH |
285 |
|
Datasheet |
LQS | Bulk | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UBY1J182MHLCAP ALUM 1800UF 20% 63V RADIAL |
245 |
|
Datasheet |
UBY | Bulk | Active | 1800 µF | ±20% | 63 V | 28mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.448 A @ 120 Hz | 4.08 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
ESMR451VSN181MP35SCAP ALUM 180UF 20% 450V SNAP TH |
196 |
|
Datasheet |
SMR | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.1307 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|

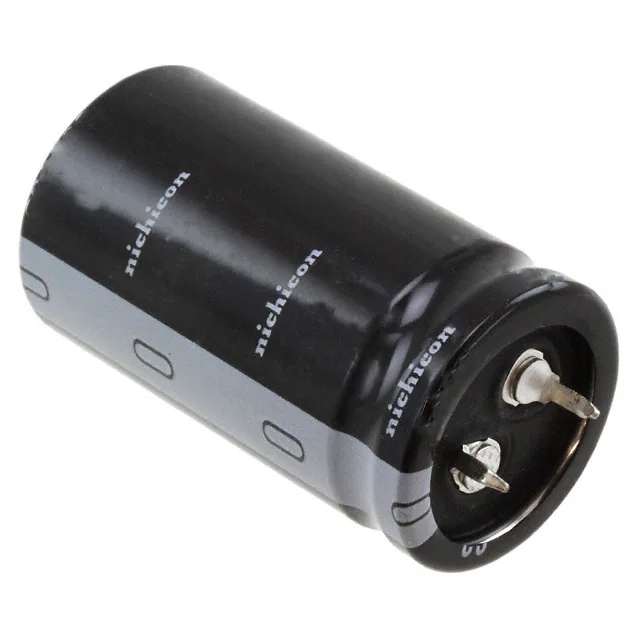

LLS1V123MELACAP ALUM 12000UF 20% 35V SNAP TH |
694 |
|
Datasheet |
LLS | Bulk | Active | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.15 A @ 120 Hz | 4.7725 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ESMR451VSN331MA25SCAP ALUM 330UF 20% 450V SNAP TH |
1,613 |
|
Datasheet |
SMR | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.003 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
TE1508.1-E3CAP ALUM 15UF 150V AXIAL TH |
403 |
|
Datasheet |
TE | Bulk | Active | 15 µF | -10%, +50% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole | |
|
|
TE1164.5-E3CAP ALUM 250UF 16V AXIAL TH |
254 |
|
Datasheet |
TE | Bulk | Active | 250 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.260" L (9.00mm x 32.00mm) | - | - | Through Hole | |
|
EMVE350GRA222MMN0SCAP ALUM 2200UF 20% 35V SMD |
291 |
|
Datasheet |
Alchip™- MVE | Tape & Reel (TR) | Active | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | - | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
109LBB035M2ECCAP ALUM 10000UF 20% 35V SNAP TH |
6,150 |
|
Datasheet |
LBB | Bulk | Active | 10000 µF | ±20% | 35 V | 41.45mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.02 A @ 120 Hz | 3.775 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

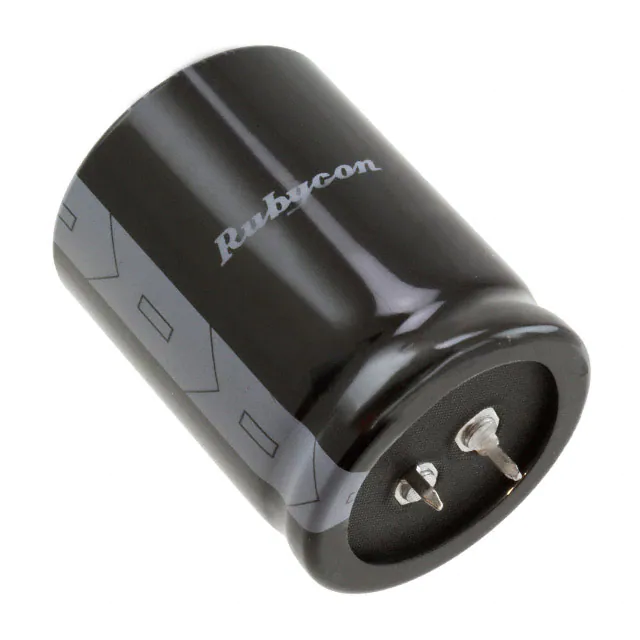

450HXG180MEFCSN22X45CAP ALUM 180UF 20% 450V SNAP TH |
4,115 |
|
Datasheet |
HXG | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.52 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole |
