Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100ZLJ680M18X35.5CAP ALUM 680UF 20% 100V RADIAL |
198 |
|
Datasheet |
ZLJ | Bulk | Active | 680 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.931 A @ 120 Hz | 3.51 A @ 100 kHz | 27 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LGJ2D151MELA15CAP ALUM 150UF 20% 200V SNAP TH |
168 |
|
Datasheet |
LGJ | Bulk | Active | 150 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 975 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
MAL216050471E3CAP ALUM 470UF 20% 35V RADIAL TH |
677 |
|
Datasheet |
160 RLA | Bulk | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | - | 35 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

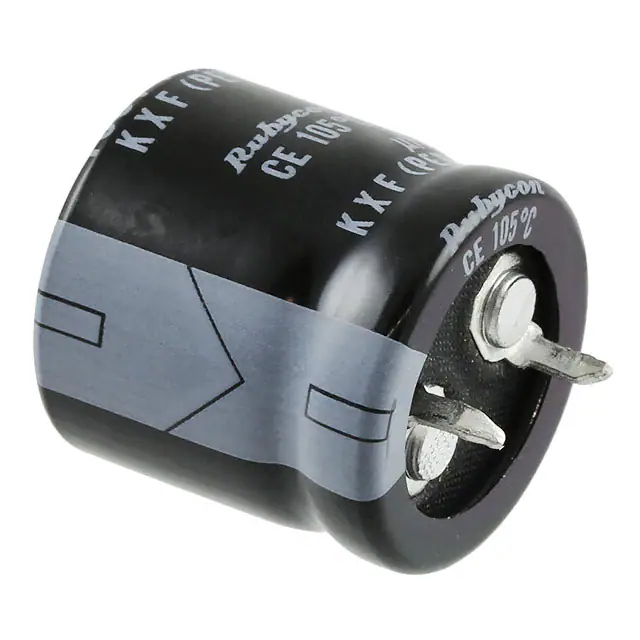

400KXF100MEFCSN25X20CAP ALUM 100UF 20% 400V SNAP TH |
261 |
|
Datasheet |
KXF | Bulk | Active | 100 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LGW2E391MELA30CAP ALUM 390UF 20% 250V SNAP TH |
112 |
|
Datasheet |
LGW | Bulk | Active | 390 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.925 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43644A9107M000CAP ALUM 100UF 20% 400V SNAP TH |
667 |
|
Datasheet |
B43644 | Bulk | Active | 100 µF | ±20% | 400 V | 870mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 100 Hz | - | 1.25 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215068102E3CAP ALUM 1000UF 20% 63V RADIAL |
608 |
|
Datasheet |
150 RMI | Bulk | Active | 1000 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.444 A @ 100 Hz | - | 42 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|

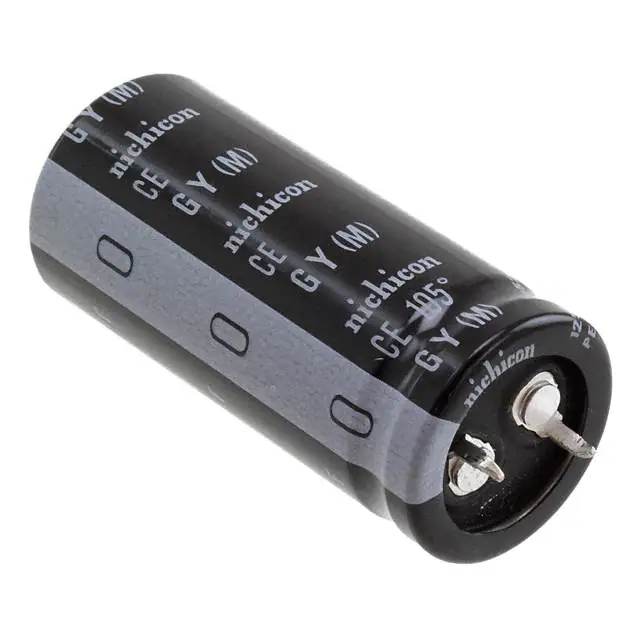

LGY1H562MELZ50CAP ALUM 5600UF 20% 50V SNAP TH |
302 |
|
Datasheet |
LGY | Bulk | Active | 5600 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 2.645 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKX2D391MESZ30CAP ALUM 390UF 20% 200V SNAP TH |
152 |
|
Datasheet |
LKX | Bulk | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.31 A @ 120 Hz | 1.965 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

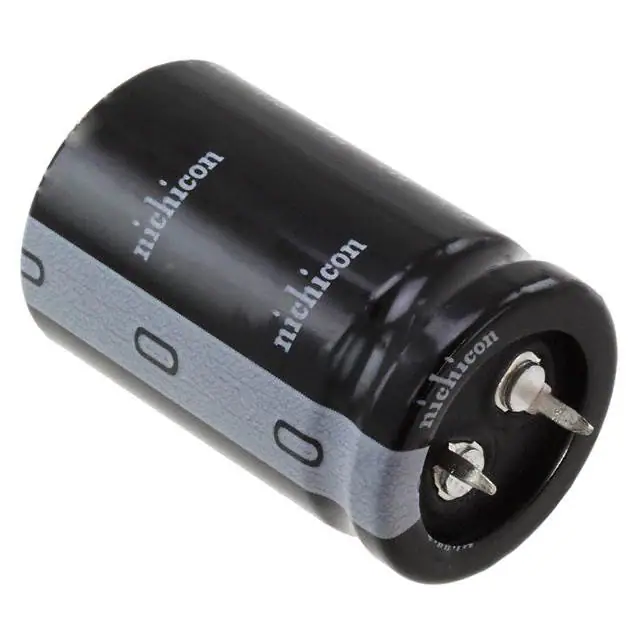

LLS1K332MELACAP ALUM 3300UF 20% 80V SNAP TH |
275 |
|
Datasheet |
LLS | Bulk | Active | 3300 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.29 A @ 120 Hz | 3.7835 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGU2P471MELBCAP ALUM 470UF 20% 220V SNAP TH |
214 |
|
Datasheet |
LGU | Bulk | Active | 470 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.175 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
UBY1H242MHLCAP ALUM 2400UF 20% 50V RADIAL |
151 |
|
Datasheet |
UBY | Bulk | Active | 2400 µF | ±20% | 50 V | 28mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.265 A @ 120 Hz | 3.02 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
MAL226099807E3CAP ALUM 470UF 20% 63V SMD |
581 |
|
Datasheet |
260 CLA-V | Tape & Reel (TR) | Active | 470 µF | ±20% | 63 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 360 mA @ 100 Hz | 600 mA @ 100 kHz | 75 mOhms | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.654" L x 0.654" W (16.60mm x 16.60mm) | Surface Mount | |
|

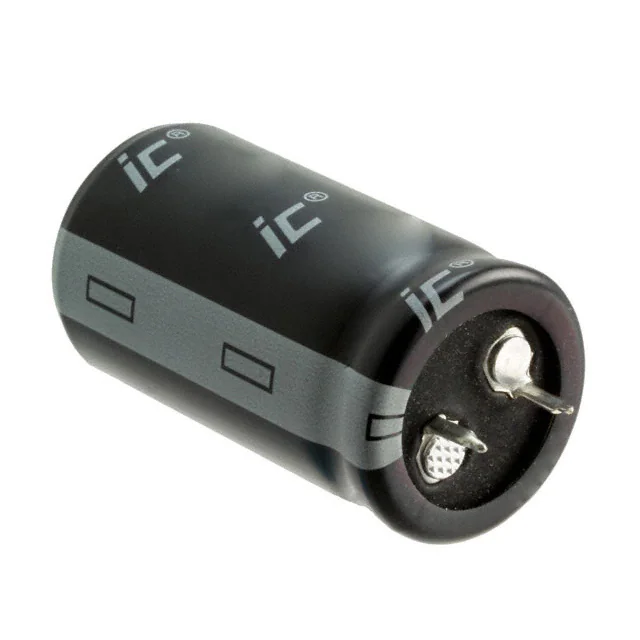

228LBA100M2CGCAP ALUM 2200UF 20% 100V SNAP TH |
838 |
|
Datasheet |
LBA | Bulk | Active | 2200 µF | ±20% | 100 V | 150.70mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.41 A @ 120 Hz | 4.2625 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LLS2W151MELACAP ALUM 150UF 20% 450V SNAP TH |
408 |
|
Datasheet |
LLS | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.7875 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EKMQ251VSN471MP40SCAP ALUM 470UF 20% 250V SNAP TH |
934 |
|
Datasheet |
KMQ | Bulk | Active | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

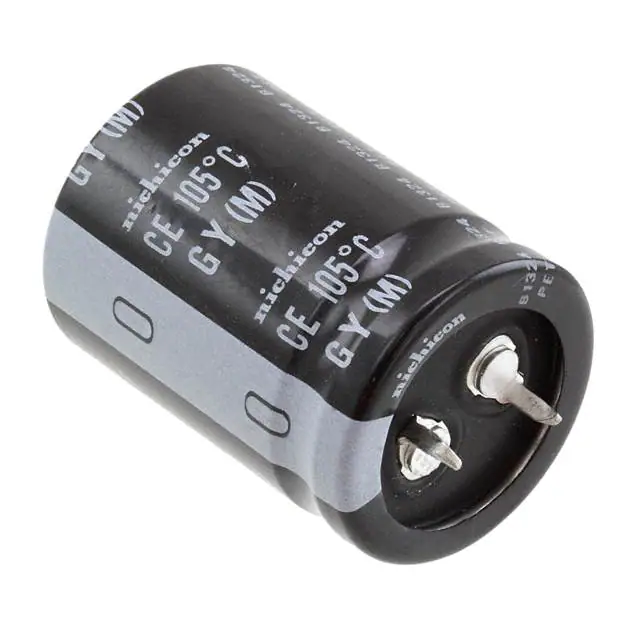

LGY1K222MELA35CAP ALUM 2200UF 20% 80V SNAP TH |
404 |
|
Datasheet |
LGY | Bulk | Active | 2200 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGU1H562MELACAP ALUM 5600UF 20% 50V SNAP TH |
246 |
|
Datasheet |
LGU | Bulk | Active | 5600 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 3.2315 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLS2E471MELACAP ALUM 470UF 20% 250V SNAP TH |
238 |
|
Datasheet |
LLS | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.225 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

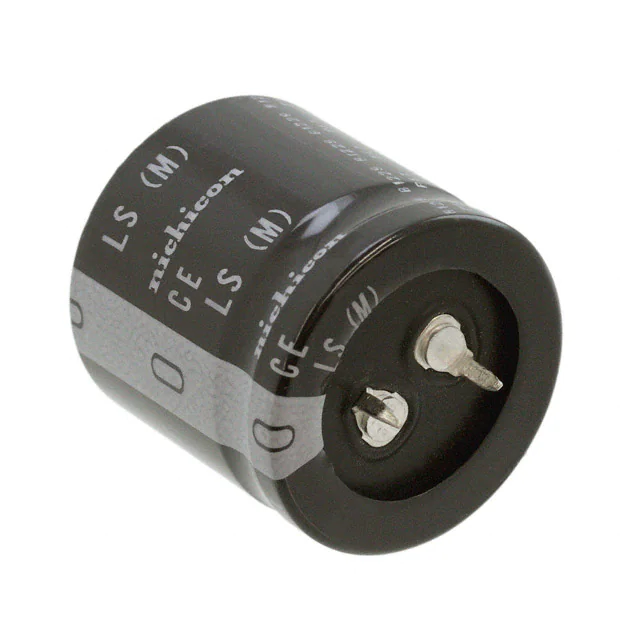

LLS1K272MELBCAP ALUM 2700UF 20% 80V SNAP TH |
200 |
|
Datasheet |
LLS | Bulk | Active | 2700 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.91 A @ 120 Hz | 3.3465 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
