Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGG2E391MELA25CAP ALUM 390UF 20% 250V SNAP TH |
215 |
|
Datasheet |
LGG | Bulk | Active | 390 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.8 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGU2C102MELACAP ALUM 1000UF 20% 160V SNAP TH |
189 |
|
Datasheet |
LGU | Bulk | Active | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGJ2E181MELACAP ALUM 180UF 20% 250V SNAP TH |
171 |
|
Datasheet |
LGJ | Bulk | Active | 180 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.125 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

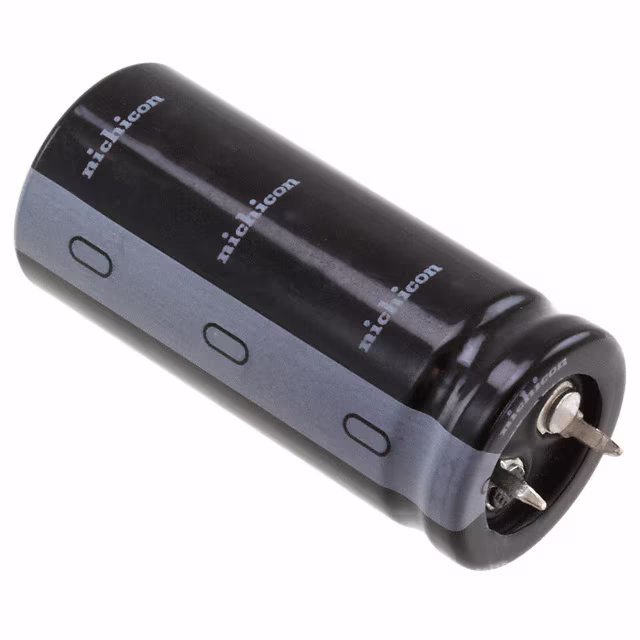

LLS2Z102MELZCAP ALUM 1000UF 20% 180V SNAP TH |
158 |
|
Datasheet |
LLS | Bulk | Active | 1000 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.65 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LGU2F331MELACAP ALUM 330UF 20% 315V SNAP TH |
227 |
|
Datasheet |
LGU | Bulk | Active | 330 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.5295 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400TXW180MEFR18X45CAP ALUM 180UF 20% 400V RADIAL |
191 |
|
Datasheet |
TXW | Bulk | Not For New Designs | 180 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.56 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
LGG2D681MELA30CAP ALUM 680UF 20% 200V SNAP TH |
142 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.4 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2C122MELC25CAP ALUM 1200UF 20% 160V SNAP TH |
4,089 |
|
Datasheet |
LGN | Bulk | Active | 1200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

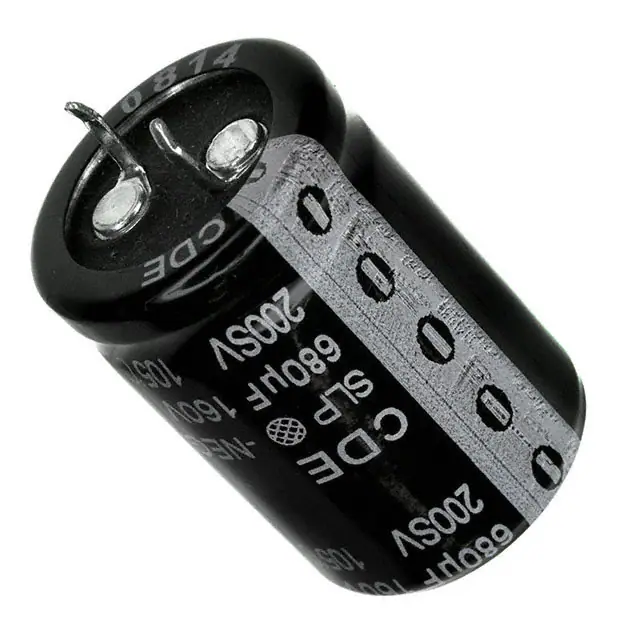

SLP561M200C5P3CAP ALUM 560UF 20% 200V SNAP TH |
3,830 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 560 µF | ±20% | 200 V | 355.3mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
381LQ101M400H012CAP ALUM 100UF 20% 400V SNAP TH |
3,776 |
|
Datasheet |
381LQ | Bulk | Active | 100 µF | ±20% | 400 V | 1.824Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
PEG124KC322AQE4CAP ALUM 220UF 40V AXIAL TH |
1,330 |
|
Datasheet |
PEG124 | Bulk | Active | 220 µF | -10%, +30% | 40 V | 440mOhm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 452 mA @ 100 Hz | 1.2 A @ 5 kHz | - | - | 0.512" Dia x 0.787" L (13.00mm x 20.00mm) | - | - | Through Hole | |
|
LGN2H680MELA25CAP ALUM 68UF 20% 500V SNAP TH |
109 |
|
Datasheet |
LGN | Bulk | Active | 68 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 743.6 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
688LBB050M2ECCAP ALUM 6800UF 20% 50V SNAP TH |
412 |
|
Datasheet |
LBB | Bulk | Active | 6800 µF | ±20% | 50 V | 48.76mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.23 A @ 120 Hz | 4.0375 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
200USG330MEFCSN20X25CAP ALUM 330UF 20% 200V SNAP TH |
218 |
|
Datasheet |
USG | Bulk | Active | 330 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.16 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

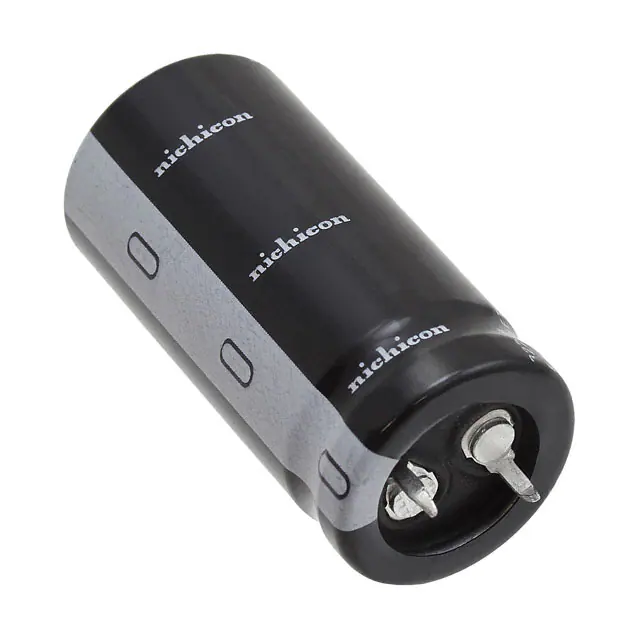

LGU2G181MELZCAP ALUM 180UF 20% 400V SNAP TH |
211 |
|
Datasheet |
LGU | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.4014 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
500MXK100MEFCSN22X30CAP ALUM 100UF 20% 500V SNAP TH |
210 |
|
Datasheet |
MXK | Bulk | Active | 100 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.274 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2G181MELA30CAP ALUM 180UF 20% 400V SNAP TH |
160 |
|
Datasheet |
LGN | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL212016471E3CAP ALUM 470UF 20% 25V AXIAL TH |
679 |
|
Datasheet |
120 ATC | Bulk | Active | 470 µF | ±20% | 25 V | 112mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.1 A @ 10 kHz | 84 mOhms | - | 0.394" Dia x 1.181" L (10.00mm x 30.00mm) | - | - | Through Hole | |
|
|
500LXW68MEFR16X40CAP ALUM 68UF 20% 500V RADIAL TH |
259 |
|
Datasheet |
LXW | Bulk | Active | 68 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450VXH120MEFCSN22X30CAP ALUM 120UF 20% 450V SNAP TH |
201 |
|
Datasheet |
VXH | Bulk | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.372 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
