Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41252A5229M000CAP ALUM 22000UF 20% 25V SNAP TH |
322 |
|
Datasheet |
B41252 | Bulk | Active | 22000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.36 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL214631102E3CAP ALUM 1000UF 20% 50V RADIAL |
1,010 |
|
Datasheet |
146 RTI | Cut Tape (CT) | Active | 1000 µF | ±20% | 50 V | - | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.8 A @ 100 kHz | 39 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UKA1E682MHDCAP ALUM 6800UF 20% 25V RADIAL |
215 |
|
Datasheet |
UKA | Bulk | Not For New Designs | 6800 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 2.04 A @ 120 Hz | 2.346 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ESMQ161VSN102MQ30SCAP ALUM 1000UF 20% 160V SNAP TH |
232 |
|
Datasheet |
SMQ | Bulk | Active | 1000 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LGN2W560MELY25CAP ALUM 56UF 20% 450V SNAP TH |
227 |
|
Datasheet |
LGN | Bulk | Active | 56 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
500HXW82MEFR16X45CAP ALUM 82UF 20% 500V RADIAL TH |
161 |
|
Datasheet |
HXW | Bulk | Active | 82 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.215 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

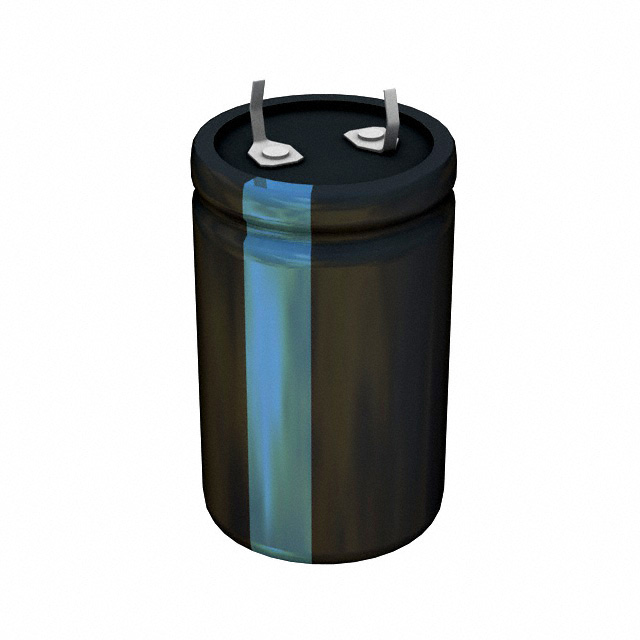

381LX182M100J042CAP ALUM 1800UF 20% 100V SNAP TH |
2,842 |
|
Datasheet |
381LX | Bulk | Active | 1800 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UKA1C103MHDCAP ALUM 10000UF 20% 16V RADIAL |
250 |
|
Datasheet |
UKA | Bulk | Not For New Designs | 10000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 2.06 A @ 120 Hz | 2.369 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGW2W101MELZ30CAP ALUM 100UF 20% 450V SNAP TH |
193 |
|
Datasheet |
LGW | Bulk | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.4872 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LGN2C821MELZ35CAP ALUM 820UF 20% 160V SNAP TH |
144 |
|
Datasheet |
LGN | Bulk | Active | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215051152E3CAP ALUM 1500UF 20% 50V RADIAL |
601 |
|
Datasheet |
150 RMI | Bulk | Active | 1500 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.672 A @ 100 Hz | - | 27 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|

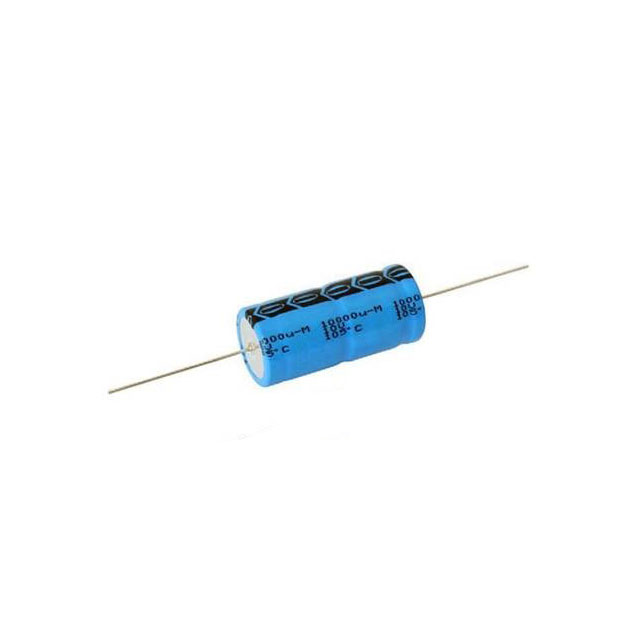

MAL213816152E3CAP ALUM 1500UF 20% 25V AXIAL TH |
454 |
|
Datasheet |
138 AML | Bulk | Active | 1500 µF | ±20% | 25 V | 170mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.02 A @ 100 Hz | 1.326 A @ 10 kHz | 130 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
450LXW82MEFR12.5X50CAP ALUM 82UF 20% 450V RADIAL TH |
397 |
|
Datasheet |
LXW | Bulk | Active | 82 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.54 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 2.047" (52.00mm) | - | Through Hole | |
|
SLP471M250C7P3CAP ALUM 470UF 20% 250V SNAP TH |
5,143 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 470 µF | ±20% | 250 V | 423mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGN2W101MELA25CAP ALUM 100UF 20% 450V SNAP TH |
777 |
|
Datasheet |
LGN | Bulk | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 986.7 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ESMQ161VSN152MQ40SCAP ALUM 1500UF 20% 160V SNAP TH |
790 |
|
Datasheet |
SMQ | Bulk | Active | 1500 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.73 A @ 120 Hz | 5.595 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL215266479E3CAP ALUM 47UF 20% 400V RADIAL TH |
652 |
|
Datasheet |
152 RMH | Bulk | Active | 47 µF | ±20% | 400 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 240 mA @ 100 Hz | - | 2 Ohms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EGPA101ELL621MM35SCAP ALUM 620UF 20% 100V RADIAL |
376 |
|
Datasheet |
GPA | Bulk | Active | 620 µF | ±20% | 100 V | 44mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.614 A @ 120 Hz | 2.69 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
UPZ2D391MHDCAP ALUM 390UF 20% 200V RADIAL |
280 |
|
Datasheet |
UPZ | Bulk | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UCX1V222MNS1MSCAP ALUM 2200UF 20% 35V SMD |
311 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 2200 µF | ±20% | 35 V | 35mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 1.1 A @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount |
