Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
383LX104M016A082CAP ALUM 100000UF 20% 16V SNAP |
159 |
|
Datasheet |
383LX | Bulk | Active | 100000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
DCMC263U050AC2BCAP ALUM 26000UF 50V SCREW CHAS |
109 |
|
Datasheet |
DCMC | Bulk | Active | 26000 µF | -10%, +75% | 50 V | 18.7mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.4 A @ 120 Hz | 11.648 A @ 10 kHz | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
MAL219836471E3CAP ALUM 470UF 20% 400V SNAP TH |
625 |
|
Datasheet |
198 PHR-SI | Bulk | Active | 470 µF | ±20% | 400 V | 203mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.72 A @ 100 Hz | - | 153 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
53D102G050GE6CAP ALUM 1000UF 50V AXIAL TH |
159 |
|
Datasheet |
53D | Bulk | Active | 1000 µF | -10%, +75% | 50 V | 231mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.093 A @ 1 kHz | - | - | 0.760" Dia x 1.142" L (19.30mm x 29.00mm) | - | - | Through Hole | |
|
ALS70A681DE500CAP ALUM 680UF 20% 500V SCREW CH |
121 |
|
Datasheet |
ALS70 | Bulk | Active | 680 µF | ±20% | 500 V | 368mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | 7.5 A @ 10 kHz | 277 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|

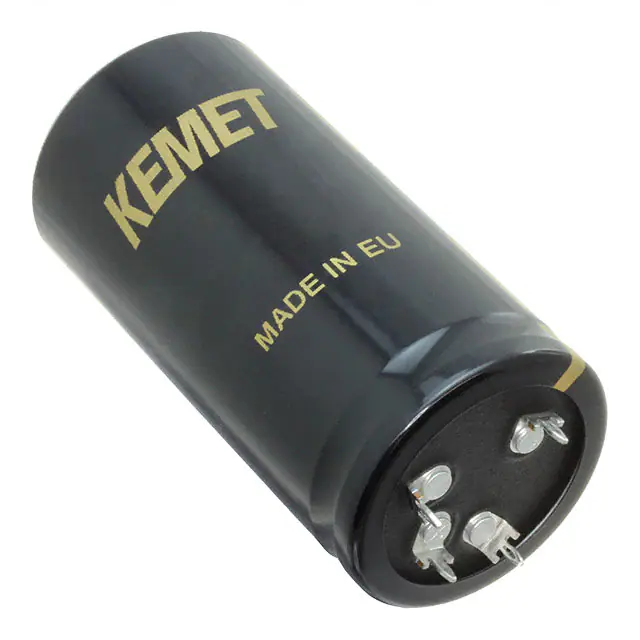

ALF20C103EC063CAP ALUM 10000UF 20% 63V PRESS |
681 |
|
Datasheet |
ALF20 | Bulk | Active | 10000 µF | ±20% | 63 V | 80mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.58 A @ 100 Hz | 4.67 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
ALS40A473DF025CAP ALUM 47000UF 20% 25V SCREW |
144 |
|
Datasheet |
ALS40 | Box | Active | 47000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14 A @ 100 Hz | 14.7 A @ 10 kHz | 8 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
LNT1C333MSECAP ALUM 33000UF 20% 16V SCREW |
111 |
|
Datasheet |
LNT | Bulk | Active | 33000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.2 A @ 120 Hz | 5.98 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
450HFG680MBN35X70CAP ALUM 680UF 20% 450V RADIAL |
114 |
|
Datasheet |
HFG | Bulk | Active | 680 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.76 A @ 120 Hz | 5.264 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
LGL2W681MELC45CAP ALUM 680UF 20% 450V SNAP TH |
931 |
|
Datasheet |
LGL | Bulk | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.5311 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC10C102EJ450CAP ALUM 1000UF 20% 450V SNAP TH |
527 |
|
Datasheet |
ALC10 | Bulk | Active | 1000 µF | ±20% | 450 V | 142mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.42 A @ 10 kHz | 93 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
MAL205756471E3CAP ALUM 470UF 20% 400V SNAP TH |
634 |
|
Datasheet |
057 PSM-SI | Bulk | Active | 470 µF | ±20% | 400 V | 340mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.4 A @ 100 Hz | - | 220 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGM2W821MELC45CAP ALUM 820UF 20% 450V SNAP TH |
584 |
|
Datasheet |
LGM | Bulk | Active | 820 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
EKMT451VSN471MA45SCAP ALUM 470UF 20% 450V SNAP TH |
583 |
|
Datasheet |
KMT | Bulk | Active | 470 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.67 A @ 120 Hz | 3.8181 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
ALS70A362KE250CAP ALUM 3600UF 20% 250V SCREW |
115 |
|
Datasheet |
ALS70 | Bulk | Active | 3600 µF | ±20% | 250 V | 74mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 100 Hz | 13.6 A @ 10 kHz | 50 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
53D472G035HL6CAP ALUM 4700UF 35V AXIAL TH |
168 |
|
Datasheet |
53D | Bulk | Active | 4700 µF | -10%, +75% | 35 V | 54mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.78 A @ 120 Hz | 3.197 A @ 1 kHz | - | - | 0.886" Dia x 2.142" L (22.50mm x 54.40mm) | - | - | Through Hole | |
|
ALC70C752FP200CAP ALUM 7500UF 20% 200V SNAP TH |
926 |
|
Datasheet |
ALC70 | Bulk | Active | 7500 µF | ±20% | 200 V | 33.65mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 100 Hz | 15.97 A @ 10 kHz | 22 mOhms | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
MAL210619152E3CAP ALUM 1500UF 100V SCREW CHAS |
229 |
|
Datasheet |
106 PED-ST | Bulk | Active | 1500 µF | -10%, +30% | 100 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.8 A @ 100 Hz | - | 27 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
LNT2A332MSECAP ALUM 3300UF 20% 100V SCREW |
101 |
|
Datasheet |
LNT | Bulk | Active | 3300 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
383LX102M450N082CAP ALUM 1000UF 20% 450V SNAP TH |
1,599 |
|
Datasheet |
383LX | Bulk | Active | 1000 µF | ±20% | 450 V | 166mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 1.9 A @ 20 kHz | - | - | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole |
