Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL205737101E3CAP ALUM 100UF 20% 450V SNAP TH |
1,989 |
|
Datasheet |
057 PSM-SI | Cut Tape (CT) | Active | 100 µF | ±20% | 450 V | 2.6Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 460 mA @ 100 Hz | - | 2.1 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205855103E3CAP ALUM 10000UF 20% 16V SNAP TH |
1,578 |
|
Datasheet |
058 PLL-SI | Cut Tape (CT) | Active | 10000 µF | ±20% | 16 V | 44mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.44 A @ 100 Hz | - | 34 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43541B8187M000CAP ALUM 180UF 20% 600V SNAP TH |
237 |
|
Datasheet |
B43541 | Tray | Active | 180 µF | ±20% | 600 V | 650mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 100 Hz | - | 1.01 Ohms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450VXH470MEFCSN30X50CAP ALUM 470UF 20% 450V SNAP TH |
107 |
|
Datasheet |
VXH | Bulk | Active | 470 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.14 A @ 120 Hz | 2.996 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL225957221E3CAP ALUM 220UF 20% 450V SNAP TH |
674 |
|
Datasheet |
259 PHM-SI | Bulk | Active | 220 µF | ±20% | 450 V | 530mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.4 A @ 10 kHz | 360 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEH228MMP4140QE4CAP ALUM 1400UF 63V SOLDER LUG |
576 |
|
Datasheet |
PEH228 | Tray | Active | 1400 µF | -10%, +30% | 63 V | 53mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.59 A @ 100 Hz | 7.4 A @ 5 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.445" (36.70mm) | - | Through Hole | |
|
LGGW6681MELC45CAP ALUM 680UF 20% 420V SNAP TH |
200 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.9315 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43630A2228M000CAP ALUM 2200UF 20% 200V SNAP TH |
309 |
|
Datasheet |
B43630 | Bulk | Active | 2200 µF | ±20% | 200 V | 55mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.88 A @ 100 Hz | - | 85 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALF70C681DF400CAP ALUM 680UF 20% 400V PRESS |
997 |
|
Datasheet |
ALF70 | Bulk | Active | 680 µF | ±20% | 400 V | 204.7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.99 A @ 100 Hz | 6.92 A @ 10 kHz | 109 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
|
LGG2G821MELC45CAP ALUM 820UF 20% 400V SNAP TH |
175 |
|
Datasheet |
LGG | Bulk | Active | 820 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.86 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43642A9567M000CAP ALUM 560UF 20% 400V SNAP TH |
309 |
|
Datasheet |
B43642 | Bulk | Active | 560 µF | ±20% | 400 V | 180mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.31 A @ 100 Hz | - | 270 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43630B5337M000CAP ALUM 330UF 20% 450V SNAP TH |
283 |
|
Datasheet |
B43630 | Bulk | Active | 330 µF | ±20% | 450 V | 360mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 100 Hz | - | 560 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
861141486023CAP ALUM 390UF 20% 450V SNAP TH |
150 |
|
Datasheet |
WCAP-AI3H | Tray | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.07 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.732" (44.00mm) | - | Through Hole | |
|

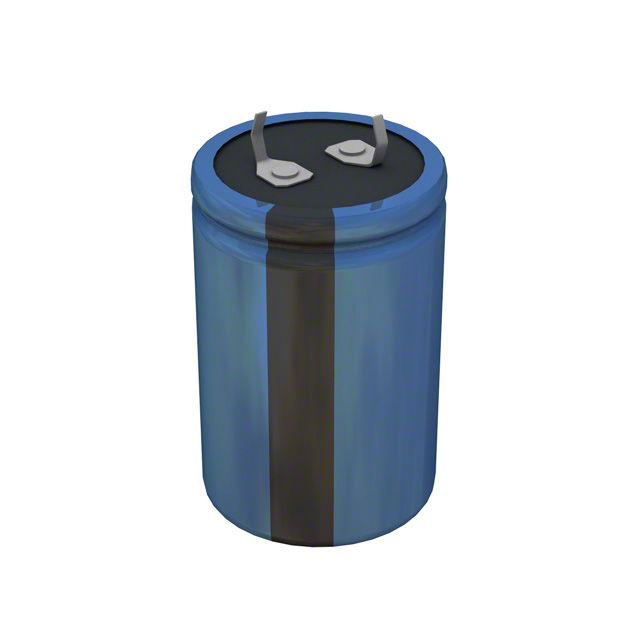

380LX221M500K452CAP ALUM 220UF 20% 500V SNAP TH |
136 |
|
Datasheet |
380LX | Bulk | Active | 220 µF | ±20% | 500 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ALC10A102DF250CAP ALUM 1000UF 20% 250V SNAP TH |
1,075 |
|
Datasheet |
ALC10 | Bulk | Active | 1000 µF | ±20% | 250 V | 163mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.26 A @ 100 Hz | 4.75 A @ 10 kHz | 106 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

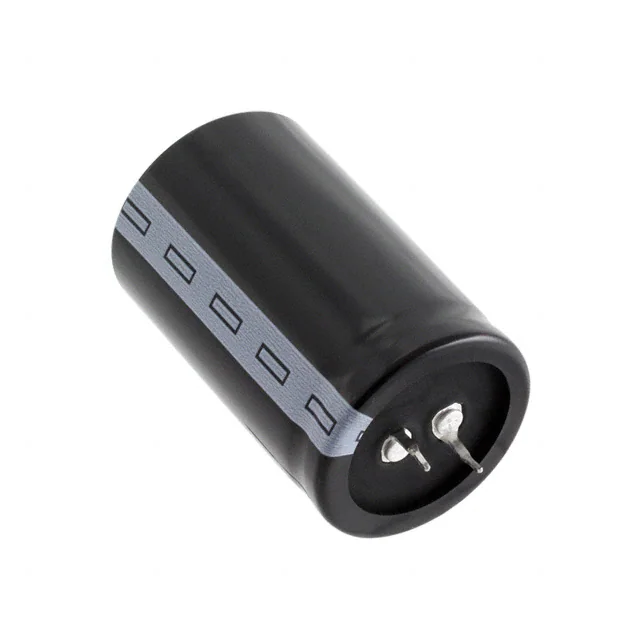

B43508E2228M000CAP ALUM 2200UF 20% 250V SNAP TH |
238 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 2200 µF | ±20% | 250 V | 55mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.12 A @ 100 Hz | - | 75 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
B43640B5567M000CAP ALUM 560UF 20% 450V SNAP TH |
467 |
|
Datasheet |
B43640 | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
B43505A9477M000CAP ALUM 470UF 20% 400V SNAP TH |
144 |
|
Datasheet |
B43505 | Bulk | Not For New Designs | 470 µF | ±20% | 400 V | 190mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 100 Hz | - | 240 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
ALC40G471EG500CAP ALUM 470UF 20% 500V SNAP TH |
1 |
|
Datasheet |
ALC40 | Bulk | Active | 470 µF | ±20% | 500 V | 480mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 6.42 A @ 10 kHz | 390 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
MAL205847472E3CAP ALUM 4700UF 20% 40V SNAP TH |
433 |
|
Datasheet |
058 PLL-SI | Cut Tape (CT) | Active | 4700 µF | ±20% | 40 V | 51mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.26 A @ 100 Hz | - | 32 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
