Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC40A471DE400CAP ALUM 470UF 20% 400V SNAP TH |
484 |
|
Datasheet |
ALC40 | Bulk | Active | 470 µF | ±20% | 400 V | 300mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 4.73 A @ 10 kHz | 192 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAQ2G471MELC45CAP ALUM 470UF 20% 400V SNAP TH |
126 |
|
Datasheet |
LAQ | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.1505 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELXS501VSN271MA40SCAP ALUM 270UF 20% 500V SNAP TH |
200 |
|
Datasheet |
LXS | Bulk | Active | 270 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.0306 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
EKMR451VSN471MQ60SCAP ALUM 470UF 20% 450V SNAP TH |
200 |
|
Datasheet |
KMR | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|

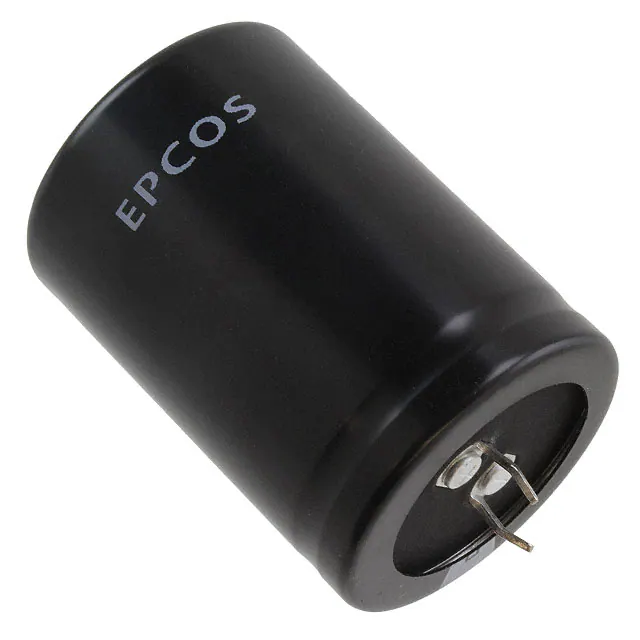

B43505A5397M000CAP ALUM 390UF 20% 450V SNAP TH |
101 |
|
Datasheet |
B43505 | Bulk | Not For New Designs | 390 µF | ±20% | 450 V | 350mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 100 Hz | - | 410 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43504F2228M000CAP ALUM 2200UF 20% 200V SNAP TH |
1,013 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 2200 µF | ±20% | 200 V | 65mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.43 A @ 100 Hz | - | 80 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43508B5477M000CAP ALUM 470UF 20% 450V SNAP TH |
1,413 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 470 µF | ±20% | 450 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 100 Hz | - | 370 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205856223E3CAP ALUM 22000UF 20% 25V SNAP TH |
1,047 |
|
Datasheet |
058 PLL-SI | Bulk | Active | 22000 µF | ±20% | 25 V | 27mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.07 A @ 100 Hz | - | 21 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
383LX122M350N062CAP ALUM 1200UF 20% 350V SNAP TH |
1,075 |
|
Datasheet |
383LX | Bulk | Active | 1200 µF | ±20% | 350 V | 207mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.5 A @ 20 kHz | - | - | 1.575" Dia (40.00mm) | 2.559" (65.00mm) | - | Through Hole | |
|
ALS80A431DA400CAP ALUM 430UF 20% 400V SCREW CH |
108 |
|
Datasheet |
ALS80 | Bulk | Active | 430 µF | ±20% | 400 V | 308mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | 6.4 A @ 10 kHz | 173 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
380LX391M500A052CAP ALUM 390UF 20% 500V SNAP TH |
151 |
|
Datasheet |
380LX | Bulk | Active | 390 µF | ±20% | 500 V | 425mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 3.11 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LX680M500J012CAP ALUM 68UF 20% 500V SNAP TH |
112 |
|
Datasheet |
380LX | Bulk | Active | 68 µF | ±20% | 500 V | 2.438Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.09 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
500MXH470MEFCSN35X55CAP ALUM 470UF 20% 500V SNAP TH |
183 |
|
Datasheet |
MXH | Bulk | Active | 470 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.19 A @ 120 Hz | 3.066 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
381LX341M500A052CAP ALUM 340UF 20% 500V SNAP TH |
159 |
|
Datasheet |
381LX | Bulk | Active | 340 µF | ±20% | 500 V | 475mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.29 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL225727681E3CAP ALUM 680UF 20% 450V SNAP TH |
1,448 |
|
Datasheet |
257 PRM-SI | Box | Active | 680 µF | ±20% | 450 V | 290mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.13 A @ 100 Hz | 4.382 A @ 10 kHz | 240 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
400VXH820MEFCSN35X50CAP ALUM 820UF 20% 400V SNAP TH |
116 |
|
Datasheet |
VXH | Bulk | Active | 820 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.47 A @ 120 Hz | 3.458 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALF70C821EH450CAP ALUM 820UF 20% 450V PRESS |
1,194 |
|
Datasheet |
ALF70 | Bulk | Active | 820 µF | ±20% | 450 V | 177mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 8.14 A @ 10 kHz | 100 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole, Press-Fit | |
|
|
MAL225729471E3CAP ALUM 470UF 20% 500V SNAP TH |
855 |
|
Datasheet |
257 PRM-SI | Box | Active | 470 µF | ±20% | 500 V | 480mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 100 Hz | 3.57 A @ 10 kHz | 420 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC80C751EH450CAP ALUM 750UF 20% 450V SNAP TH |
337 |
|
Datasheet |
ALC80 | Bulk | Active | 750 µF | ±20% | 450 V | 180.8mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.86 A @ 100 Hz | 9.23 A @ 10 kHz | 106 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
MAL225652682E3CAP ALUM 6800UF 20% 80V SNAP TH |
156 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 6800 µF | ±20% | 80 V | 49mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 4.272 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
