Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGL2W331MELB35CAP ALUM 330UF 20% 450V SNAP TH |
109 |
|
Datasheet |
LGL | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6016 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALA7DA161CD600CAP ALUM 160UF 20% 600V SNAP TH |
454 |
|
Datasheet |
ALA7D | Bulk | Active | 160 µF | ±20% | 600 V | 797mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.6 A @ 100 Hz | 3.5 A @ 10 kHz | 550 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGZ2W181MELC35CAP ALUM 180UF 20% 450V SNAP TH |
160 |
|
Datasheet |
LGZ | Bulk | Active | 180 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43545B9477M000CAP ALUM 470UF 20% 400V SNAP TH |
129 |
|
Datasheet |
B43545 | Tray | Active | 470 µF | ±20% | 400 V | 130mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.59 A @ 100 Hz | - | 180 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205857682E3CAP ALUM 6800UF 20% 40V SNAP TH |
1,324 |
|
Datasheet |
058 PLL-SI | Bulk | Active | 6800 µF | ±20% | 40 V | 42mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.94 A @ 100 Hz | - | 29 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMH500VSN682MR40UCAP ALUM 6800UF 20% 50V SNAP TH |
200 |
|
Datasheet |
KMH | Bulk | Active | 6800 µF | ±20% | 50 V | 49mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.564 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

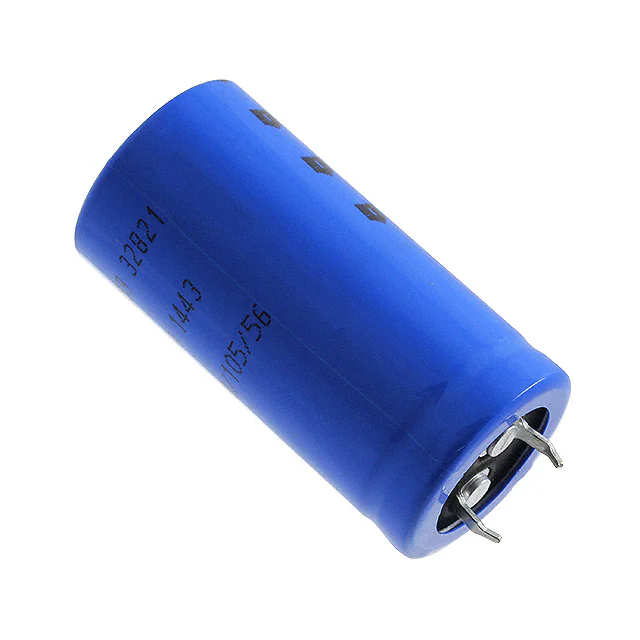

MAL215937101E3CAP ALUM 100UF 20% 450V SNAP TH |
888 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 100 µF | ±20% | 450 V | 1.8Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | - | 1.05 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL215936151E3CAP ALUM 150UF 20% 400V SNAP TH |
381 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 150 µF | ±20% | 400 V | 1.4Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | - | 860 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMH630VSN682MA40UCAP ALUM 6800UF 20% 63V SNAP TH |
186 |
|
Datasheet |
KMH | Bulk | Active | 6800 µF | ±20% | 63 V | 37mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.64 A @ 120 Hz | 4.368 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LQSW6471MELB45CAP ALUM 470UF 20% 420V SNAP TH |
180 |
|
Datasheet |
LQS | Bulk | Active | 470 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.6598 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
PEH227MLP4160QE4CAP ALUM 1600UF 63V SOLDER LUG |
317 |
|
Datasheet |
PEH227 | Tray | Active | 1600 µF | -10%, +30% | 63 V | 55mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.345 A @ 100 Hz | 6.968 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.445" (36.70mm) | - | Through Hole | |
|
861111485030CAP ALUM 470UF 20% 450V SNAP TH |
187 |
|
Datasheet |
WCAP-AIL5 | Tray | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.3184 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.087" (53.00mm) | - | Through Hole | |
|
|
B43545A9687M000CAP ALUM 680UF 20% 400V SNAP TH |
949 |
|
Datasheet |
B43545 | Tray | Active | 680 µF | ±20% | 400 V | 90mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.33 A @ 100 Hz | - | 130 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
158LBA200M2EGCAP ALUM 1500UF 20% 200V SNAP TH |
4 |
|
Datasheet |
LBA | Bulk | Active | 1500 µF | ±20% | 200 V | 165.79mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 6.027 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43508F2108M000CAP ALUM 1000UF 20% 250V SNAP TH |
118 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 1000 µF | ±20% | 250 V | 120mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 100 Hz | - | 160 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC10A271DF550CAP ALUM 270UF 20% 550V SNAP TH |
965 |
|
Datasheet |
ALC10 | Bulk | Active | 270 µF | ±20% | 550 V | 1.29Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 100 Hz | 3.15 A @ 10 kHz | 1.126 Ohms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALA7DA181DC600CAP ALUM 180UF 20% 600V SNAP TH |
358 |
|
Datasheet |
ALA7D | Bulk | Active | 180 µF | ±20% | 600 V | 714mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.8 A @ 100 Hz | 3.7 A @ 10 kHz | 494 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LQSW6471MELC40CAP ALUM 470UF 20% 420V SNAP TH |
191 |
|
Datasheet |
LQS | Bulk | Active | 470 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.6598 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

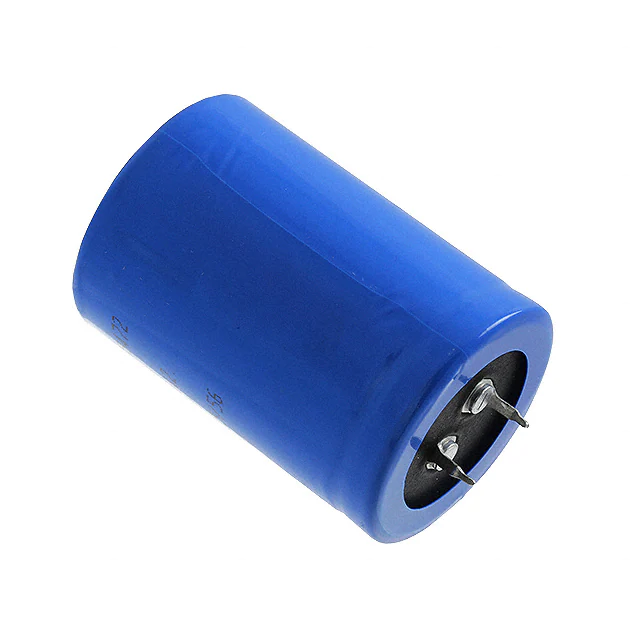

MAL215929221E3CAP ALUM 220UF 20% 500V SNAP TH |
751 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 220 µF | ±20% | 500 V | 610mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.918 A @ 10 kHz | 450 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
B43540A9687M000CAP ALUM 680UF 20% 400V SNAP TH |
295 |
|
Datasheet |
B43540 | Bulk | Not For New Designs | 680 µF | ±20% | 400 V | 95mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.05 A @ 100 Hz | - | 110 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
