Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
381LQ561M450A052CAP ALUM 560UF 20% 450V SNAP TH |
205 |
|
Datasheet |
381LQ | Bulk | Active | 560 µF | ±20% | 450 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALF80C112EH350CAP ALUM 1100UF 20% 350V PRESS |
995 |
|
Datasheet |
ALF80 | Bulk | Active | 1100 µF | ±20% | 350 V | 131.8mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.26 A @ 100 Hz | 9.52 A @ 10 kHz | 71 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole, Press-Fit | |
|
LGZ2W151MELC30CAP ALUM 150UF 20% 450V SNAP TH |
367 |
|
Datasheet |
LGZ | Bulk | Active | 150 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALA7DA331DC500CAP ALUM 330UF 20% 500V SNAP TH |
1,812 |
|
Datasheet |
ALA7D | Bulk | Active | 330 µF | ±20% | 500 V | 757mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.5 A @ 100 Hz | 5.18 A @ 10 kHz | 196.8 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGZ2W271MELC45CAP ALUM 270UF 20% 450V SNAP TH |
340 |
|
Datasheet |
LGZ | Bulk | Active | 270 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.7017 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL205758221E3CAP ALUM 220UF 20% 385V SNAP TH |
643 |
|
Datasheet |
057 PSM-SI | Bulk | Active | 220 µF | ±20% | 385 V | 650mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.57 A @ 100 Hz | - | 400 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70A391DC400CAP ALUM 390UF 20% 400V SNAP TH |
490 |
|
Datasheet |
ALC70 | Bulk | Active | 390 µF | ±20% | 400 V | 353.8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.08 A @ 100 Hz | 4.96 A @ 10 kHz | 187 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

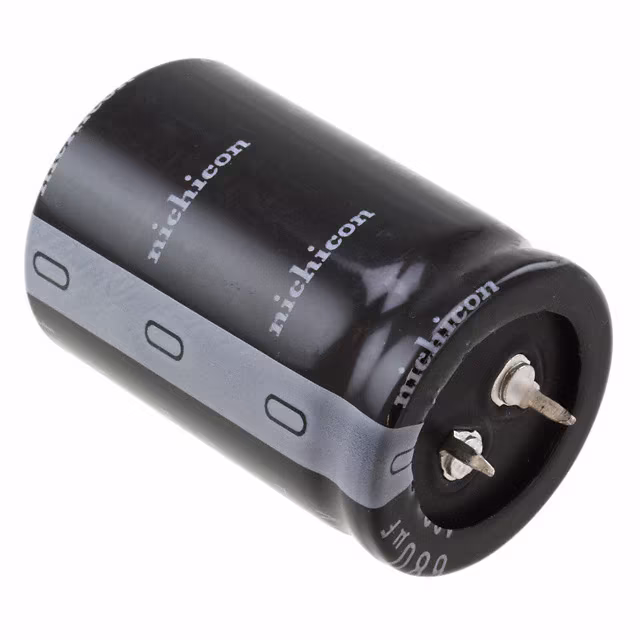

LLG2G681MELB45CAP ALUM 680UF 20% 400V SNAP TH |
140 |
|
Datasheet |
LLG | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.8467 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALA7DA681DE400CAP ALUM 680UF 20% 400V SNAP TH |
978 |
|
Datasheet |
ALA7D | Bulk | Active | 680 µF | ±20% | 400 V | 263.4mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.66 A @ 100 Hz | 2.91 A @ 10 kHz | 692.8 mOhms | - | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43640A2158M000CAP ALUM 1500UF 20% 200V SNAP TH |
482 |
|
Datasheet |
B43640 | Bulk | Active | 1500 µF | ±20% | 200 V | 65mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 100 Hz | - | 95 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
LGG2G681MELB50CAP ALUM 680UF 20% 400V SNAP TH |
180 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.574 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
188LBA200M2EHCAP ALUM 1800UF 20% 200V SNAP TH |
1,490 |
|
Datasheet |
LBA | Bulk | Active | 1800 µF | ±20% | 200 V | 138.16mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.38 A @ 120 Hz | 6.4386 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
381LX102M250A042CAP ALUM 1000UF 20% 250V SNAP TH |
129 |
|
Datasheet |
381LX | Bulk | Active | 1000 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205753471E3CAP ALUM 470UF 20% 250V SNAP TH |
796 |
|
Datasheet |
057 PSM-SI | Bulk | Active | 470 µF | ±20% | 250 V | 310mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.98 A @ 100 Hz | - | 185 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

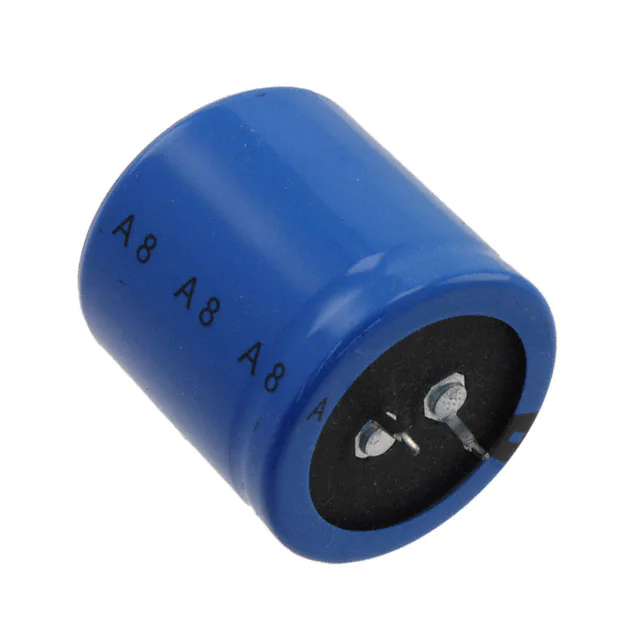

MAL215953102E3CAP ALUM 1000UF 20% 250V SNAP TH |
550 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 1000 µF | ±20% | 250 V | 140mOhm | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 3.108 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGG2G561MELB45CAP ALUM 560UF 20% 400V SNAP TH |
200 |
|
Datasheet |
LGG | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.63 A @ 120 Hz | 2.3309 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGR2G271MELC35CAP ALUM 270UF 20% 400V SNAP TH |
107 |
|
Datasheet |
LGR | Bulk | Active | 270 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LQS2V561MELC35CAP ALUM 560UF 20% 350V SNAP TH |
173 |
|
Datasheet |
LQS | Bulk | Active | 560 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
108LBB250M2DGCAP ALUM 1000UF 20% 250V SNAP TH |
451 |
|
Datasheet |
LBB | Bulk | Active | 1000 µF | ±20% | 250 V | 165.79mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.28 A @ 120 Hz | 6.2916 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQS2W331MELB40CAP ALUM 330UF 20% 450V SNAP TH |
107 |
|
Datasheet |
LQS | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.9734 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
